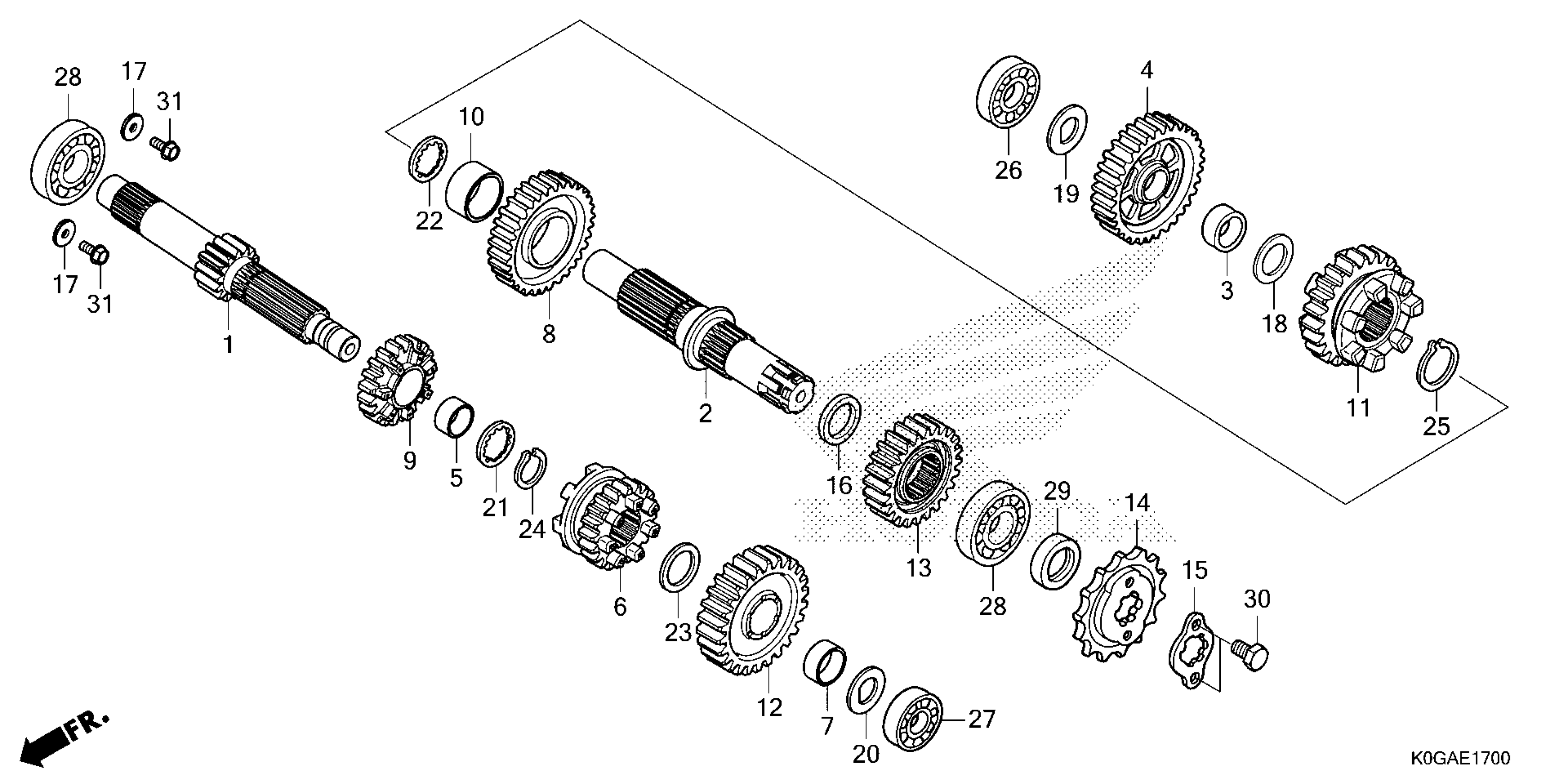

Honda C125AAC (23) MOTORCYCLE, THA, VIN# MLHJA585-P5100001 TO MLHJA585-P5199999 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (14T)

23211-K0G-T20

$15.77

2

COUNTERSHAFT (19T)

23221-K1M-T00

$14.15

3

BUSH (15MM)

23415-K0G-T20

$15.43

4

GEAR (35T)

23421-K0G-T20

$12.21

5

BUSH (17MM)

23422-K0G-T20

$6.03

6

GEAR (20T)

23431-K0G-T20

$16.67

7

BUSH (12MM)

23432-K1M-T00

$4.41

8

GEAR (31T)

23441-K0G-T20

$12.39

9

GEAR (20T)

23451-K0G-T20

$8.08

10

BUSH (20MM)

23452-K1M-T00

$6.33

11

GEAR (23T)

23461-K0G-T20

$13.07

12

GEAR (26T)

23471-K0G-T20

$11.93

13

GEAR (24T)

23481-K0G-T20

$11.72

14

SPROCKET, DRIVE (14T)

23800-K0G-900

$18.05

15

PLATE, FIXING

23802-GN5-910

$4.92

16

COLLAR, LOCK PLATE

23911-K1M-T00

$1.49

17

WASHER (6.2X19X2.3)

90407-KWW-740

$2.21

18

WASHER, THRUST (15MM)

90412-187-000

$2.05

19

WASHER, SPECIAL (15MM)

90412-K56-N00

$1.49

20

WASHER This part replaces 90452-KGH-900.

90452-KPH-C00

$2.67

20

WASHER

90452-KPH-C00

$2.67

21

WASHER, SPLINE (17X23X1.6)

90452-KRM-840

$4.25

22

WASHER, SPLINE (20MM)

90453-KRM-840

$1.49

23

WASHER, THRUST (12MM)

90459-107-000

$1.49

24

CIRCLIP (17MM)

90601-KRM-840

$2.74

25

SET-RING (20MM)

90605-KVS-900

$2.11

26

BEARING, RADIAL BALL (15X42X11)

91003-K1M-T01

$11.59

27

BEARING, RADIAL BALL (6001)

91013-KSS-901

$5.11

27

BEARING, RADIAL BALL (6001) This part replaces 91013-KZV-J01.

96100-60010-00

$17.13

27

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

28

BEARING, RADIAL BALL (6203)

91015-KSS-901

$6.08

28

BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00)

91015-KZV-J01

Unavailable

29

OIL SEAL (17X30X5) (NOK)

91204-KPH-902

$1.49

30

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

31

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
