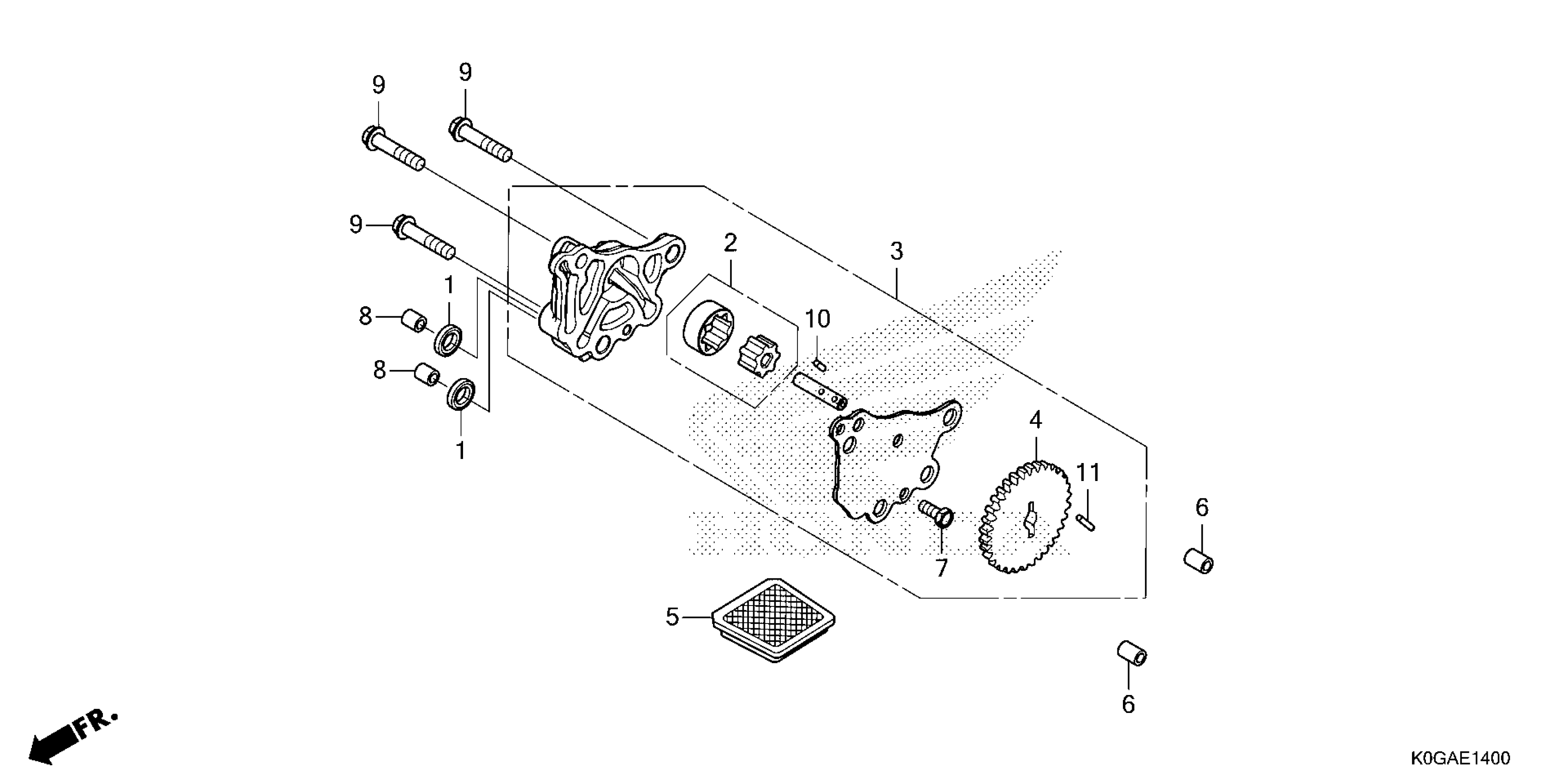

Honda C125AAC (23) MOTORCYCLE, THA, VIN# MLHJA585-P5100001 TO MLHJA585-P5199999 OIL PUMP Diagram

#

Description
Price

1

GASKET B, HEAD COVER

12396-KRM-840

$0.41

2

ROTOR SET, OIL PUMP

15021-K1M-T00

$6.00

3

OIL PUMP ASSY.

15100-K26-G00

$15.25

4

GEAR, OIL PUMP DRIVEN (25T)

15133-K1M-T00

$6.19

5

SCREEN, OIL FILTER

15421-KSP-910

$3.26

6

PIN, DOWEL (8X12)

90702-KFM-900

Unavailable

7

BOLT, HEX. (5X12)

93301-05012-0J

$0.86

8

PIN A, DOWEL (8X10)

94301-08100

$2.04

9

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

10

ROLLER (2.5X8.5)

96220-25085

$1.13

11

ROLLER (2.5X13.5)

96220-25135

$1.16
