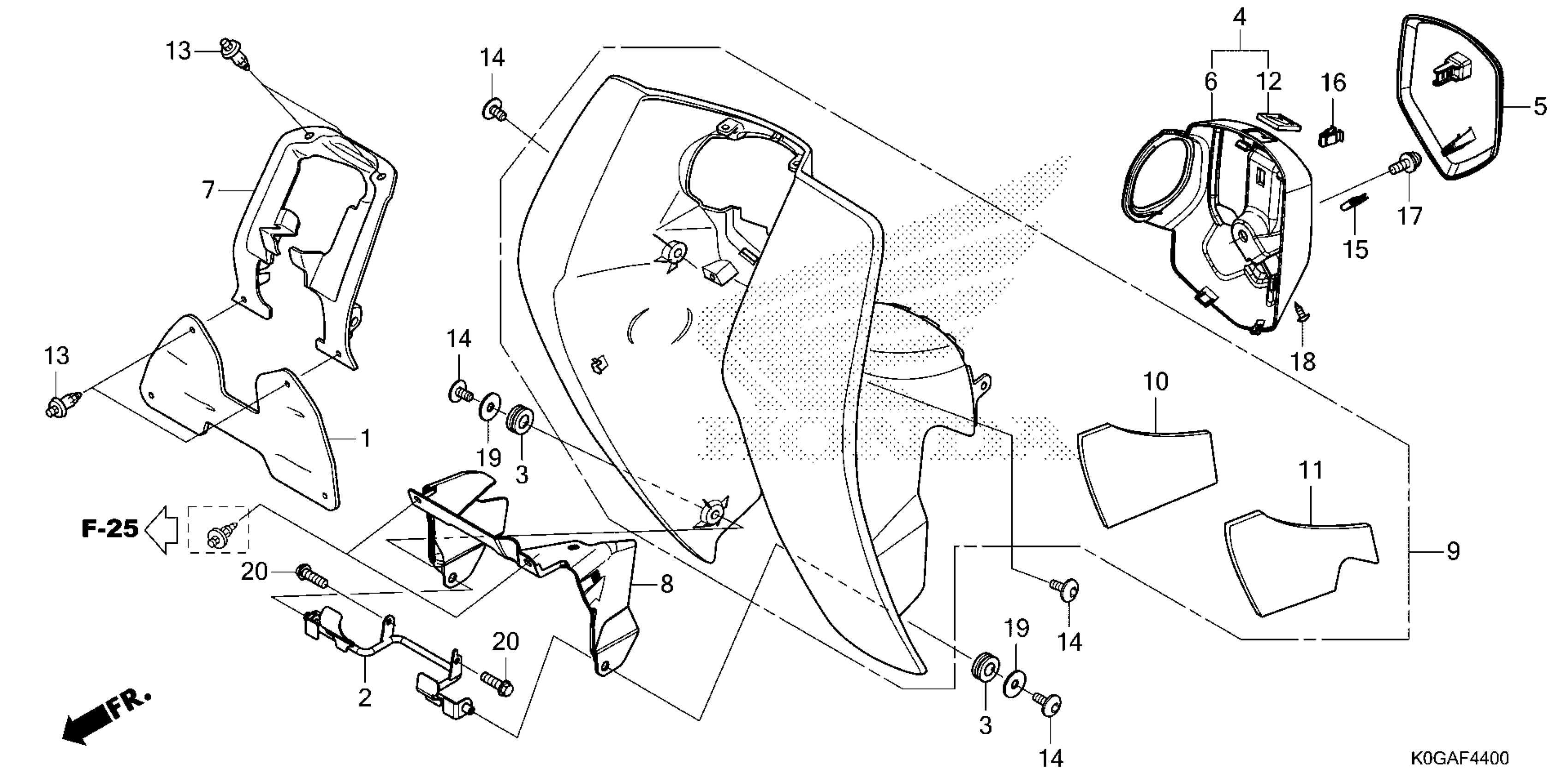

Honda C125AAC (23) MOTORCYCLE, THA, VIN# MLHJA585-P5100001 TO MLHJA585-P5199999 FRONT COVER@LEG SHIELD Diagram

RUBBER, AIR CLEANER GUARD

17270-K0G-900

$6.43

STAY, LEG SHIELD

64311-K0G-T20

$11.97

GROMMET, MAIN PIPE COVER

64312-KWW-640

$0.90

COVER, COMBINATION LOCK *PB414P* (PEARL RETRO BLUE)

81100-K0G-900ZA

$26.16

COVER, COMBINATION LOCK *NHC13P* (PEARL SUGARCANE BEIGE)

81100-K0G-900ZB

$25.74

COVER, COMBINATION & LOCK TOP

81134-K0G-900

$31.44

COVER *PB414P*

81135-K0G-900ZA

$22.40

COVER *NHC13P*

81135-K0G-900ZB

$22.09

INNER, LEG SHIELD

81136-K0G-900

$5.51

SHIELD, LEG (INNER)

81141-K0G-T20

$11.01

SET ILLUST *PB414P*

83200-K0G-T20ZA

$308.19

SET ILLUST *NHC13P*

83200-K0G-T20ZC

$307.41

MAT, R. LEG SHIELD

83541-K0G-900

$3.60

MAT, L. LEG SHIELD

83641-K0G-900

$3.60

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

SCREW, PAN (6X10)

90132-KPP-T00

$0.79

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

CLIP, SNAP FITTING (PO)

90666-K59-A11

Unavailable

SCREW-WASHER (5X12)

93894-05012-07

$1.13

SCREW, TAPPING (4X12)

93903-24380

Unavailable

WASHER, PLAIN (6MM)

94103-06000

Unavailable

BOLT, FLANGE (6X16)

96001-06016-00

$0.97
