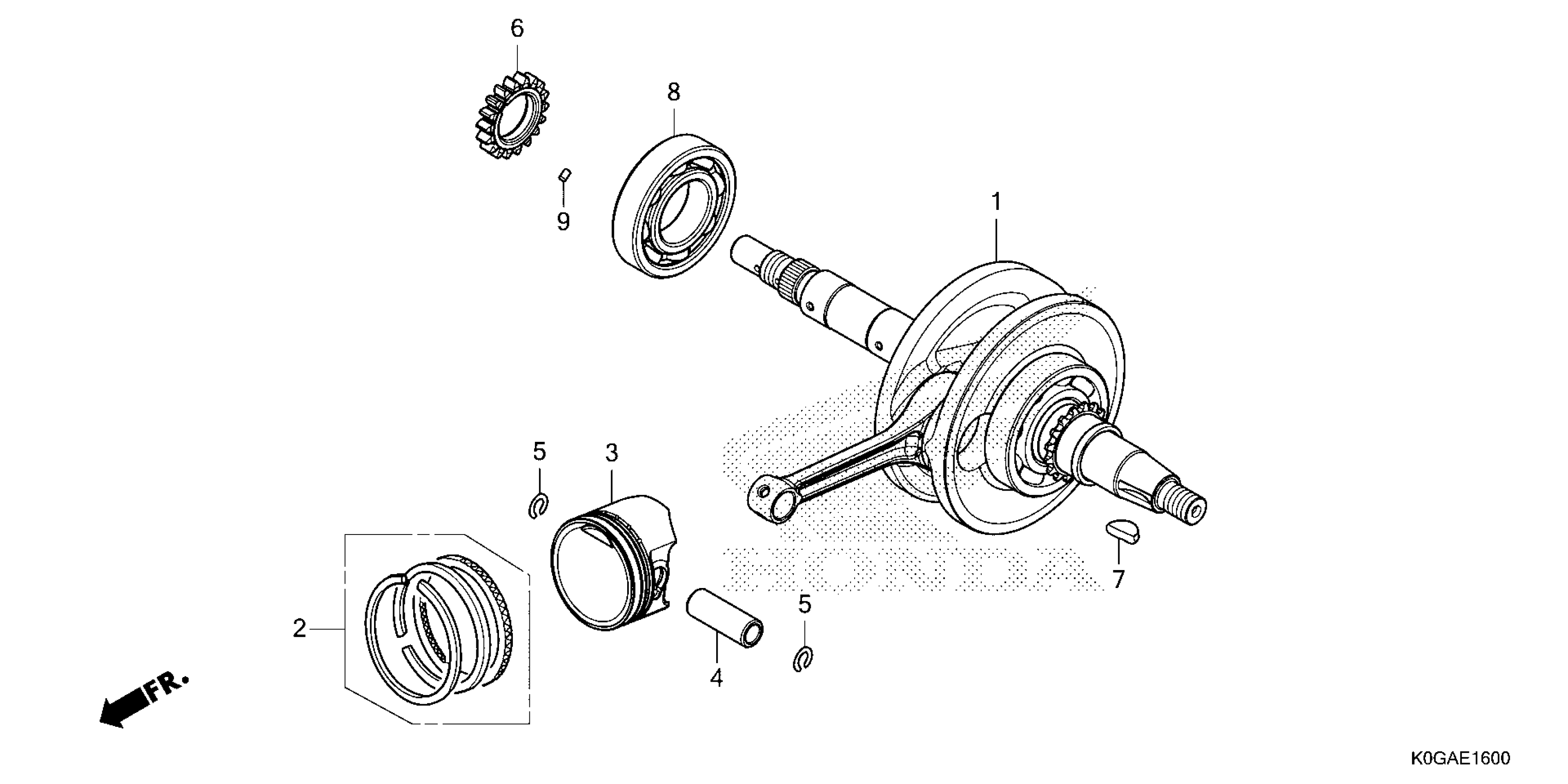

Honda C125AAC (23) MOTORCYCLE, THA, VIN# MLHJA585-P5100001 TO MLHJA585-P5199999 CRANKSHAFT@PISTON Diagram

#

Description

Price

1

CRANKSHAFT

13000-K1M-T00

$103.36

2

RING SET (STD)

13011-K0L-D00

$6.44

2

RING SET, PISTON (STD) (TPR)

13011-K1J-D00

$5.98

3

PISTON (STD)

13101-K26-G00

$26.12

4

PIN, PISTON

13111-K0J-N00

$9.60

5

CLIP, PISTON PIN (12MM)

13115-K1M-T00

$1.61

6

GEAR, OIL PUMP DRIVE (18T)

15341-K1M-T01

$9.28

7

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

7

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

7

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

8

BEARING, R. (62/28)

91001-K1M-T01

$18.44

8

BEARING, R. RADIAL BALL SPECIAL (62/28) (NTN)

91001-K1M-T02

$15.30

9

PIN, DOWEL (3X5)

94303-03050

$2.25
