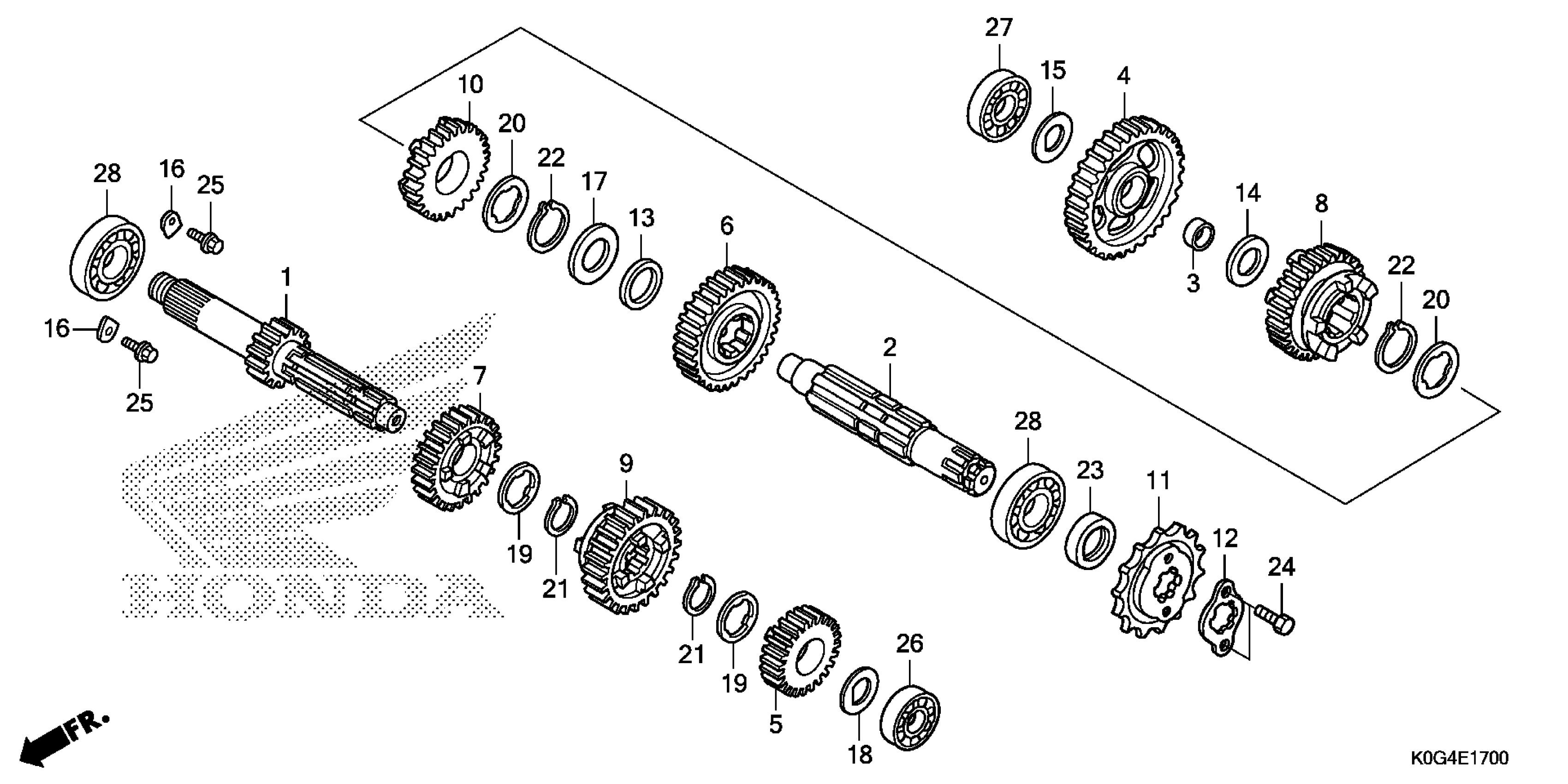

Honda C125AAC (21) MOTORCYCLE, THA, VIN# MLHJA485-M5200001 TRANSMISSION Diagram

MAINSHAFT (14T)

23211-KPH-900

$26.00

COUNTERSHAFT

23221-KPH-900

$24.36

BUSH (15MM)

23415-KPH-900

$5.34

GEAR, COUNTERSHAFT FIRST (35T)

23421-KPH-900

$17.43

GEAR, MAINSHAFT SECOND (20T)

23431-KPH-700

$22.03

GEAR, COUNTERSHAFT SECOND (31T)

23441-KPH-900

$11.79

GEAR, MAINSHAFT THIRD (20T)

23451-KPH-700

$23.33

GEAR, COUNTERSHAFT THIRD (23T)

23461-KPH-900

$21.72

GEAR, MAINSHAFT FOURTH (26T)

23471-KPH-700

$17.07

GEAR, COUNTERSHAFT FOURTH (24T)

23481-KPH-700

$26.51

SPROCKET, DRIVE (14T)

23800-K0G-900

$18.05

PLATE, FIXING

23802-GN5-910

$4.92

COLLAR, LOCK PLATE

23911-KPH-900

$1.49

WASHER, THRUST (15MM)

90412-187-000

$2.05

WASHER, SPECIAL (12X23)

90412-KPH-900

$1.49

PLATE, BEARING HOLDER

90441-KRM-840

$1.49

WASHER, THRUST (20MM)

90452-413-000

$2.53

WASHER This part replaces 90452-KGH-900.

90452-KPH-C00

$2.67

WASHER, SPLINE (17MM)

90461-115-000

$2.66

WASHER, SPLINE (20X1.2)

90461-GB4-770

$3.39

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

SET-RING (20MM)

90605-200-000

$2.92

OIL SEAL (17X30X5) (NOK)

91204-KPH-902

$1.49

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
