Description

Price

1

CASE, HALF DRIVE CHAIN (UPPER) NHA40M (MAT KRYPTON SILVER METALLIC)

40510-K0G-900ZA

$61.03

2

CASE, HALF DRIVE CHAIN (LOWER) NHA40M (MAT KRYPTON SILVER METALLIC)

40520-K0G-900ZA

$58.00

3

CHAIN, DRIVE (RK420EL-106RJ) (RK EXCEL)

40530-K0G-901

$11.84

4

MASTER LINK SET (RK EXCEL)

40531-K0G-901

$1.50

5

CAP, CHAIN CASE PEEP HOLE

40545-001-000

$3.50

6

CAP, SWINGARM END

40546-K0G-900

$9.06

7

ARM, RR. BRAKE STOPPER

43431-K0G-900

$14.35

8

BOLT, SWINGARM PIVOT

52101-K0G-900

$5.99

9

SLIDER, CHAIN

52170-K0G-900

$17.06

10

SWINGARM SUB-ASSY., RR. R376P (PEARL NEBULA RED)

52200-K0G-900ZA

$160.79

11

SCREW, PAN (6X6)

90005-KYJ-900

$0.94

12

WASHER, PIVOT BOLT

90122-KWB-600

$0.65

13

BOLT A, STOPPER ARM

90126-KWB-600

$1.13

13

BOLT A, BRAKE STOPPER

90127-KWB-600

$1.07

14

NUT, U (12MM)

90306-KWN-701

$3.87

15

NUT, HEX. (8MM)

94001-08000-0S

$1.21

16

NUT, HEX. (12MM) (NOT AVAILABLE)

94031-12000

$0.84

17

WASHER, PLAIN (8MM)

94101-08000

$0.76

18

WASHER, PLAIN (12MM)

94101-12000

$1.13

19

WASHER, SPRING (10MM)

94111-10000

$1.24

20

PIN, COTTER (2.0X15)

94201-20150

$0.96

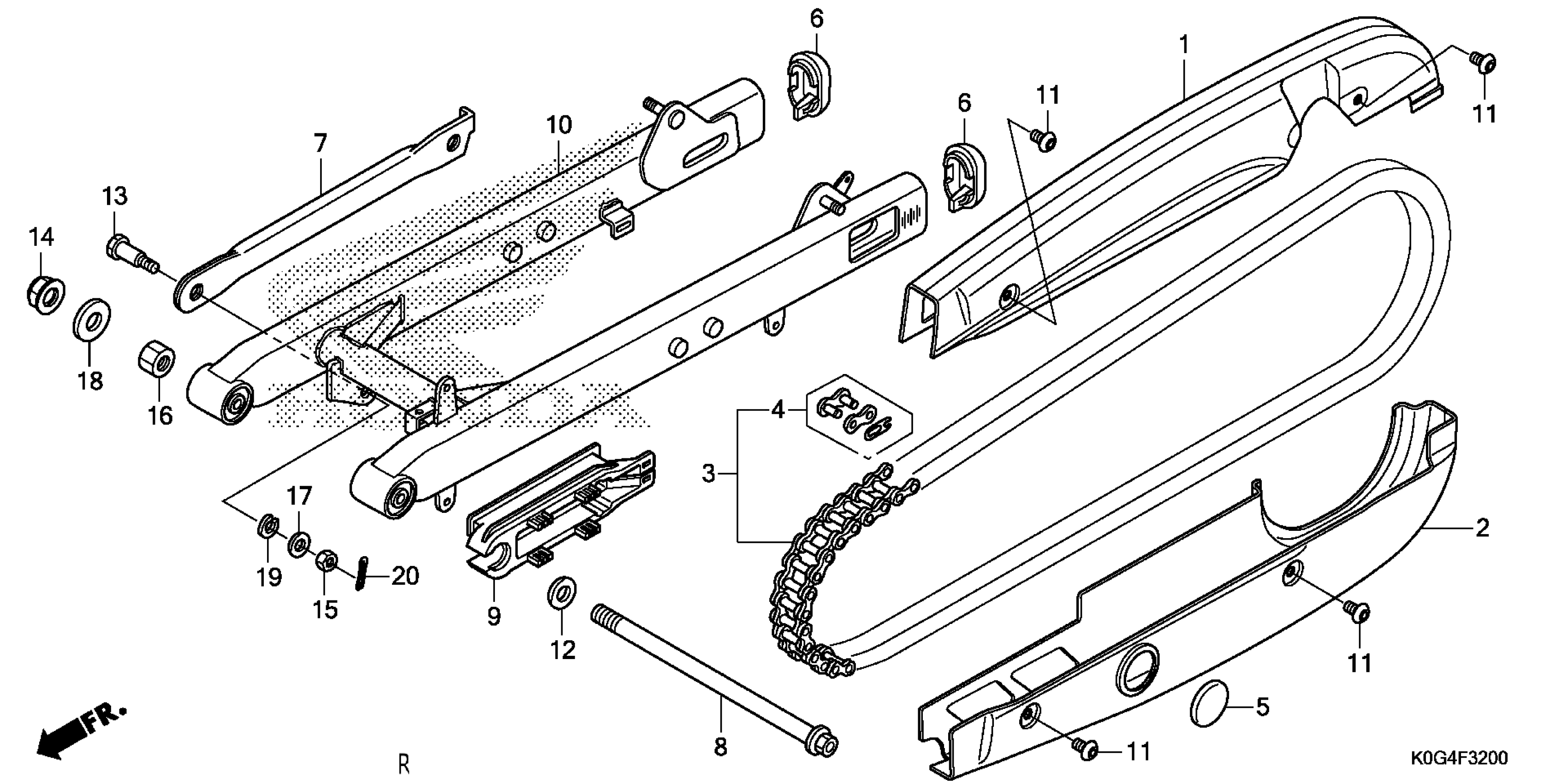

Honda C125AAC (21) MOTORCYCLE, THA, VIN# MLHJA485-M5200001 SWINGARM@CHAIN CASE Diagram

CASE, HALF DRIVE CHAIN (UPPER) *NHA40M* (MAT KRYPTON SILVER METALLIC)

CASE, HALF DRIVE CHAIN (LOWER) *NHA40M* (MAT KRYPTON SILVER METALLIC)
