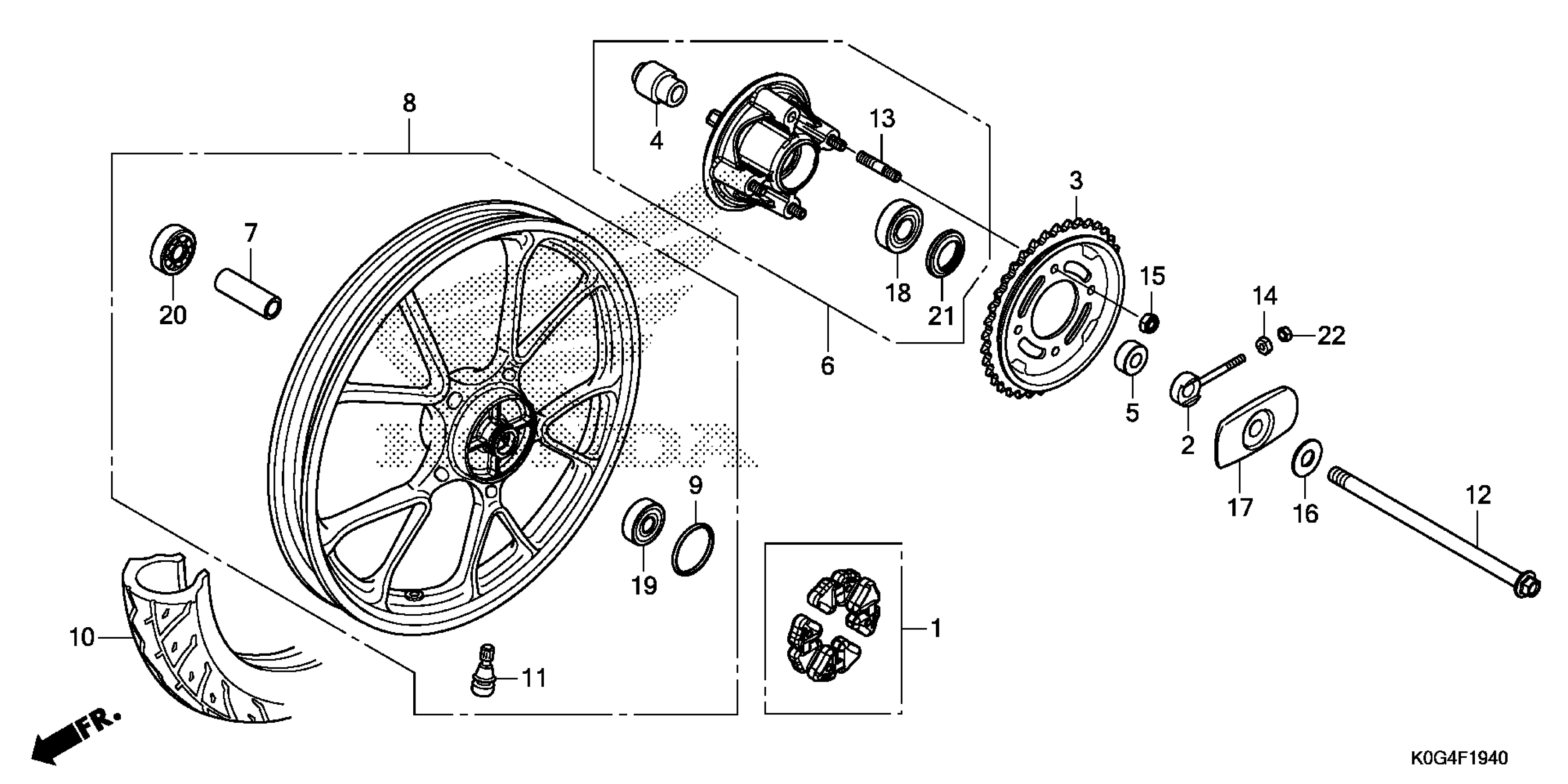

Honda C125AAC (21) MOTORCYCLE, THA, VIN# MLHJA485-M5200001 REAR WHEEL Diagram

DAMPER SET, WHEEL

06410-KWB-600

$9.72

ADJUSTER, CHAIN

40543-K0G-900

$9.72

SPROCKET, FINAL DRIVEN (36T)

41200-K0G-900

$29.49

SLEEVE, RR. WHEEL

42303-KWW-B60

$6.34

COLLAR, RR. WHEEL SIDE

42304-K0G-900

$8.39

FLANGE SUB-ASSY., FINAL DRIVEN

42615-K58-N40

$79.80

COLLAR, RR. AXLE DISTANCE

42620-KFL-850

$4.92

WHEEL SUB-ASSY., RR. *NHC14M* (METAMORPHIC GRAY METALLIC)

42650-K0G-900ZA

$346.30

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

TIRE, RR. (80/90-17M/C 50P) (IRC) This part replaces 42711-K0G-902.

42711-K0G-903

$54.62

TIRE, RR. (80/90-17M/C 50P) (IRC)

42711-K0G-903

$54.62

VALVE, RIM (IRC)

42753-GM9-743

$8.68

AXLE, FR. WHEEL (FOR RR.)

44301-K01-900

$11.75

BOLT, STUD (8X18)

90128-KWB-600

$1.49

NUT, SPECIAL (6MM)

90302-KZV-J00

$1.49

NUT, U (8MM) (FUJI SEIMITSU)

90309-KPH-971

$1.69

WASHER, RR. AXLE

90501-K0G-900

$1.61

PLATE, SWINGARM SIDE

90559-K0G-900

$12.44

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-K35-V03

$19.23

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V04.

91051-K35-V03

$19.23

BEARING, RADIAL BALL (6201U L) (NSK)

91052-K24-901

$4.18

BEARING,BALL RADI

91052-K24-904

$3.99

BEARING, RADIAL BALL (6301U L) (FAG)

91053-K03-H02

$6.45

BEARING, RADIAL BALL (6301U L) (NSK)

91055-KVS-F02

$9.00

DUST SEAL (27X40X4.5) (NOK)

91251-KGH-902

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49
