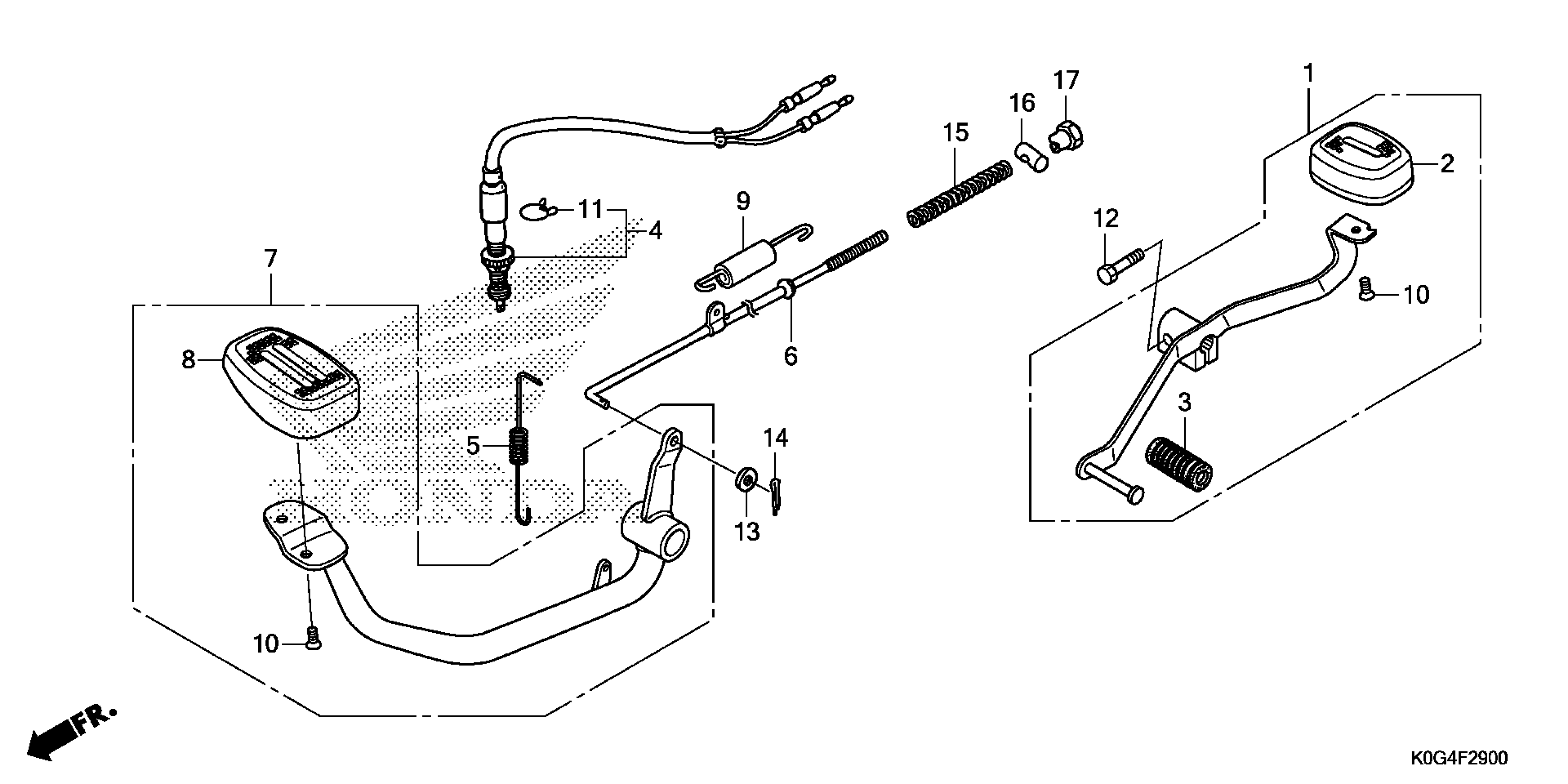

Honda C125AAC (21) MOTORCYCLE, THA, VIN# MLHJA485-M5200001 PEDAL Diagram

PEDAL ASSY., GEARSHIFT

24700-K0G-960

$202.85

CAP, RR. GEARSHIFT PEDAL

24704-K0G-900

$24.47

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

SWITCH ASSY., RR. STOP

35350-KWW-642

$12.84

SPRING, STOP SWITCH

35357-K0G-900

$2.13

ROD, RR. BRAKE

43451-K0G-900

$5.41

PEDAL ASSY., BRAKE

46000-K0G-900

$50.75

CAP, BRAKE PEDAL

46501-K0G-900

$24.26

SPRING ASSY., RR. BRAKE RETURN

46513-KBP-900

$2.91

SCREW, U-LOCK FLAT (6X12)

90164-KZL-A00

$1.65

CLIP, SWITCH COVER

90601-KAF-003

$2.47

BOLT, HEX. (6X20) BOLT, FLANGE (6X20)

92101-06020-0A

$0.96

WASHER, PLAIN (5MM)

94101-05000

$0.91

PIN, COTTER (2.0X15)

94201-20150

$0.96

SPRING A, BRAKE ROD

95014-73100

$1.19

JOINT B, BRAKE ARM

95015-32001

$0.87

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.78
