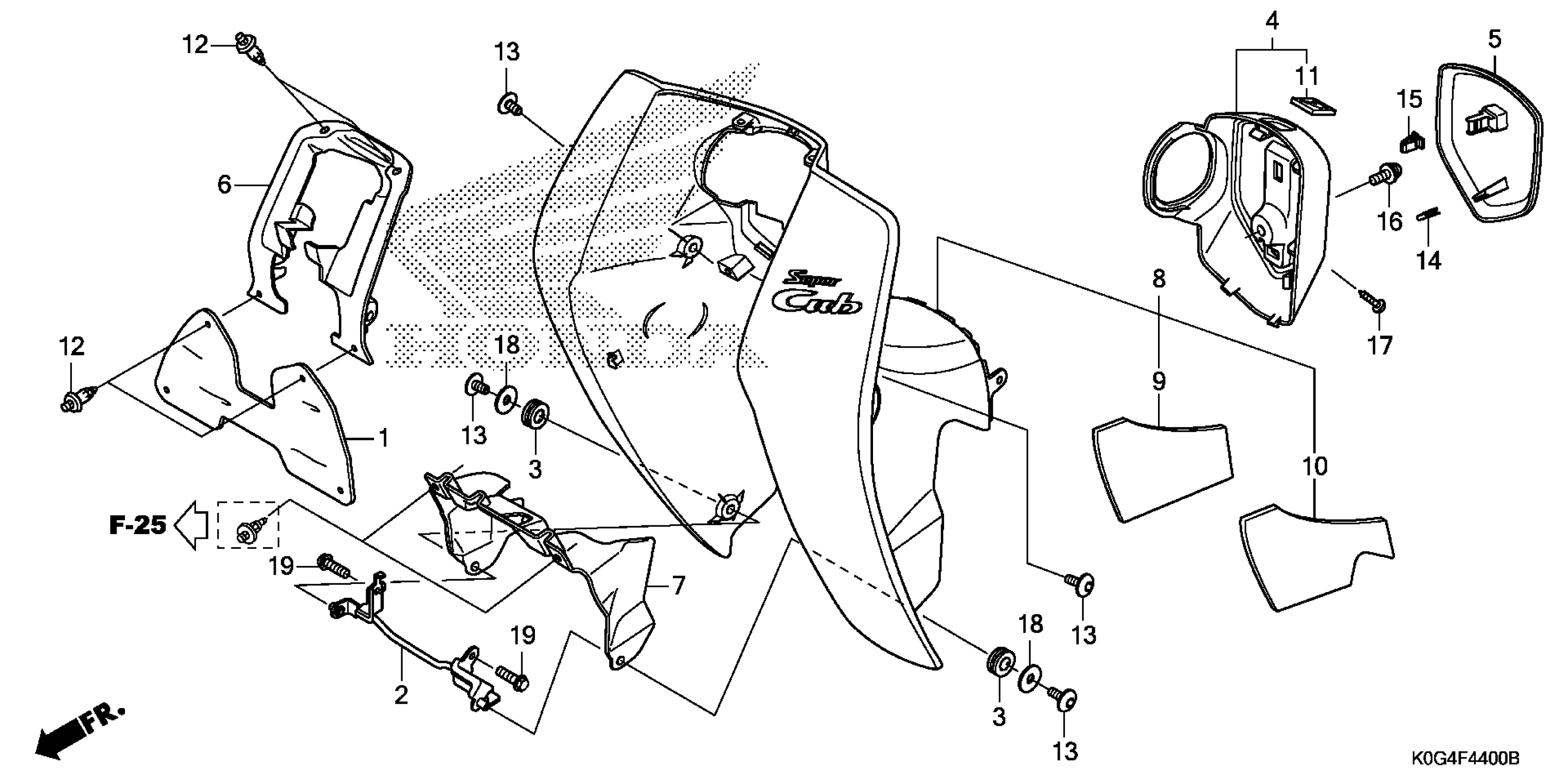

Honda C125AAC (21) MOTORCYCLE, THA, VIN# MLHJA485-M5200001 LEG SHIELD Diagram

RUBBER, AIR CLEANER GUARD

17270-K0G-900

$7.16

STAY, LEG SHIELD

64311-K0G-900

$18.93

GROMMET, MAIN PIPE COVER

64312-KWW-640

$1.49

COVER, COMBINATION LOCK *NHC13P* (PEARL SUGARCANE BEIGE)

81100-K0G-900ZB

$28.69

COVER, COMBINATION & LOCK TOP

81134-K0G-900

$35.05

INNER, LEG SHIELD

81136-K0G-900

$6.15

SHIELD, LEG (INNER)

81141-K0G-900

$8.48

SHIELD SET, LEG *NHC13P* (WL) (PEARL SUGARCANE BEIGE)

83200-K0G-900ZB

$310.93

MAT, R. LEG SHIELD

83541-K0G-900

$4.02

MAT, L. LEG SHIELD

83641-K0G-900

$4.02

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

SCREW, PAN (6X10)

90132-KPP-T00

$1.49

NUT, SPRING (4MM)

90302-KWW-A00

$1.49

CLIP, SNAP FITTING (PO)

90666-K59-A11

$1.49

SCREW-WASHER (5X12)

93894-05012-07

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
