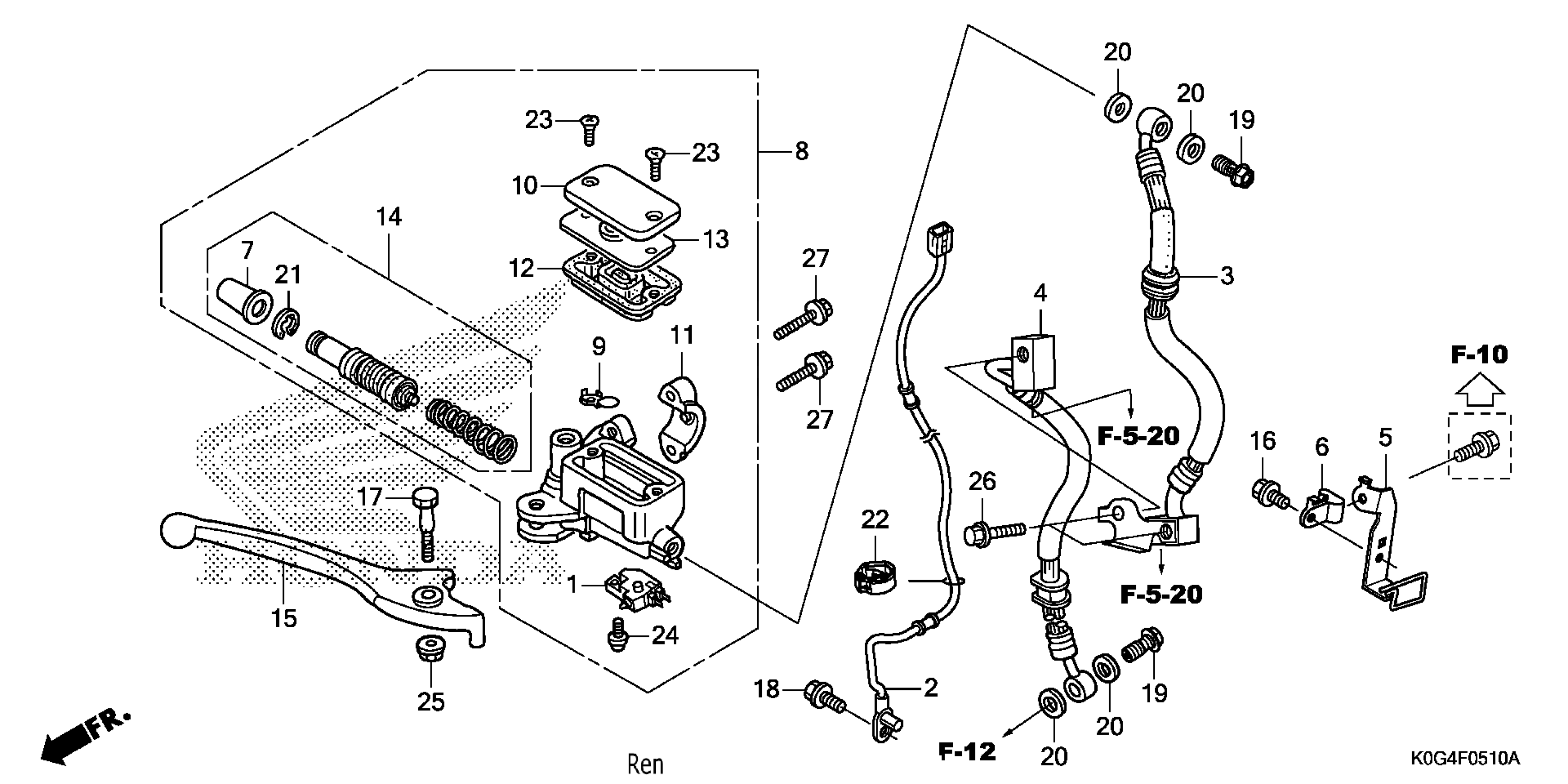

Honda C125AAC (21) MOTORCYCLE, THA, VIN# MLHJA485-M5200001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

SENSOR, FR. WHEEL SPEED

38520-K0G-951

$35.13

HOSE A, FR. BRAKE

45125-K0G-951

$51.62

HOSE B, FR. BRAKE

45128-K0G-951

$46.23

STAY A, FR. BRAKE HOSE

45156-K0G-950

$12.05

CLAMP, FR. BRAKE HOSE

45157-K0G-950

$34.74

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-K0G-901

$122.39

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

HOLDER, MASTER CYLINDER

45517-K0G-901

$21.56

DIAPHRAGM

45520-GE2-006

$9.58

PLATE, DIAPHRAGM

45521-K21-901

$2.34

MASTER CYLINDER SET, FR. (NISSIN)

45530-KVS-M21

$20.62

LEVER, R. HANDLEBAR (COO)

53175-K26-305

$16.98

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

$16.98

BOLT, FLANGE (6X10)

90106-MBZ-G00

$1.49

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$1.49

BOLT, FLANGE (6X14) (NOT AVAILABLE)

90117-KZZ-J80

$1.49

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18.8)

90651-K03-M61

$1.49

CLAMP, HARNESS

90690-MEF-800

$1.49

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
