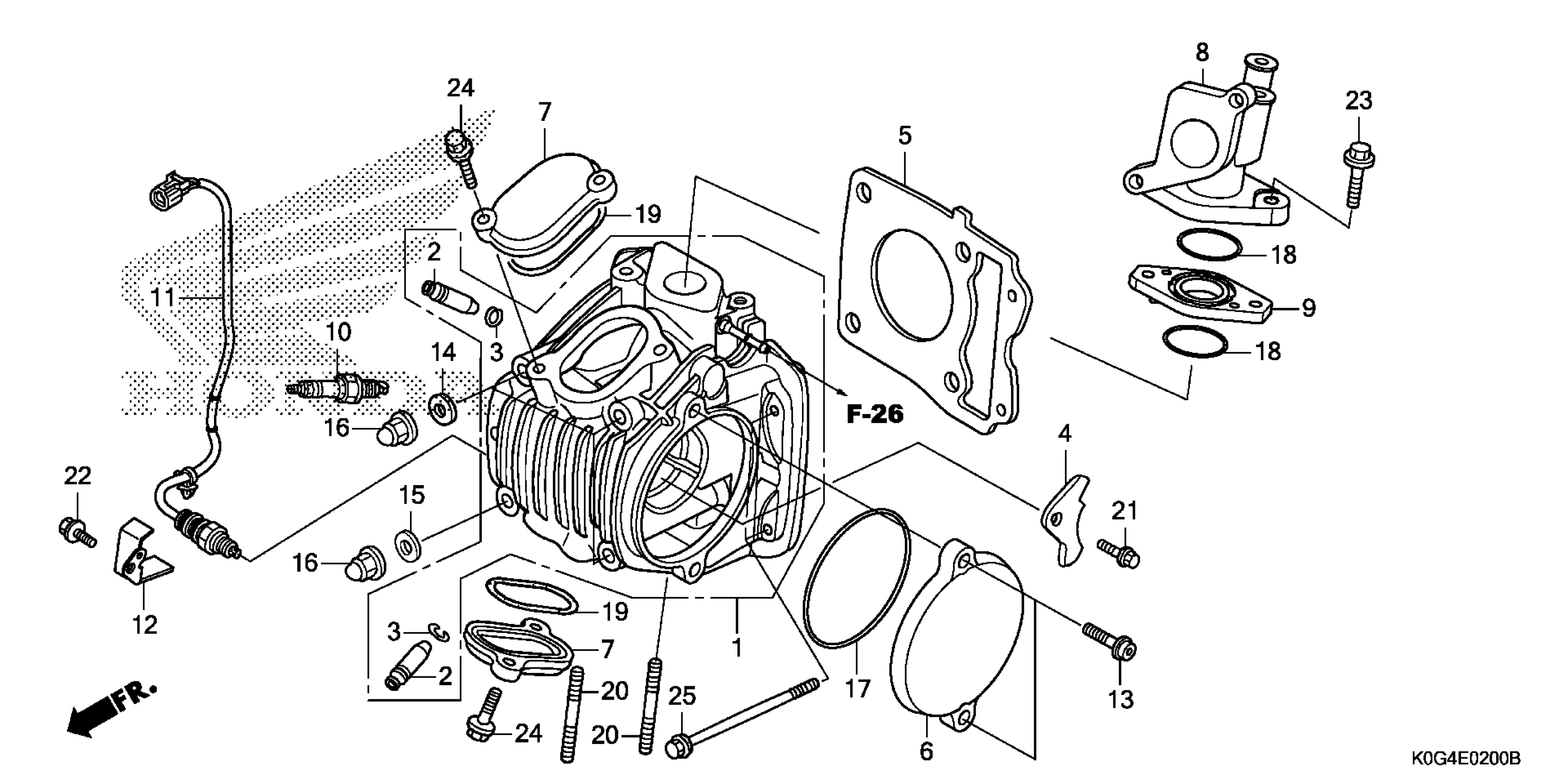

Honda C125AAC (21) MOTORCYCLE, THA, VIN# MLHJA485-M5200001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-K0G-910

$123.25

2

GUIDE, VALVE (OVER SIZE)

12204-KYZ-P00

$20.80

3

CLIP, VALVE GUIDE

12206-KPL-900

$3.52

4

PLATE, STOPPER

12211-KPH-900

$1.49

5

GASKET, CYLINDER HEAD

12251-KYZ-901

$4.77

6

COVER, L. CYLINDER HEAD SIDE

12341-K0F-T00

$52.69

7

COVER, TAPPET ADJUSTING HOLE

12361-K0F-T00

$26.43

8

PIPE, INLET

17111-K0G-900

$134.38

9

INSULATOR, IN. PIPE

17119-K0G-900

$7.51

10

SPARK PLUG (CPR6EA-9) (NGK)

31916-KPH-901

$10.49

10

SPARK PLUG (U20EPR9) (DENSO) | (Optional). This part replaces 31917-KPH-900.

31926-KPH-901

$4.33

10

SPARK PLUG (U20EPR9) (DENSO) | (Optional).

31926-KPH-901

$4.33

10

SPARK PLUG (U22EPR9) (DENSO) | (Optional).

31927-KPH-901

$4.33

11

SENSOR, OXYGEN

36532-K0G-901

$46.10

12

GUARD, OXYGEN SENSOR

36535-K41-N00

$1.57

13

BOLT, FLANGE SOCKET (6X22)

90001-MGZ-J00

$1.49

14

WASHER, SEALING (8MM)

90441-286-000

$1.90

15

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

16

NUT, CAP (8MM)

90443-KTM-970

$1.49

17

O-RING (74.5X2.5) (NOK)

91301-PH8-005

$10.25

18

O-RING (29X2.4)

91304-KPH-700

$1.75

19

O-RING, TAPPET ADJUSTING HOLE CAP

91372-KPH-900

$1.49

20

BOLT 2, STUD (8X28)

92900-08028-0E

$2.34

21

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

22

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

23

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

24

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

25

BOLT, FLANGE (6X90)

96001-06090-00

$1.95
