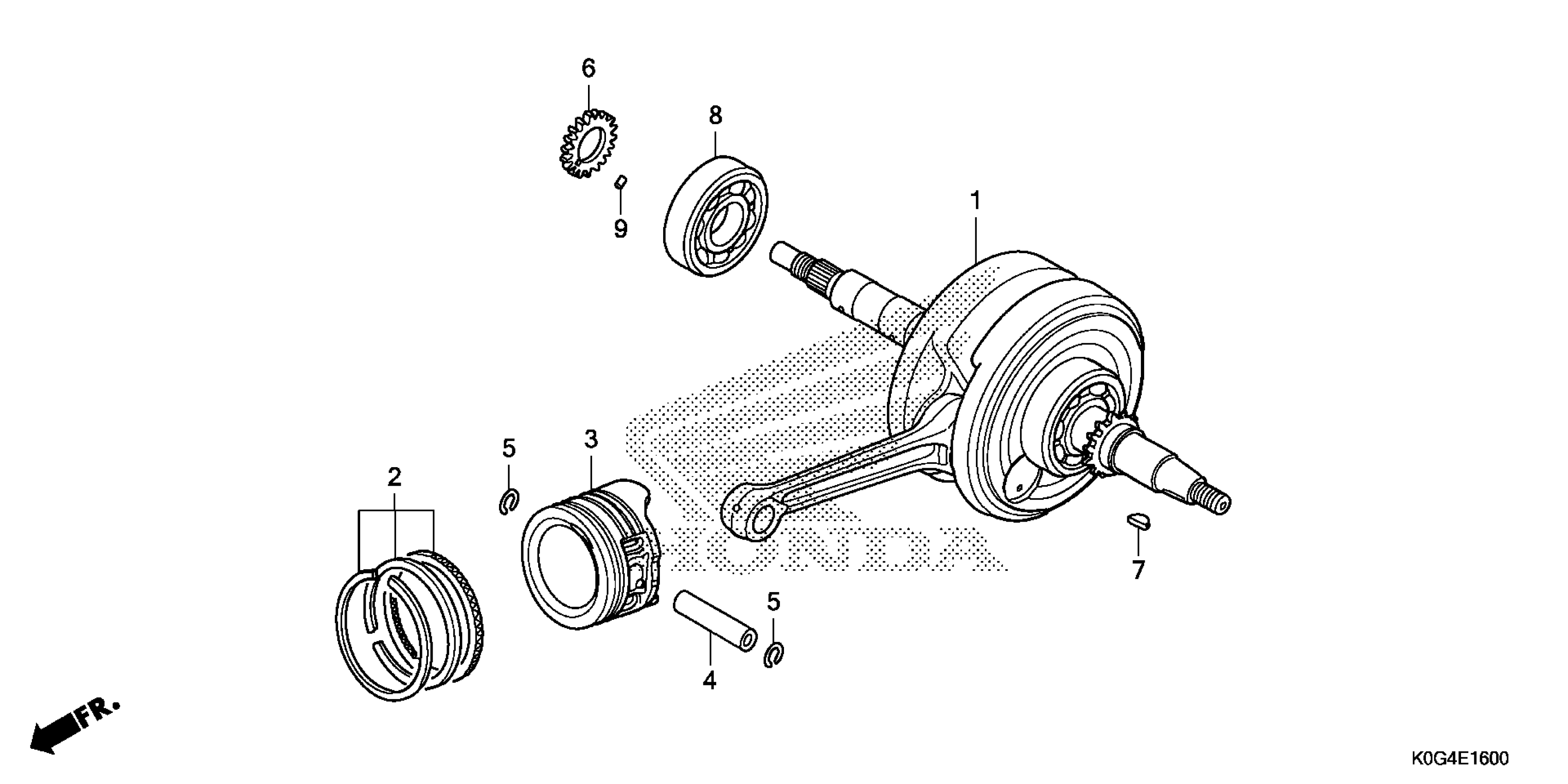

Honda C125AAC (21) MOTORCYCLE, THA, VIN# MLHJA485-M5200001 CRANKSHAFT@PISTON Diagram

CRANKSHAFT

13000-K0G-900

$139.98

RING SET, PISTON (STD) (RIKEN)

13012-KYZ-900

$12.60

RING SET, PISTON (0.25) (RIKEN) | (Optional).

13022-KYZ-900

$12.60

RING SET, PISTON (0.50) (RIKEN) | (Optional).

13032-KYZ-900

$12.04

RING SET, PISTON (0.75) (RIKEN) | (Optional).

13042-KYZ-900

$12.60

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13052-KYZ-900

$12.60

PISTON

13101-KYZ-900

$41.22

PISTON (0.25) | (Optional).

13102-KYZ-901

Unavailable

PISTON (0.50) | (Optional).

13103-KYZ-901

Unavailable

PISTON (0.75) | (Optional).

13104-KYZ-901

Unavailable

PISTON (1.00) | (Optional).

13105-KYZ-901

$41.89

PIN, PISTON

13111-GB0-910

$11.67

PIN, PISTON This part replaces 13111-087-000.

13111-GB0-910

$11.67

CLIP, PISTON PIN (13MM)

13115-GN5-910

$1.49

GEAR, OIL PUMP DRIVE (19T)

15341-KPH-900

$9.74

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

BEARING, SPECIAL RADIAL BALL (63/22)

91001-K0G-901

$24.33

PIN, DOWEL (3X5)

94303-03050

$2.25
