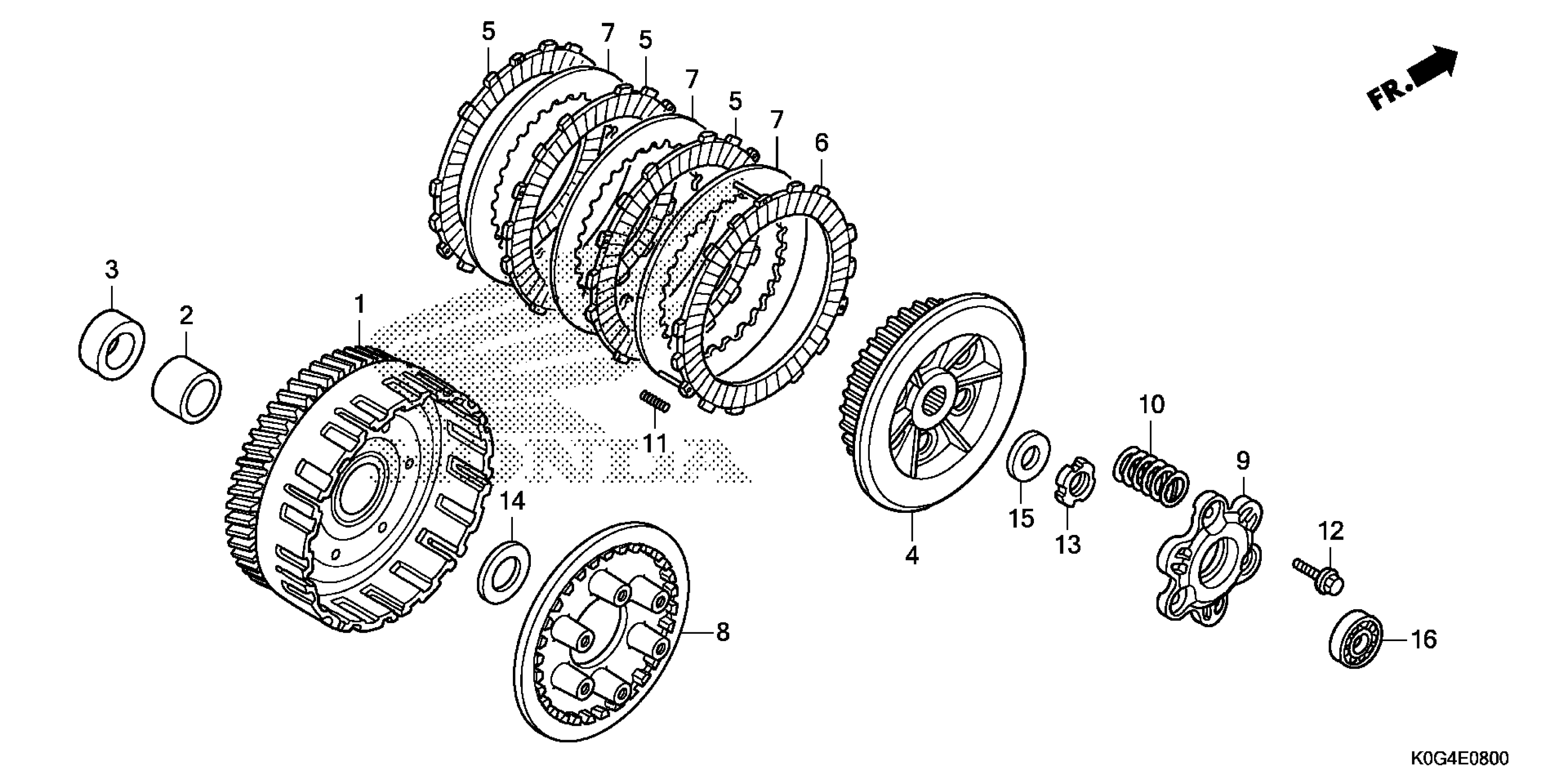

Honda C125AAC (21) MOTORCYCLE, THA, VIN# MLHJA485-M5200001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER (74T)

22100-K0G-901

$197.60

2

GUIDE, CLUTCH (OUTER)

22115-KPH-900

$1.78

3

COLLAR, CLUTCH (OUTER)

22116-KPH-900

$2.01

4

CENTER, CLUTCH

22121-KPH-900

$16.66

5

DISK, CLUTCH FRICTION

22201-KYZ-901

$6.02

6

DISK, CLUTCH FRICTION

22208-KYZ-901

$7.62

7

PLATE, CLUTCH

22321-KE8-000

$11.67

8

PLATE, CLUTCH PRESSURE

22350-KPH-900

$17.70

9

PLATE, CLUTCH LIFTER

22361-KTM-950

$8.69

10

SPRING, CLUTCH

22401-KYZ-901

$1.24

11

SPRING, DRAG

22402-KYZ-901

$1.99

12

BOLT, SPECIAL FLANGE (6X20)

90050-KPH-900

$0.94

13

NUT, LOCK (14MM) This part replaces 90231-KM7-700.

90231-KM7-701

$3.62

13

NUT, LOCK (14MM)

90231-KM7-701

$3.62

14

WASHER, THRUST (17MM)

90403-KPH-900

$0.96

15

WASHER (14.2X26X3)

90432-KPT-A00

$1.66

16

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$14.15

16

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$14.15

16

BEARING, RADIAL BALL (16003)

91011-KK6-013

$14.15
