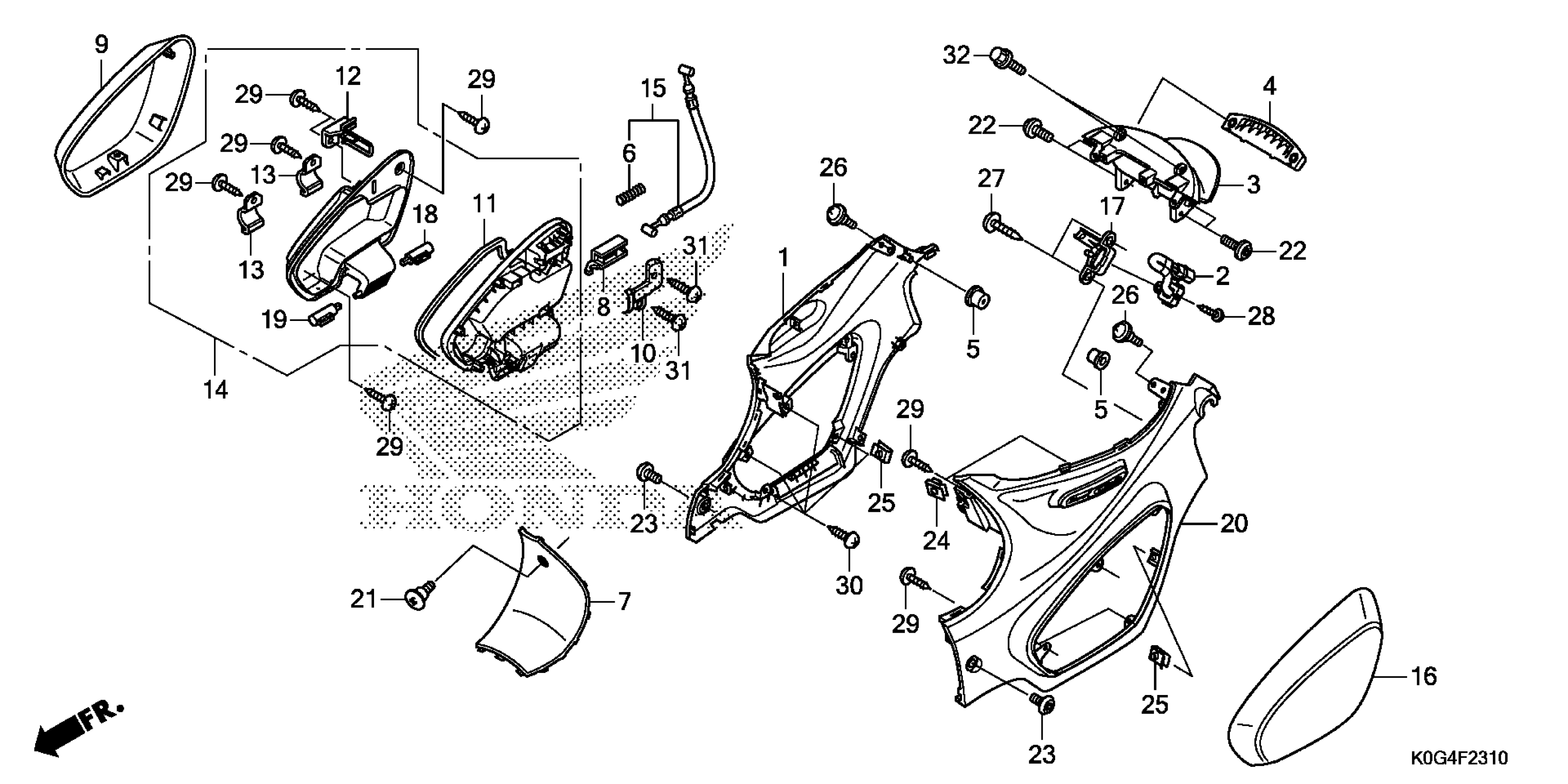

Honda C125AAC (21) MOTORCYCLE, THA, VIN# MLHJA485-M5200001 BODY COVER Diagram

#

Description
Price

1

COVER, R. BODY *R376P* (WL) (PEARL NEBULA RED)

04801-K0G-900ZA

$125.15

2

SWITCH ASSY., SEAT OPENER

35380-K0G-901

$94.20

3

GRIP, MAIN STAND *R376P* (PEARL NEBULA RED)

50410-K0G-900ZA

$57.62

4

GRIP, MAIN STAND (LOWER) *R376P* (PEARL NEBULA RED)

50420-K0G-900ZA

$13.00

5

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

6

SPRING, CABLE RETURN

77237-KZR-700

$3.36

7

COVER, CENTER *R376P* (PEARL NEBULA RED)

80151-K0G-900ZA

$39.59

8

SLIDER, LID HINGE

80181-K0G-900

$3.25

9

COVER, R. SIDE *NHC13P* (PEARL SUGARCANE BEIGE)

83404-K0G-900ZB

$27.89

10

COVER, SLIDER

83408-K0G-900

$6.15

11

RUBBER, SEAL

83409-K0G-900

$3.67

12

BAR, SIDE COVER

83410-K0G-900

$4.11

13

CLAMP, LID HINGE

83411-K0G-900

$1.49

14

LID ASSY., R. SIDE

83420-K0G-900

$88.69

15

CABLE, SIDE COVER

83460-K0G-901

$5.46

16

COVER, L. SIDE *NHC13P* (PEARL SUGARCANE BEIGE)

83504-K0G-900ZB

$25.41

17

STAY, SEAT OPENER

83506-K0G-900

$4.89

18

DAMPER, L. LID

83534-K04-931

$4.41

19

DAMPER, R. LID

83534-K35-V01

$2.80

20

COVER SET, L. BODY *R376P* (WL) (PEARL NEBULA RED)

83650-K0G-900ZA

$113.33

21

SCREW, SIDE COVER

90103-K88-L20

$1.49

22

BOLT, SOCKET SPECIAL (6X14)

90105-K0G-900

$1.49

23

SCREW, PAN (6X10)

90132-KPP-T00

$1.49

24

NUT, CLIP (6MM)

90305-GK8-000

$2.39

25

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

26

SCREW, PAN (5X11.5)

91509-GE2-760

$2.38

27

SCREW, TAPPING (5X16)

93903-25310

$1.49

28

SCREW, TAPPING (3X10)

93903-32210

$1.49

29

SCREW, TAPPING (4X12)

93903-34380

$2.18

30

SCREW, TAPPING (5X12)

93903-35210

$1.49

31

SCREW, TAPPING (5X16)

93903-35310

$1.49

32

BOLT, FLANGE (6X16)

96001-06016-02

$1.49
