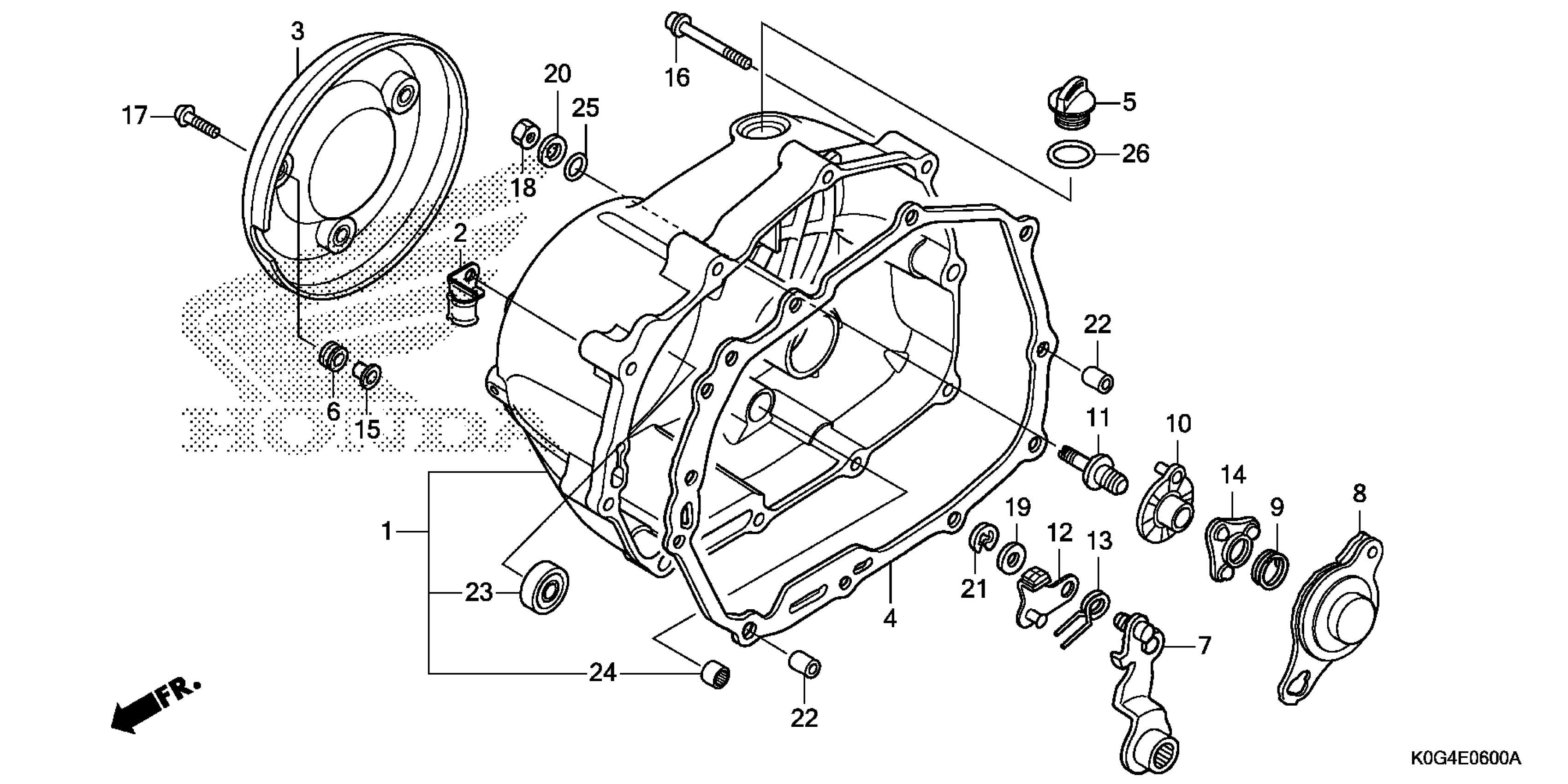

Honda C125AAC (20) MOTORCYCLE, THA, VIN# MLHJA485-L5100001 TO MLHJA485-L5199999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-K0G-900

$100.72

CLAMP A, OIL TEMP SENSOR CORD

11346-K0F-T00

$1.49

PROTECTOR, R. COVER

11370-K0F-T00

$41.57

GASKET, R. CRANKCASE COVER

11394-KYZ-900

$7.62

CAP, OIL FILLER

15611-K0F-T00

$3.88

RUBBER, MOUNTING

19639-GBC-000

$1.49

LEVER, CLUTCH

22810-KPH-900

$37.44

PLATE, CLUTCH CAM

22820-KYZ-900

$30.35

SPRING, CAM PLATE SIDE

22825-046-000

$2.08

PLATE, CLUTCH LIFTER

22830-KYZ-900

$16.43

BOLT, CLUTCH ADJUSTING

22846-K0G-900

$2.52

PLATE, BRAKE

22850-KPH-900

$10.05

SPRING, BRAKE

22853-KPH-900

$1.49

RETAINER, BALL

22860-HB3-000

$7.81

COLLAR, TAILLIGHT SETTING

33715-GB0-900

$2.93

BOLT, FLANGE SOCKET (6X40)

90002-MJE-D00

$1.49

SCREW, PAN (6X18)

90130-K26-900

$1.49

NUT, SPECIAL (8MM)

90201-K0G-900

$6.25

WASHER (8MM) (NOT AVAILABLE)

90443-844-000

$1.49

WASHER (8MM)

90485-040-000

$1.77

CIRCLIP (7MM)

90605-166-720

$1.80

PIN, DOWEL (8X12)

90702-KFM-900

$1.49

BEARING, RADIAL BALL SPECIAL (6001U)

91007-KPH-901

$27.23

BEARING, NEEDLE (1010) (TOYO)

91021-148-004

$23.20

O-RING (8MM)

91303-001-010

$2.43

O-RING (18X3)

91307-KRM-840

$1.49
