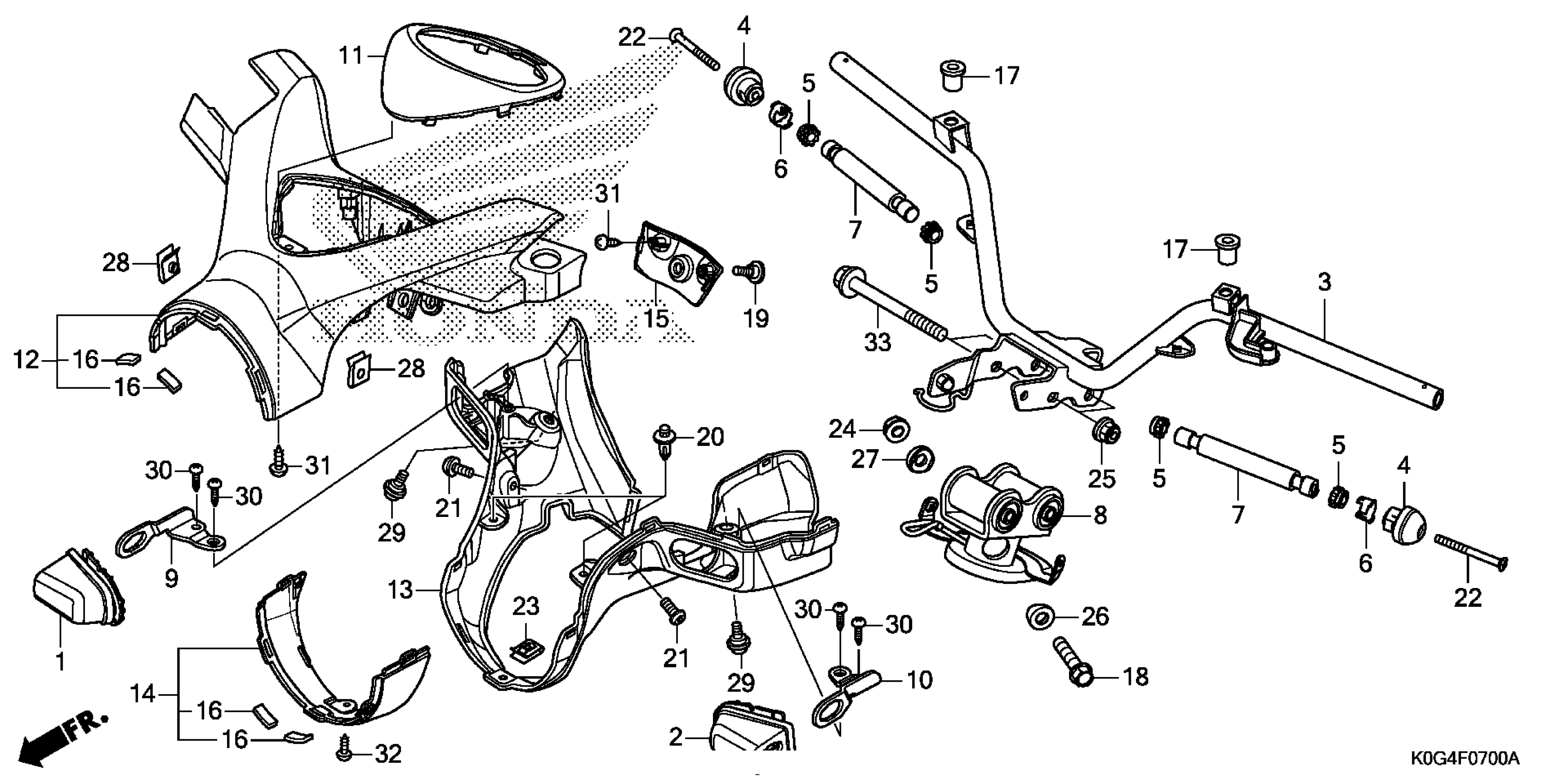

Honda C125AAC (20) MOTORCYCLE, THA, VIN# MLHJA485-L5100001 TO MLHJA485-L5199999 HANDLEBAR@HANDLE COVER Diagram

#

Description
Price

1

RUBBER, R. FR. TURN SIGNAL

50175-K0G-960

$25.70

2

RUBBER, L. FR. TURN SIGNAL

50176-K0G-960

$25.70

3

HANDLEBAR

53100-K0G-901

$90.23

4

WEIGHT A, HANDLEBAR

53105-K0G-900

$12.15

5

RUBBER A, HANDLE WEIGHT

53106-KR3-770

$3.92

6

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$6.22

7

WEIGHT B, HANDLEBAR

53125-KYZ-900

$6.03

8

POST ASSY., HANDLE

53130-K0G-900

$74.30

9

STAY, R. FR. TURN SIGNAL

53185-K0G-960

$166.97

10

STAY, L. FR. TURN SIGNAL

53186-K0G-960

$166.97

11

COVER, SPEEDOMETER

53204-K0G-900

$43.46

12

COVER, HANDLE (UPPER) *R376P* (PEARL NEBULA RED)

53205-K0G-901ZA

$54.67

13

COVER, HANDLE (LOWER)

53206-K0G-901

$16.79

14

COVER, HEADLIGHT (LOWER) *R376P* (PEARL NEBULA RED)

53207-K0G-901ZA

$12.90

15

COVER, RR. HANDLE

53208-K0G-900

$1.84

16

RUBBER, HANDLE COVER

53209-K0G-900

$1.49

17

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

18

BOLT, FLANGE (10X48)

90102-KWW-640

$1.49

19

SCREW, SPECIAL (5MM)

90103-KPH-900

$1.49

20

RIVET, PUSH

90116-MCS-G00

$1.49

21

BOLT, SPECIAL (5X12)

90119-K0G-900

$1.49

22

SCREW, OVAL (6X45)

90191-K29-900

$2.62

23

NUT, SPRING (4MM)

90302-SA4-003

$5.44

24

NUT, U (10MM)

90304-KGH-901

$3.25

25

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

25

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

26

COLLAR A, HANDLE SETTING

90501-KPH-880

$1.49

27

COLLAR B, HANDLE SETTING

90505-KPH-880

$1.49

28

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

29

SCREW, PAN (5X11.5)

91509-GE2-760

$2.38

30

SCREW, TAPPING (5X16)

93903-25380

$1.49

31

SCREW, TAPPING (4X10)

93903-34210

$1.49

32

SCREW, TAPPING (4X12)

93903-34380

$2.18

33

BOLT, FLANGE (8X70)

95801-08070-00

$1.89
