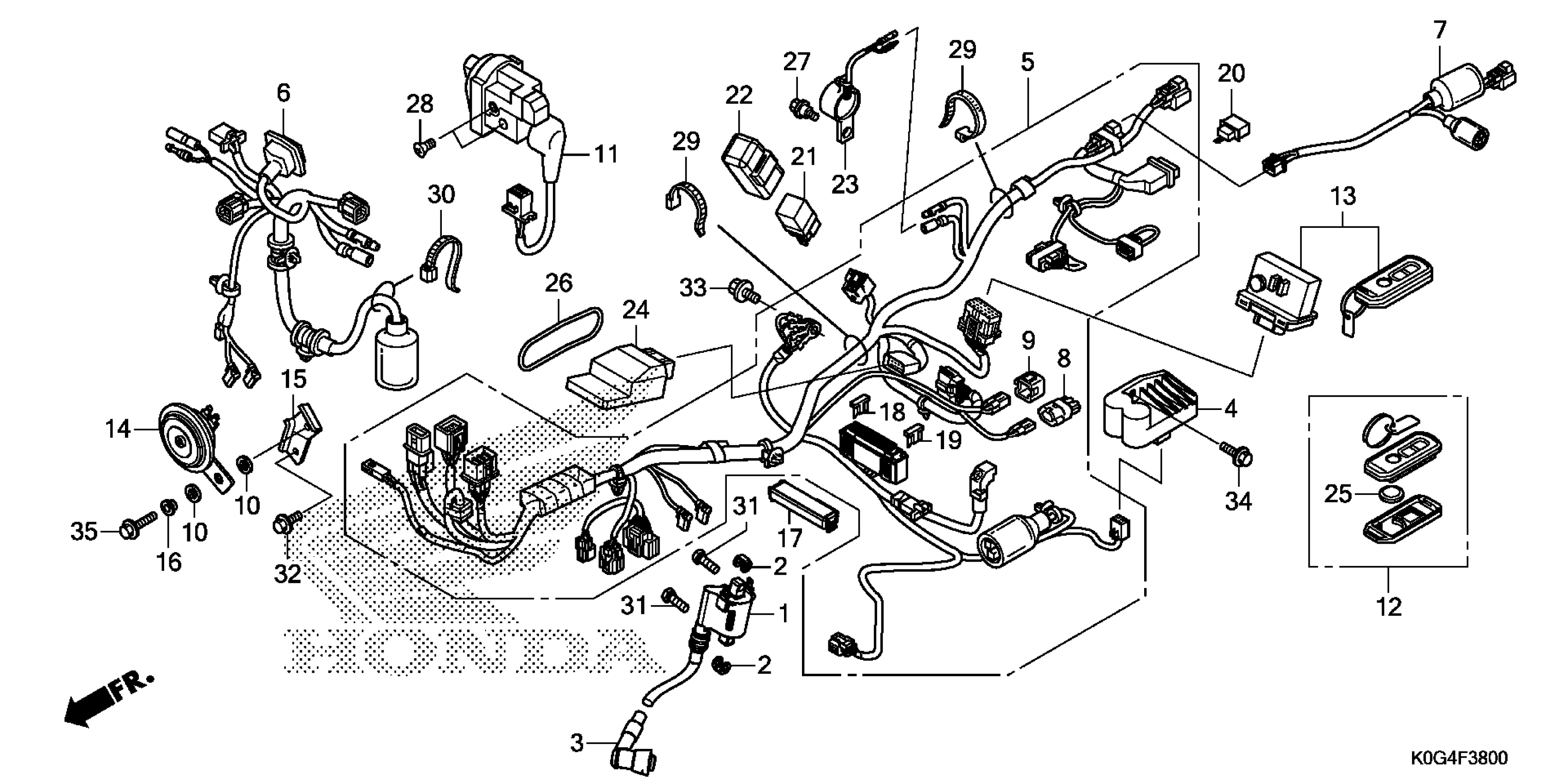

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 WIRE HARNESS Diagram

COIL, IGNITION

30510-K0G-901

$31.68

SPACER, IGNITION COIL

30520-GFM-900

$2.38

CAP ASSY., NOISE SUPPRESSOR

30700-K0G-901

$10.57

RECTIFIER, REGULATOR

31600-K0F-T01

$101.65

WIRE HARNESS

32100-K0G-960

$508.54

SUB-HARNESS, FR.

32101-K0G-960

$64.99

SUB-HARNESS, RR.

32105-K0G-900

$18.21

CAP, DUMMY (2P) (BLUE)

32605-KCW-J91

$4.65

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.12

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.29

SWITCH ASSY., HANDLE LOCK

35100-K0G-961

$238.28

FOB ASSY. This part replaces 35121-K0G-960.

35121-K0G-961

$118.70

FOB ASSY.

35121-K0G-961

$118.70

FOB ASSY.

35121-K0G-962

$118.70

CONTROL UNIT, SMART This part replaces 35141-K0G-960.

35141-K0G-963

$281.07

CONTROL UNIT, SMART

35141-K0G-964

$281.07

HORN (HIGH)

38110-K44-J01

$15.89

STAY, HORN

38111-K0G-900

$5.99

COLLAR, HORN SETTING

38117-KYZ-T00

$0.72

COVER ASSY., FUSE BOX

38200-K0G-962

$21.94

FUSE, BLADE (10A)

38221-SNA-A41

$2.89

FUSE, BLADE (15A)

38221-SNA-A51

$3.39

RELAY, TURN SIGNAL

38301-KZZ-J01

$51.80

RELAY, STARTER (HONDALOCK)

38501-KVB-901

$19.54

SUSPENSION, STARTER RELAY (HONDALOCK)

38506-KWW-711

$3.88

BUZZER ASSY.

38720-K66-V11

$18.43

PGM-FI UNIT

38770-K0G-962

$165.39

BATTERY (CR2032) (NOT AVAILABLE) (MSDS)

72148-S04-000

$6.42

BAND (ECU)

80124-KPH-700

$0.70

BOLT, SPECIAL (6MM)

90107-KVB-900

$0.49

SCREW, U-LOCK FLAT (6X12)

90164-KZL-A00

$1.62

BAND, WIRE HARNESS

90620-SB2-003

$23.54

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

BOLT, HEX. (6X20)

92101-06020-4J

$1.26

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48
