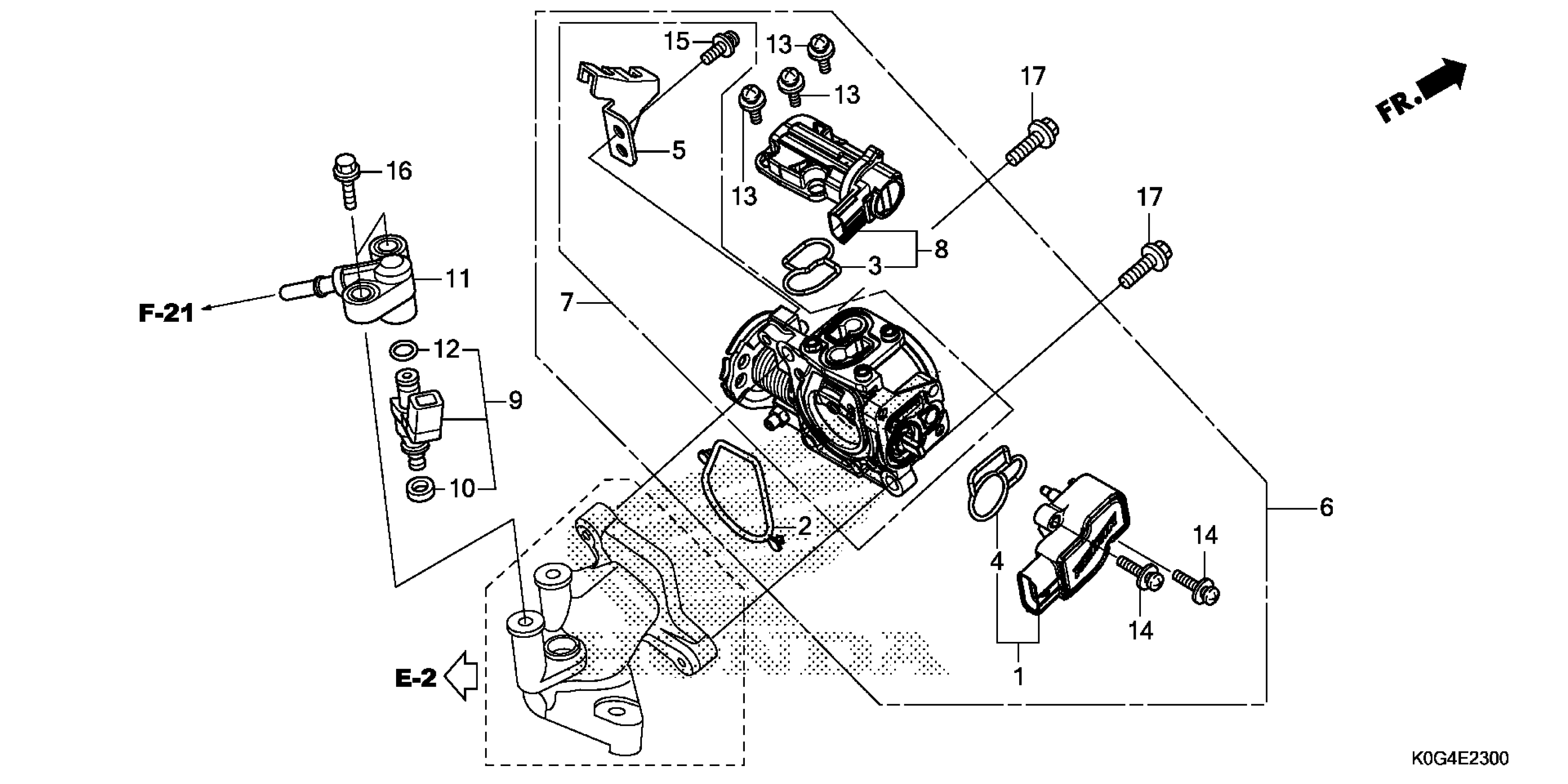

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 THROTTLE BODY Diagram

SENSOR SET

16060-K35-V01

$72.82

O-RING, THROTTLE BODY

16075-K35-V01

$4.48

O-RING

16076-K35-V01

$2.38

O-RING

16077-K35-V01

$3.78

STAY, WIRE

16169-K18-901

$12.43

BODY ASSY., THROTTLE (GQYFB A)

16400-K0G-901

$241.12

BODY SET

16410-K0G-901

$155.49

VALVE SET, IDLE AIR CONTROL

16430-K0G-901

$52.78

INJECTOR ASSY., FUEL

16450-K76-T61

$35.25

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.04

JOINT, INJECTOR

17560-K40-F00

$26.81

O-RING (6.3X2.2)

91301-GGL-J01

$9.39

SCREW-WASHER (4X10)

93891-04010-08

$1.04

SCREW-WASHER (4X10) This part replaces 93891-04010-18.

93891-04010-08

$1.04

SCREW-WASHER (4X16)

93891-04016-08

$1.04

SCREW-WASHER (4X16) This part replaces 93891-04016-18.

93891-04016-08

$1.04

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.04

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.04

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

BOLT, FLANGE (6X18)

96001-06018-00

$1.64
