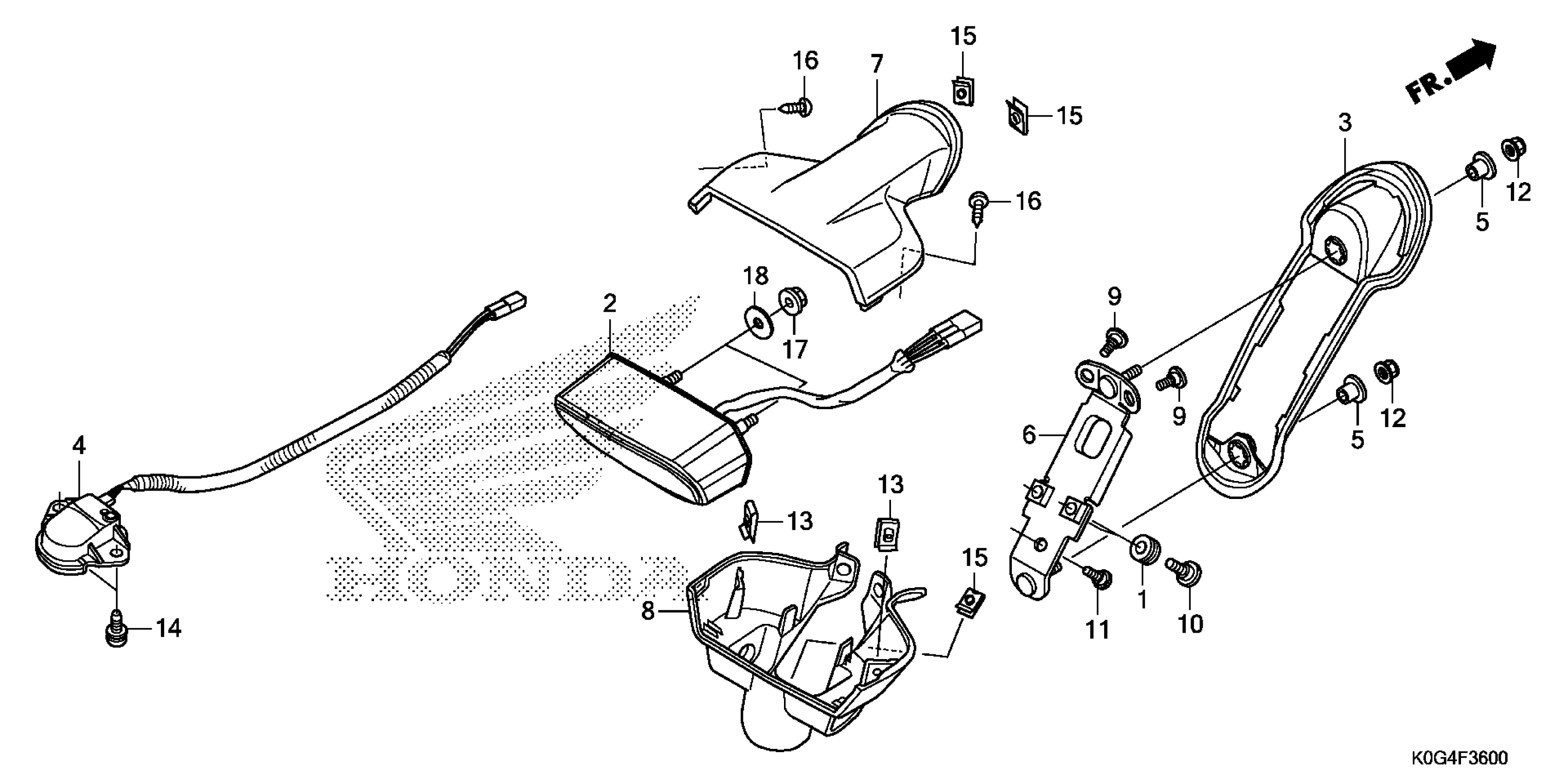

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 TAILLIGHT@LICENSE LIGHT Diagram

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

TAILLIGHT UNIT

33701-K0G-961

$150.24

RUBBER, TAILLIGHT MOUNTING

33705-K0G-900

$8.35

LIGHT ASSY., LICENSE

33720-K0G-901

$162.96

COLLAR, TAILLIGHT MOUNTING

33731-K0G-900

$2.13

STAY, TAILLIGHT

50316-K0G-960

$165.59

COVER, TAILLIGHT (UPPER)

80130-K0G-960

$128.91

COVER, TAILLIGHT (LOWER)

80140-K0G-960

$119.46

SCREW, SPECIAL (5MM)

90103-KPH-970

$1.24

SCREW, PAN (6X12)

90113-GFP-B00

$3.41

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.01

NUT, U (5MM)

90301-KWN-901

$0.62

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

SCREW-WASHER (4X14)

90508-K0F-T00

$1.31

NUT, CLIP (5MM)

90677-KAN-T00

$0.59

SCREW, TAPPING (4X12)

93903-24320

$0.90

NUT, FLANGE (6MM)

94050-06000

$0.60

WASHER, PLAIN (6MM)

94103-06000

Unavailable
