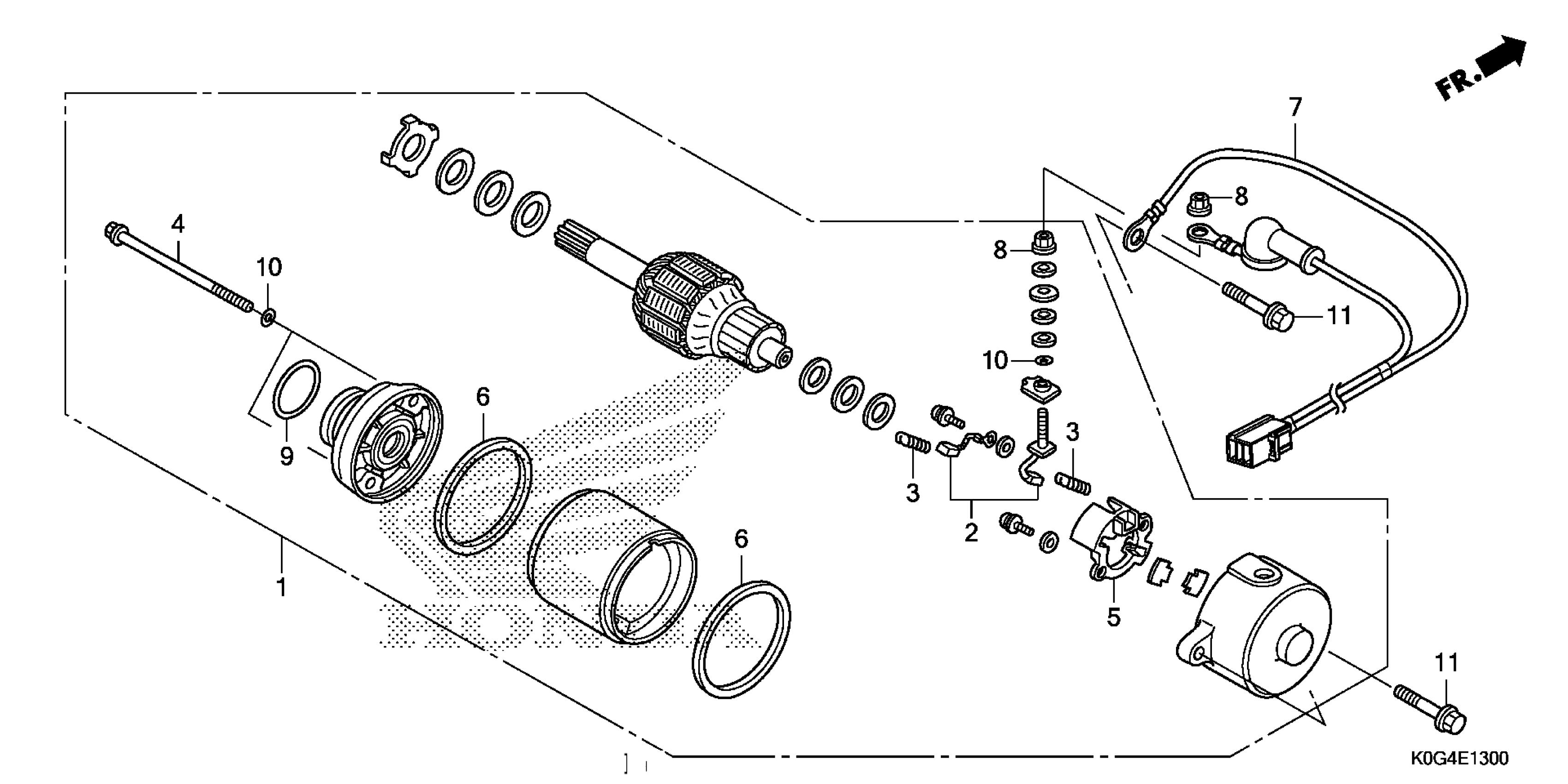

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 STARTER MOTOR Diagram

STARTER MOTOR ASSY. (MITSUBA)

31200-KPW-901

$177.45

TERMINAL SET, BRUSH

31201-KVS-J01

$12.34

SPRING, CARBON BRUSH

31204-KG8-004

$3.53

BOLT, SETTING

31205-KPW-901

$2.66

HOLDER, BRUSH

31206-KPW-901

$2.28

RING

31207-MBE-008

$4.28

CABLE, STARTER MOTOR

32410-K0G-900

$10.62

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

$6.34

O-RING (Honda Code 1292184)

91320-MB0-000

$2.43

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
