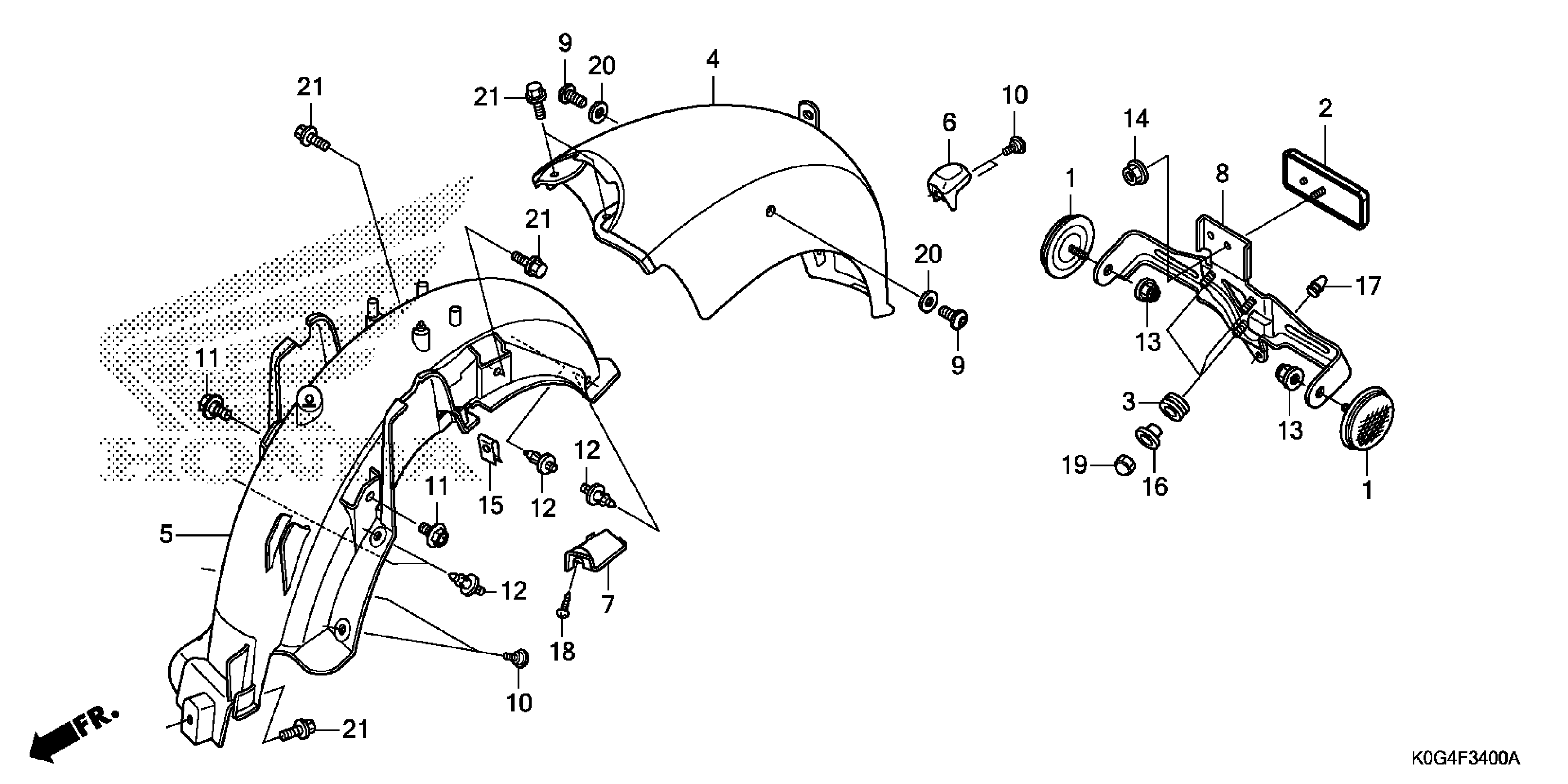

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 REAR FENDER Diagram

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX

33741-KPL-902

$7.58

GROMMET, MAIN PIPE COVER

64312-KWW-640

$1.49

FENDER, RR. *PB415P* (PEARL NILTAVA BLUE)

80100-K0G-960ZA

$565.59

FENDER (INNER)

80102-K0G-900

$22.08

COVER, LICENSE LIGHT

80103-K0G-900

$3.23

LID, FENDER (INNER)

80104-K0G-900

$4.56

BRACKET, NUMBER PLATE

84701-K0G-930

$201.25

BOLT, SOCKET SPECIAL (8X18)

90108-K0G-901

$1.49

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.18

BOLT, FLANGE (6MM)

90116-KVB-900

$1.49

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, U (5MM)

90301-KWN-901

$1.49

NUT, SPRING (4MM)

90302-KWW-A00

$1.49

COLLAR, TAILLIGHT

90501-K0F-T00

$1.49

PLUG, CONE TYPE

90899-422-610

$1.89

SCREW, TAPPING (4X12)

93903-24380

$1.49

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

NUT, CAP (6MM)

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

WASHER, PLAIN (8MM)

94102-08000

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
