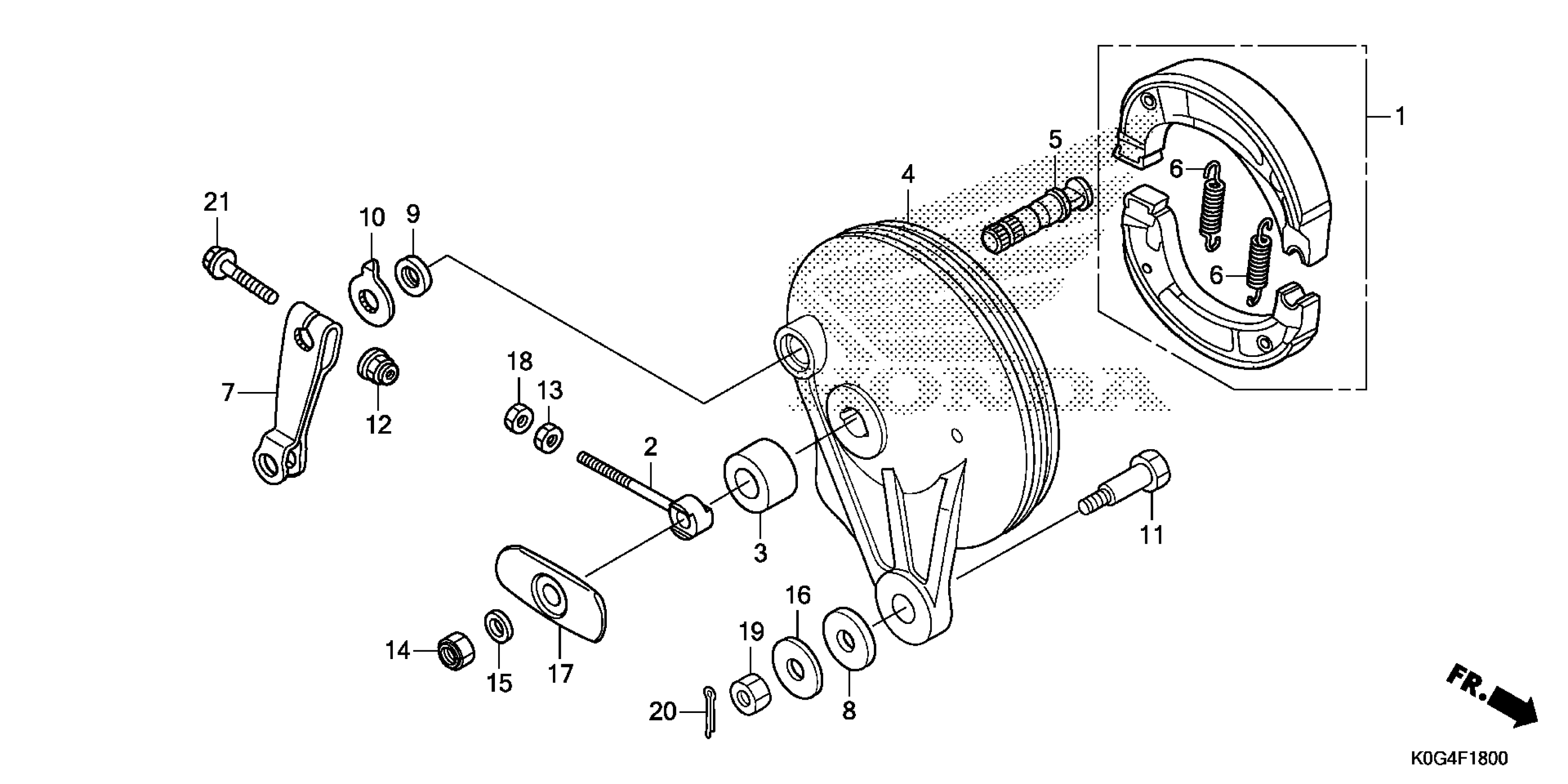

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (JB)

06430-GGZ-J00

$54.10

ADJUSTER, CHAIN

40543-K0G-900

$8.47

COLLAR, RR. BRAKE PANEL SIDE

42313-K0G-900

$9.75

PANEL, RR. BRAKE *NHC14M* (METAMORPHIC GRAY METALLIC)

43100-KWW-640ZK

$26.93

CAM, RR. BRAKE

43141-K0G-900

$28.61

SPRING, BRAKE SHOE (SEE KIT P/N--END OF BLOCK)

43151-110-000

$2.80

ARM, RR. BRAKE

43410-K41-N00

$6.57

RUBBER, STOPPER ARM

43434-ME1-670

$3.22

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

INDICATOR, FR. BRAKE (FOR RR.)

45145-KFM-900

$1.01

BOLT A, STOPPER ARM

90126-KWB-600

$1.12

BOLT A, BRAKE STOPPER

90127-KWB-600

$1.06

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.26

NUT, SPECIAL (6MM)

90302-KZV-J00

$1.17

NUT, U (12MM)

90306-K0G-901

$2.88

WASHER, RR. AXLE

90501-K0G-900

$1.42

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.26

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.26

PLATE, SWINGARM SIDE

90559-K0G-900

$11.00

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

NUT, HEX. (6MM)

94001-06200-0S

$1.19

NUT, HEX. (8MM)

94001-08000-0S

$1.19

PIN, COTTER (2.0X15)

94201-20150

$0.94

BOLT, FLANGE (6X35)

95701-06035-00

$1.71
