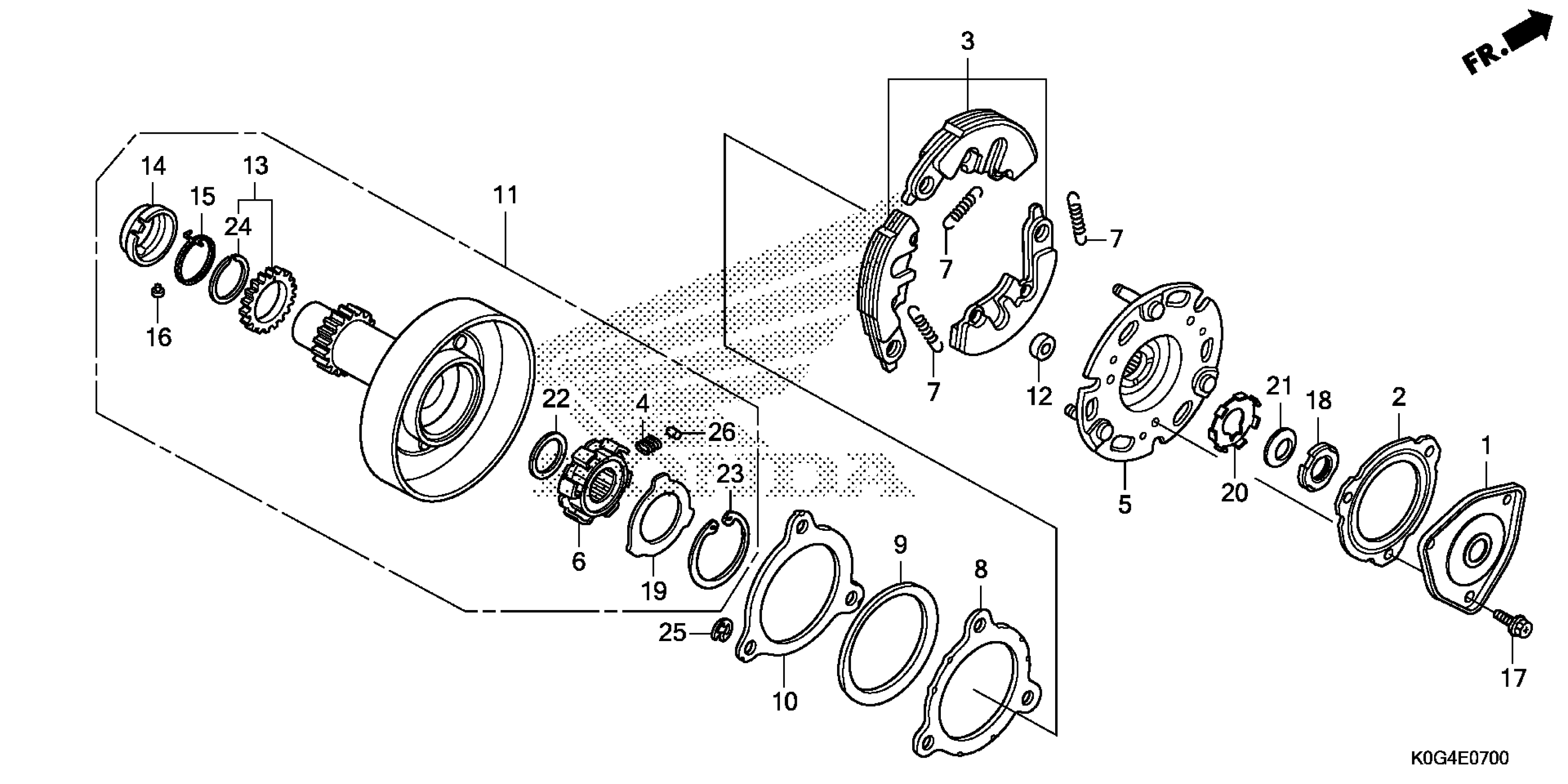

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 ONE-WAY CLUTCH Diagram

COVER, OIL FILTER

15431-KPH-900

$2.36

GASKET, OIL FILTER COVER (NICHIAS)

15439-KWW-741

$1.49

WEIGHT SET, PRIMARY CLUTCH (F.C.C.)

22535-K73-T30

$53.23

SPRING, ONE-WAY RETAINER

22606-GN5-910

$3.10

PLATE, PRIMARY DRIVE

22610-KYZ-901

$19.08

INNER, ONE-WAY CLUTCH

22630-KYZ-901

$7.22

SPRING, PRIMARY CLUTCH

22641-KYZ-901

$1.49

WASHER, CLUTCH SIDE

22642-K73-T31

$1.90

SPRING, SIDE FRICTION

22643-KPH-900

$10.93

PLATE, CLUTCH SIDE

22644-K73-T31

$2.10

CLUTCH OUTER ASSY., PRIMARY

22660-K0G-901

$127.78

RUBBER, CLUTCH DAMPER

22804-KPH-880

$1.49

GEAR SET, SUB (22T)

23122-K0G-305

$38.49

RETAINER, SPRING (F.C.C.)

23123-KPH-900

$7.49

SPRING, SUB-GEAR

23124-KPH-900

$1.49

PIN (F.C.C.)

23125-GN5-910

$3.72

BOLT, SPECIAL FLANGE (5X8)

90083-KFL-850

$1.49

NUT, LOCK (14MM)

90231-087-010

$3.80

WASHER (30X45X0.8)

90401-GB2-000

$5.26

WASHER, LOCK

90431-GN5-910

$4.02

WASHER B, LOCK

90432-086-000

$4.44

WASHER (17X23X1.5) (F.C.C.)

90433-KWB-601

$1.49

CIRCLIP (INNER) (45MM)

90455-GB2-000

$6.43

SET-RING (25MM)

90603-KPH-900

$1.93

CIRCLIP (7MM)

90605-166-720

$1.80

ROLLER (5X8)

91101-GB2-000

$3.85
