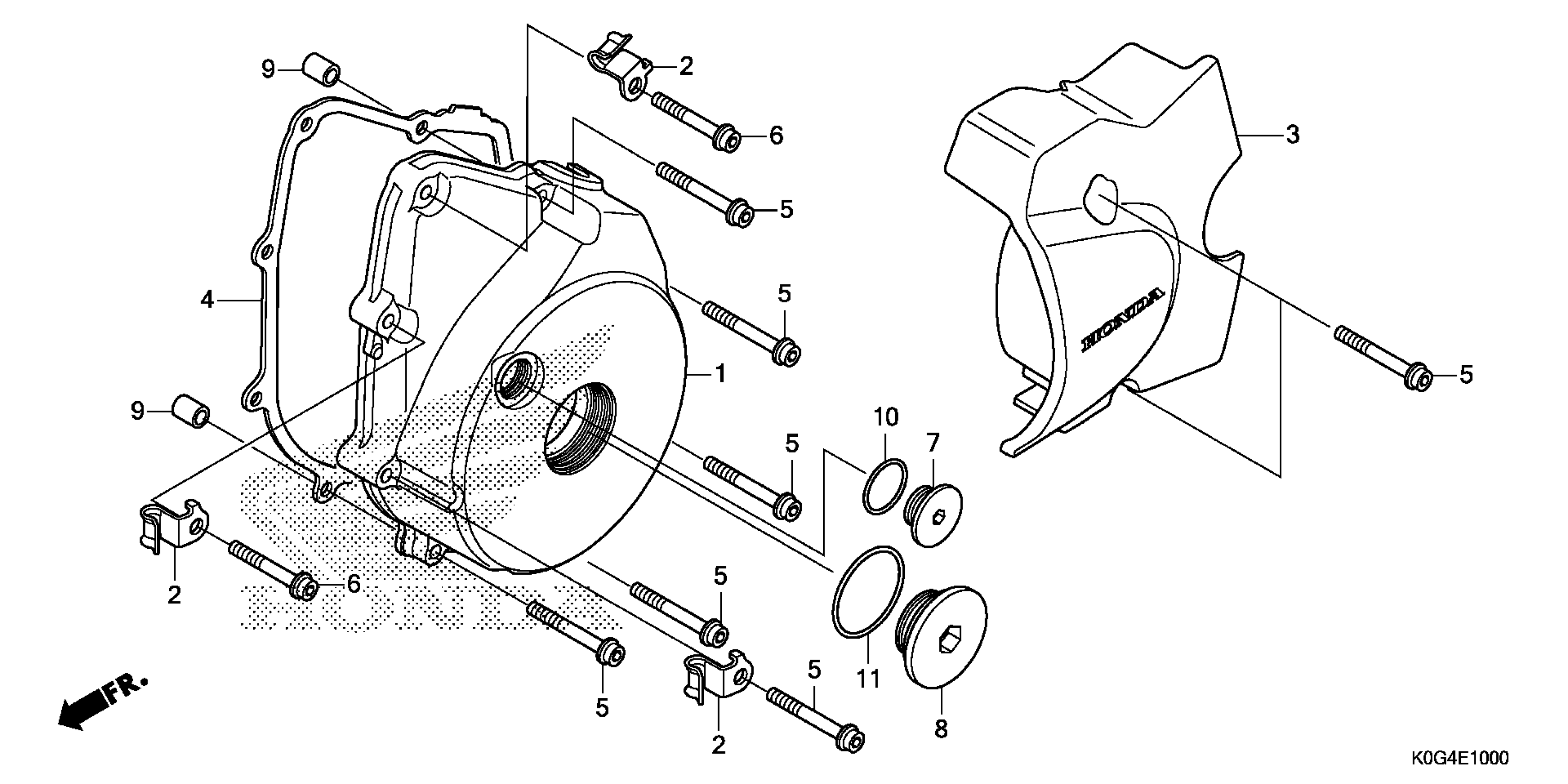

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11341-K0F-T00

$51.67

CLAMP A, OIL TEMP SENSOR CORD

11346-K0F-T00

$1.49

COVER ASSY., L. RR.

11360-K0G-900

$65.31

GASKET, L. CRANKCASE COVER This part replaces 11395-KPH-901.

11395-K73-T60

$1.70

BOLT, FLANGE SOCKET (6X35)

90001-MJE-D00

$1.49

BOLT, FLANGE SOCKET (6X28)

90003-MGZ-J00

$1.49

CAP (14MM)

90084-K0F-T00

$14.62

CAP (30MM)

90087-K0F-T00

$20.67

PIN, DOWEL (8X12)

90702-KFM-900

$1.49

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (30MM)

91356-KWV-000

$1.49
