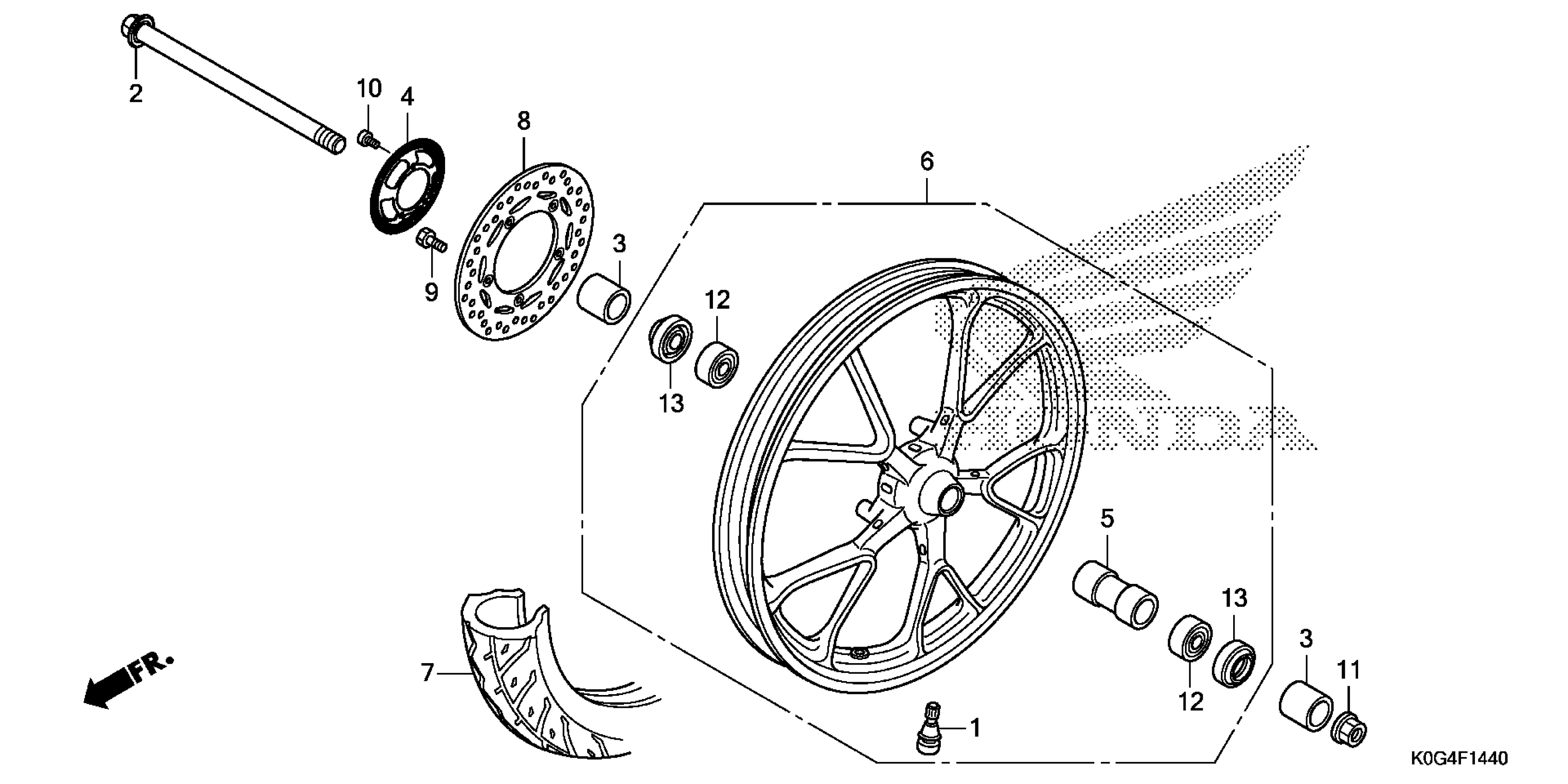

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 FRONT WHEEL Diagram

VALVE, RIM (IRC)

42753-GM9-743

$7.99

AXLE, FR. WHEEL

44301-KZV-L00

$6.63

COLLAR, FR. WHEEL SIDE

44311-K0G-900

$9.57

RING, FR. PULSER

44515-K26-C10

$24.58

COLLAR, FR. AXLE DISTANCE

44620-K0G-900

$6.60

WHEEL SUB-ASSY., FR. *NHC14M* (METAMORPHIC GRAY METALLIC)

44650-K0G-950ZA

$287.94

TIRE, FR. (70/90-17M/C 38P) (IRC) This part replaces 44711-K0G-901.

44711-K0G-903

$44.39

DISK, FR. BRAKE

45251-K0G-901

$61.35

BOLT, DISK (6X17)

90105-KZZ-900

Unavailable

BOLT, TORX (5X10)

90131-KPB-751

$2.46

NUT, U (12MM)

90306-KWN-701

$3.87

BEARING, RADIAL BALL (6201UU) (NSK)

91051-K03-H32

$9.90

BEARING, RADIAL BALL (6201UU) (FAG)

91051-K03-H33

$6.25

DUST SEAL (21X32X5) (ARAI)

91251-KZR-601

$1.26
