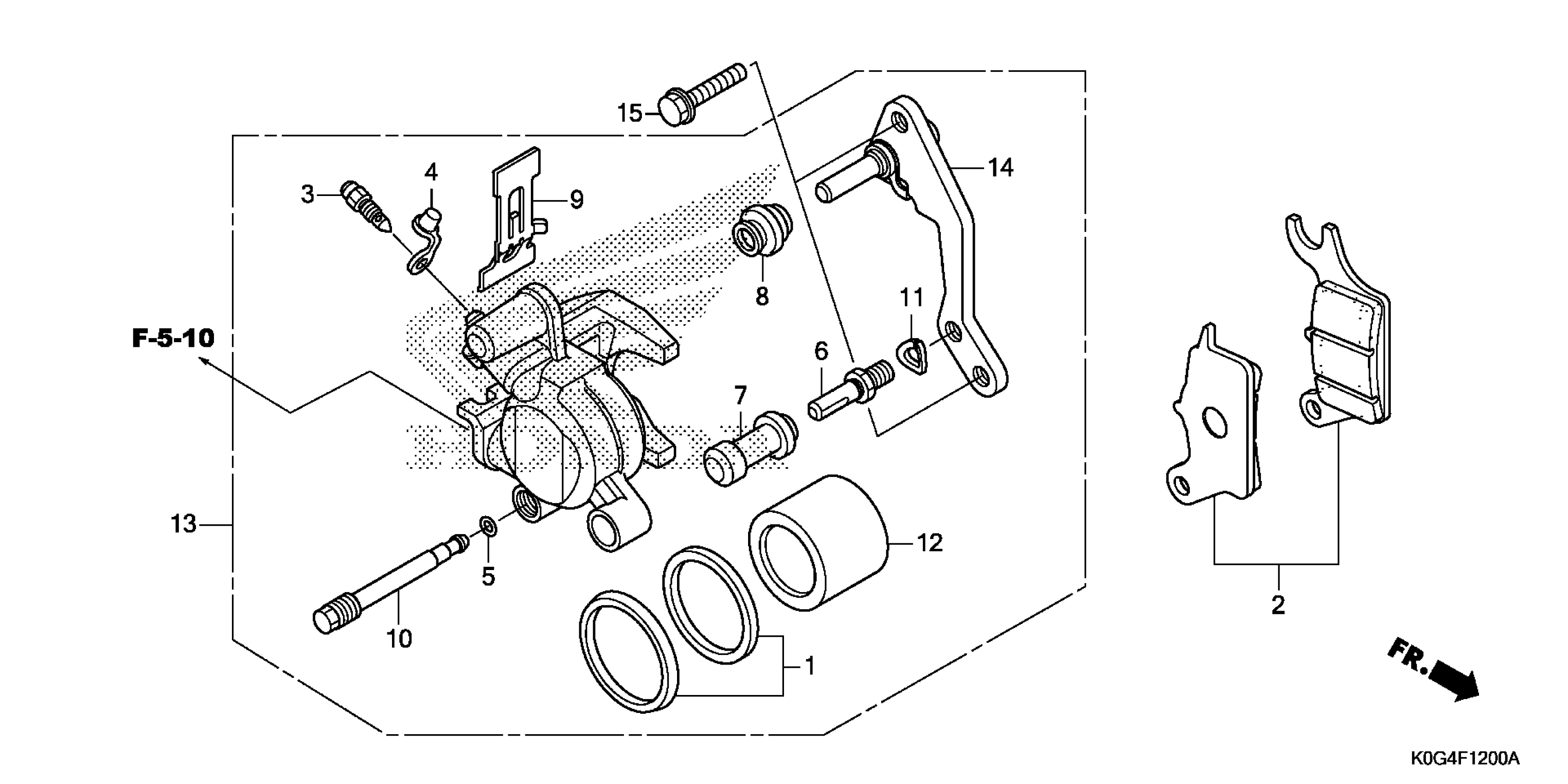

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-961-405

$6.56

PAD SET, FR.

06455-KWB-601

$14.69

SCREW, BLEEDER (NISSIN) This part replaces 43352-K81-N01.

43352-568-003

$7.95

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

RING, STOPPER

45111-MAJ-G41

$3.80

BOLT, PIN

45131-GZ0-006

$8.08

BOLT, PIN This part replaces 45131-K81-N01.

45131-GZ0-006

$8.08

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

SPRING, PAD

45208-KWB-601

$2.98

PIN, HANGER

45215-KPH-951

$2.92

WASHER, WAVE (NISSIN)

45216-166-006

$2.34

PISTON

45218-KWB-601

$20.59

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-K0G-901

$70.25

BRACKET SUB-ASSY., FR.

45290-KWB-601

$26.49

BOLT, FLANGE (8X25)

90131-KGH-900

$1.49
