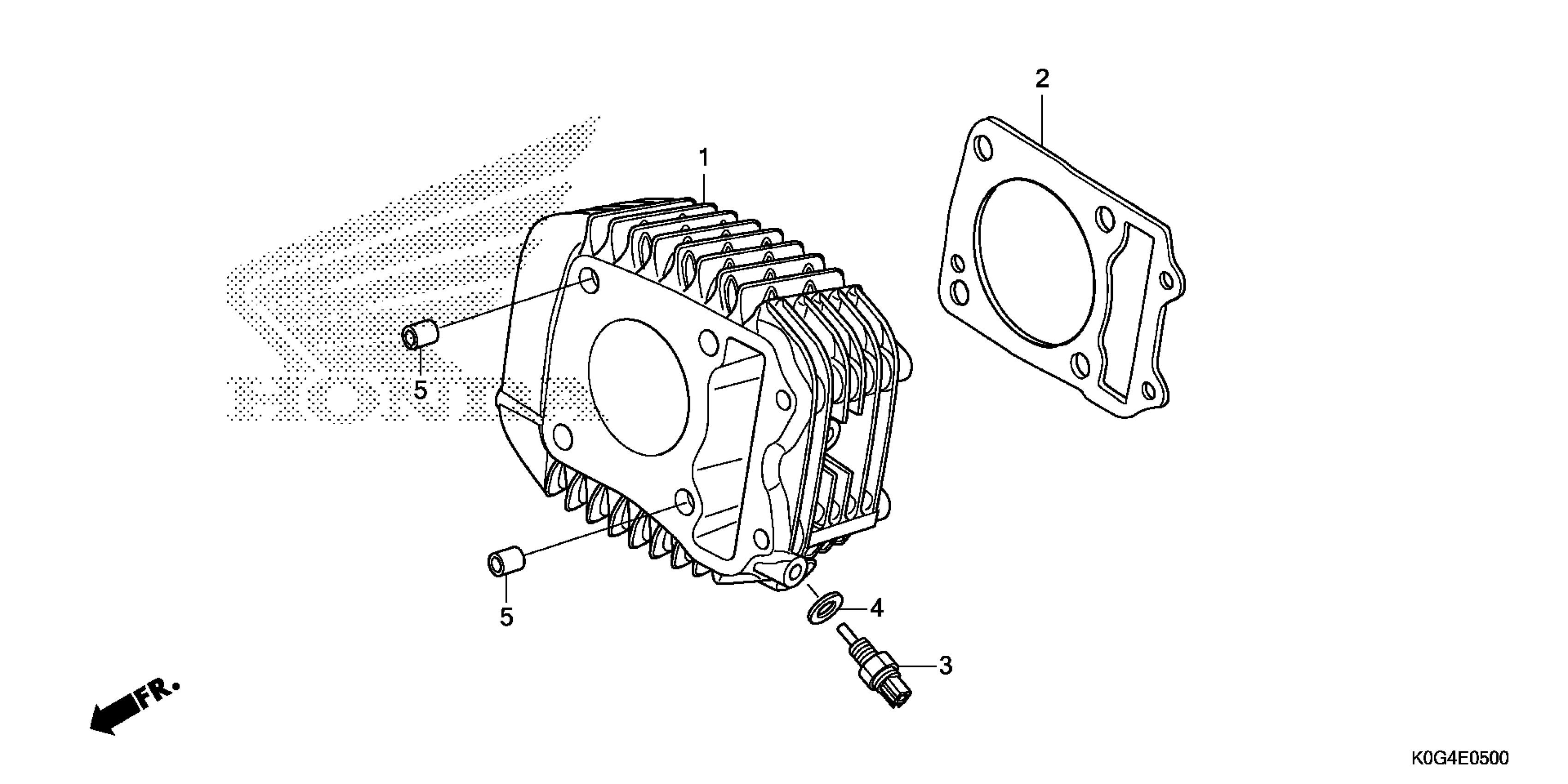

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12100-K0F-T00

$71.33

2

GASKET, CYLINDER This part replaces 12191-KYZ-900.

12191-K73-T60

$2.32

3

SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)

37750-KPH-701

$45.22

4

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.80

5

PIN, DOWEL (10X12)

94301-10120

$2.25
