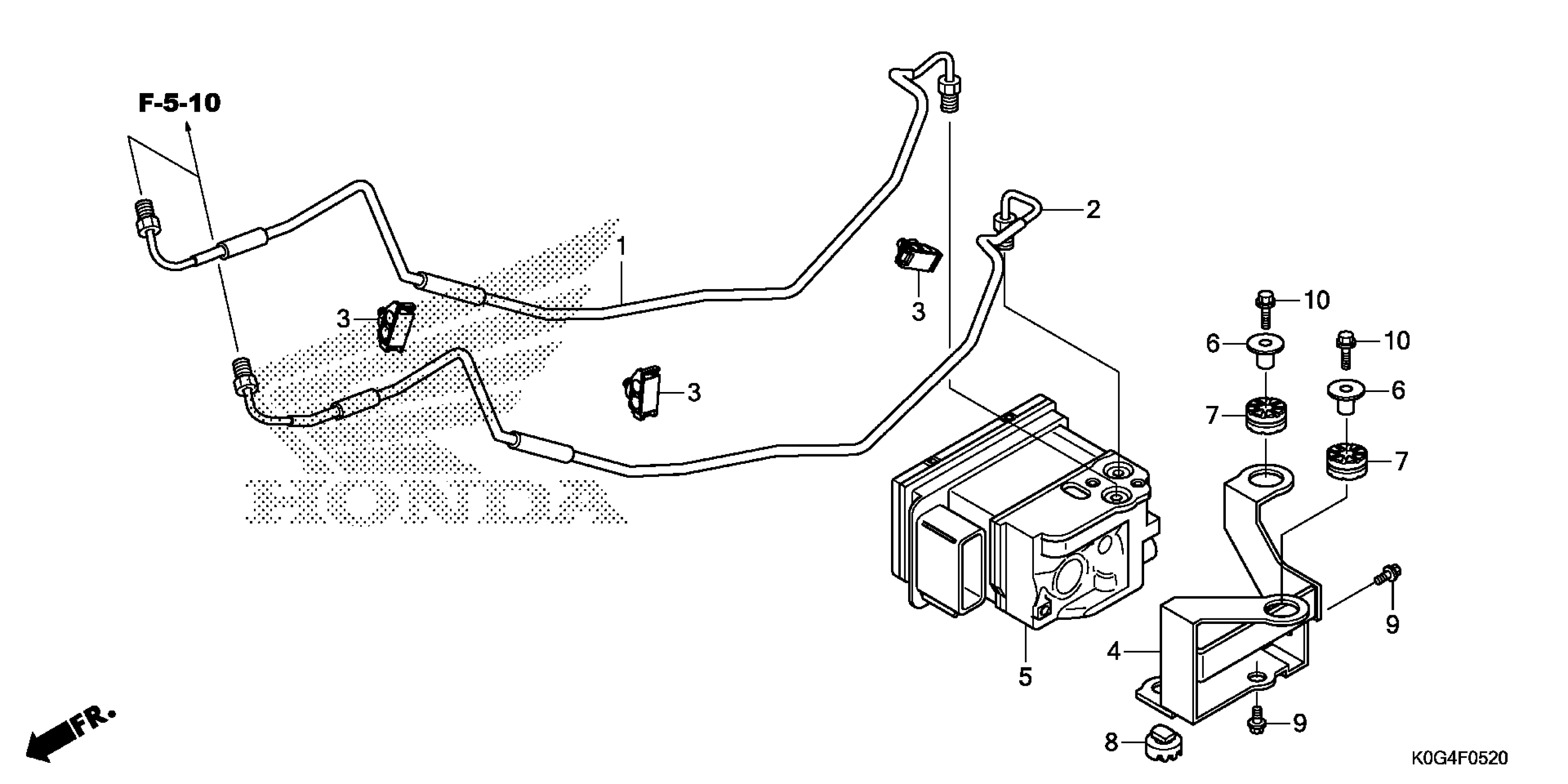

Honda C125AAC (19) MOTORCYCLE, THA, VIN# MLHJA485-K5000001 TO MLHJA485-K5099999 ABS MODULATOR Diagram

PIPE A, FR. BRAKE

45126-K0G-950

$29.81

PIPE B, FR. BRAKE

45127-K0G-950

$30.81

CLIP, BRAKE PIPE

46392-TF0-003

$1.72

BRACKET, ABS MODULATOR

50245-K0G-950

$47.67

MODULATOR ASSY.

57110-K0G-951

$769.35

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.73

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.05

RUBBER B, SEAT SETTING

77214-KPH-900

$1.16

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
