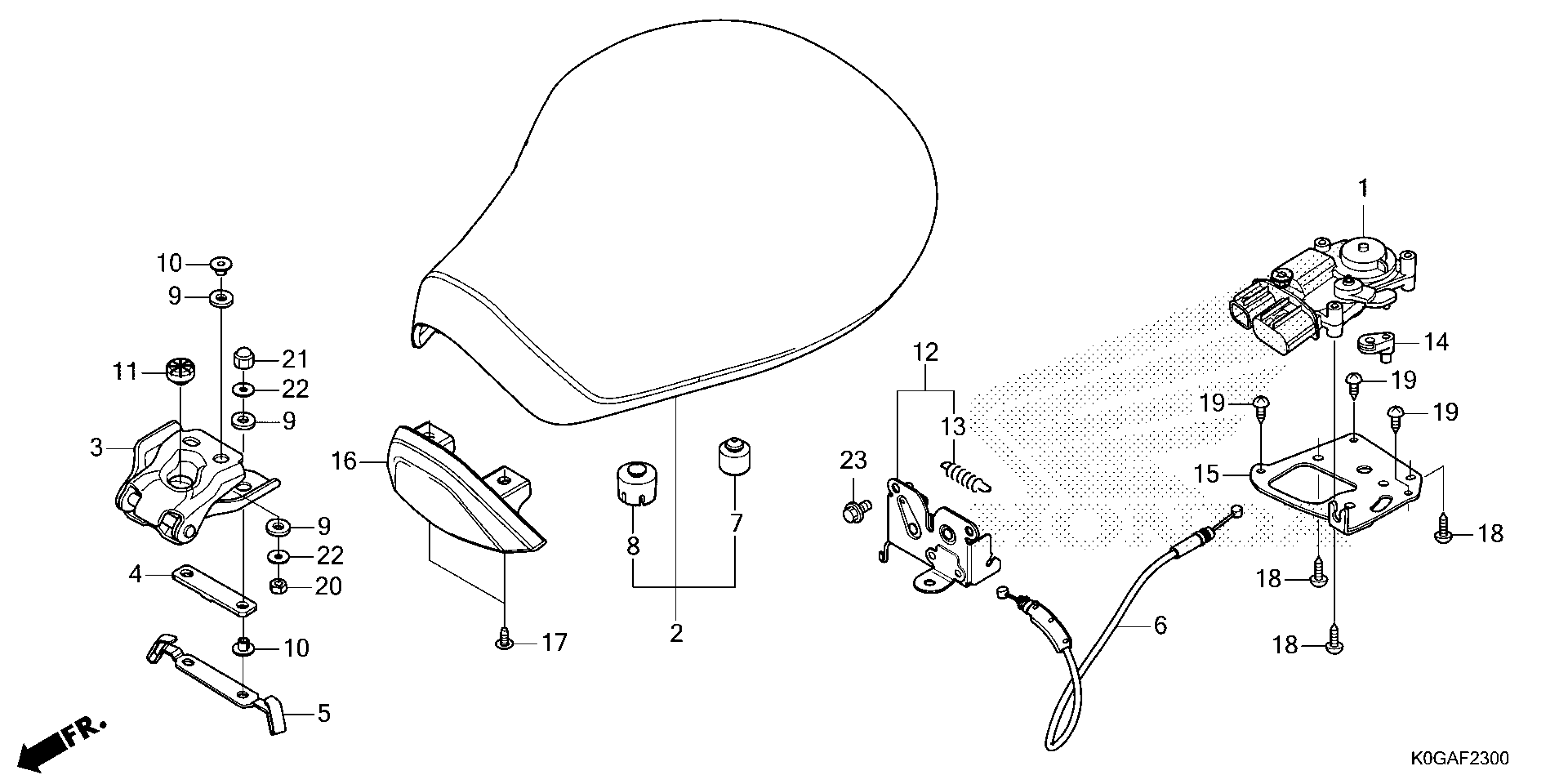

Honda C125A2AC (22) MOTORCYCLE, THA, VIN# MLHJA585-N5000001 TO MLHJA585-N5099999 SEAT Diagram

#

Description
Price

1

ACTUATOR ASSY. (HONDALOCK)

36520-MKC-A01

$82.38

2

SEAT, SINGLE (TYPE1)

77100-K0G-T20ZB

$174.65

3

HINGE, SEAT

77110-K0G-900

$11.80

4

RUBBER, CUSHION

77116-K0G-900

$2.57

5

HOOK, HELMET

77117-K0G-900

$6.35

6

CABLE, SEAT LOCK

77156-K0G-901

$5.09

7

RUBBER, SEAT CUSHION

77206-KPK-900

$1.28

8

RUBBER, SEAT CUSHION

77206-MKP-J80

$6.38

9

RUBBER B, SEAT MOUNTING

77207-GN5-910

$2.26

10

COLLAR, SEAT MOUNTING

77208-KPW-900

$1.17

11

RUBBER C, SEAT SETTING

77215-KW7-900

$4.92

12

CATCH, SEAT

77230-K0G-900

$12.35

13

SPRING, SEAT LOCK

77234-GGZ-J00

$0.28

14

JOINT, CABLE

77242-KSV-J00

$5.32

15

STAY, ACTUATOR

77250-K0G-900

$7.41

16

COVER, SEAT HINGE

83405-K0G-T30

$15.87

17

SCREW, TAPPING (4X12)

93903-24310

$0.83

18

SCREW, TAPPING (4X20) (NOT AVAILABLE)

93903-34510

$0.55

19

SCREW, TAPPING (4X12)

93913-14220

$0.83

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

20

NUT, HEX. (6MM)

94001-06200-0S

$1.19

21

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.65

21

NUT, CAP (6MM)

94021-06020

$1.65

21

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.65

21

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.65

22

WASHER, PLAIN (6MM)

94103-06000

$0.90

23

BOLT, FLANGE (6X12)

95701-06012-08

$1.48
