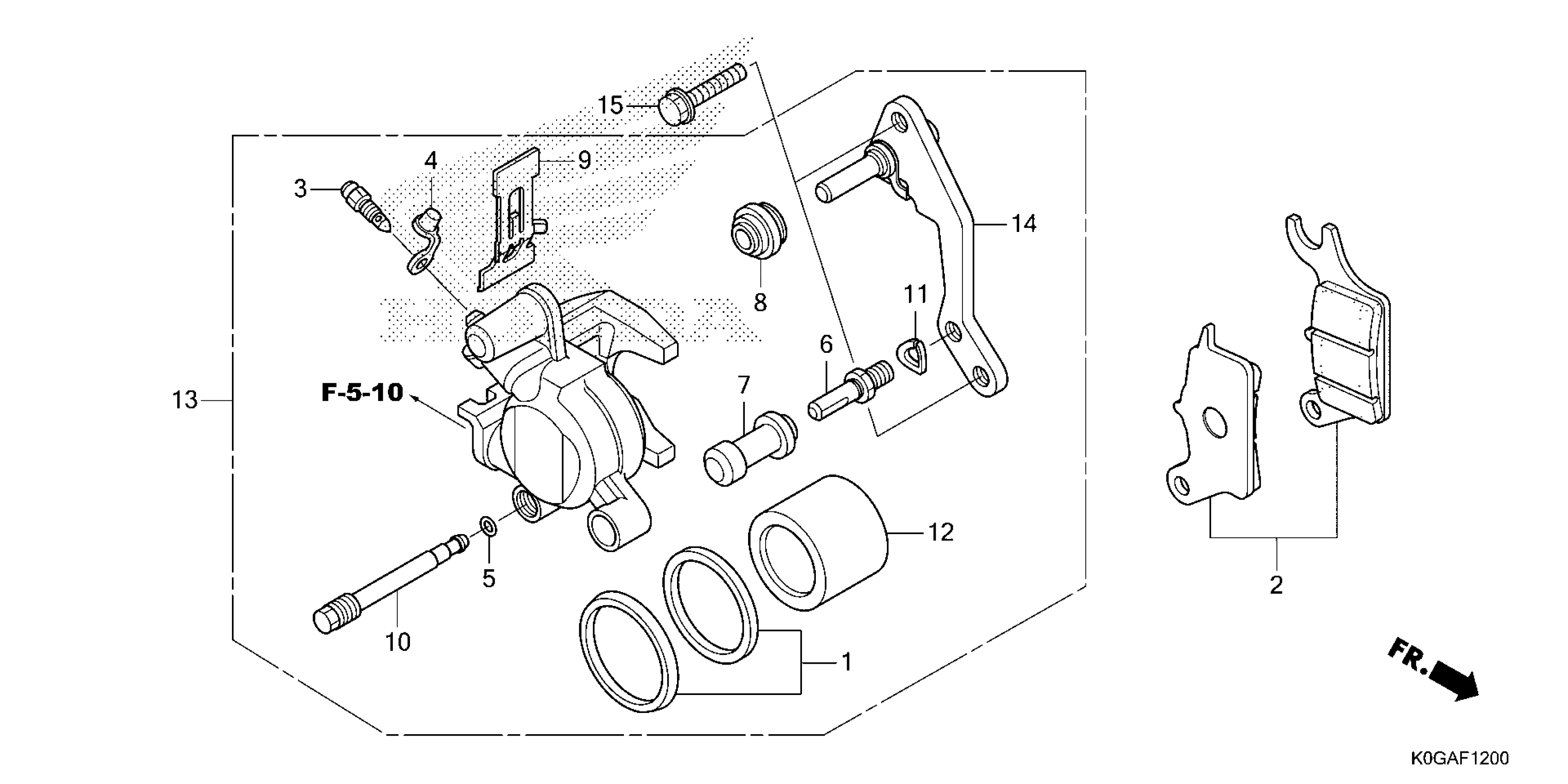

Honda C125A2AC (22) MOTORCYCLE, THA, VIN# MLHJA585-N5000001 TO MLHJA585-N5099999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-961-405

$6.26

PAD SET, FR.

06455-KWB-601

$13.09

SCREW, BLEEDER (NISSIN) This part replaces 43352-K81-N01.

43352-568-003

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

RING, STOPPER

45111-MAJ-G41

$3.63

BOLT, PIN

45131-GZ0-006

$8.21

BOLT, PIN This part replaces 45131-K81-N01.

45131-GZ0-006

$8.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

SPRING, PAD

45208-KWB-601

$2.68

PIN, HANGER

45215-KPH-951

$2.65

WASHER, WAVE (NISSIN)

45216-166-006

$2.16

PISTON

45218-KWB-601

$18.47

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-K0G-901

$63.01

BRACKET SUB-ASSY., FR.

45290-KWB-601

$23.76

BOLT, FLANGE (8X25)

90131-KGH-900

$0.68
