1988 Yamaha BIG Wheel (BW80U) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1988 Yamaha BIG Wheel (BW80U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

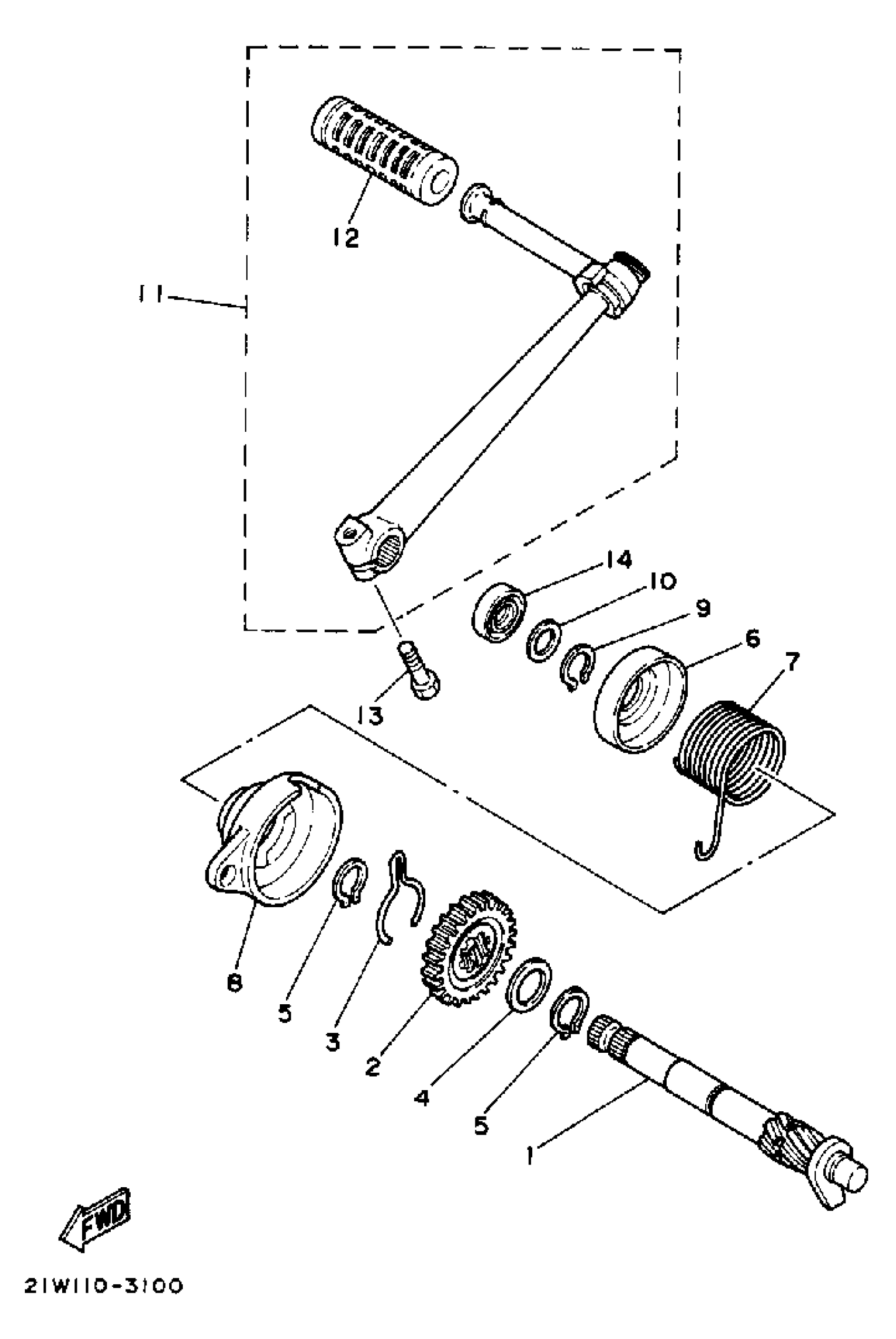

1988 Yamaha BIG Wheel (BW80U) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSY

3E5-15660-00-00

1
Out of stock

2

GEAR, KICK (21T)

3E5-15641-00-00

1
Out of stock

3

CLIP(4ES)

90468-23194-00

1

$7.91

In stock

4

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

5

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

6

COVER, SPRING

3E5-15676-00-00

1
Out of stock

7

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

8

GUIDE, SPRING

4BC-15664-00-00

1
Out of stock

9

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

10

WASHER (566)

90201-15701-00

1

$6.17

In stock

11

KICK CRANK ASSY

4BC-15620-00-00

1
Out of stock

12

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

13

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

14

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock
