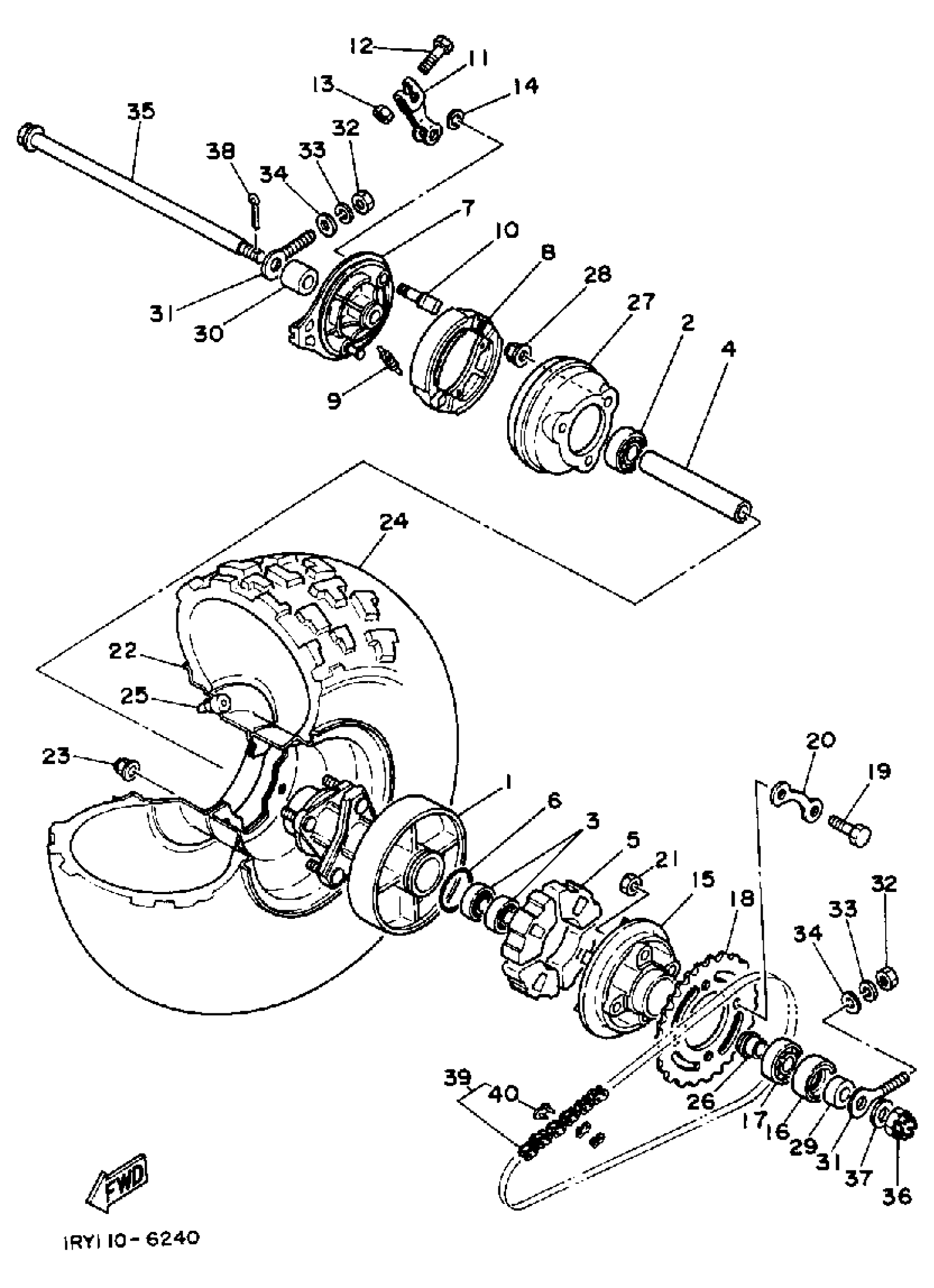

Yamaha BW80U (BIG WHEEL) 1988 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

1RY-25311-00-35

Unavailable

2

BEARING

93306-30212-00

$40.99

3

BEARING(3DL)

93306-20226-00

$38.99

4

COLLAR

90387-152N8-00

Unavailable

5

DAMPER, CLUTCH

304-25364-01-00

$27.99

6

O-RING (102)

93210-41041-00

$7.49

7

PLATE, BRAKE SHOE

(5X2-25321-00-35)

Unavailable

8

BRAKESHOE SET-2PCS

451-W2535-00-00

Unavailable

9

SPRING TENSION 451251330000

90506-14081-00

$8.49

10

CAMSHAFT

4N0-25151-00-00

Unavailable

11

LEVER, CAM SHAFT

122-25355-00-00

$30.99

12

BOLT, HEXAGON (538)

90101-06278-00

$2.17

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

WASHER PLATE 164185720000

90201-12166-00

$9.49

15

CLUTCH, HUB

296-25366-01-33

$68.99

16

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

17

BEARING(3BN)

93306-00438-00

Unavailable

18

SPROCKET, DRIVEN (32T)

4BC-25432-50-00

Unavailable

19

BOLT(1AJ)

90101-08672-00

Unavailable

20

WASHER

4AW-25412-00-00

Unavailable

21

NUT(3KX)

90179-08639-00

Unavailable

22

WHEEL, REAR

1RY-25390-10-35

Unavailable

23

NUT, SELF-LOCKING

90185-08169-00

Unavailable

24

AT18X8-7 KT587 T/L N (DURO)

2D3-2510K-19-00

Unavailable

25

VALVE, RIM (3AA1)

93900-00041-00

Unavailable

26

COLLAR

90387-152N7-00

Unavailable

27

DRUM BRAKE

1RY-2531E-00-00

Unavailable

28

NUT, SELF-LOCKING

90185-08169-00

Unavailable

29

COLLAR

90387-152N6-00

Unavailable

30

COLLAR 403253830100

90387-15423-00

Unavailable

31

PULLER, CHAIN 2

137-25389-00-00

Unavailable

32

NUT, HEXAGON

95380-06600-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

35

AXLE, WHEEL

1RY-25381-00-00

Unavailable

36

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

37

WASHER (525)

90201-15238-00

Unavailable

38

PIN, COTTER

91490-30030-00

Unavailable

39

CHAIN, DRIVE

9Y580-52089-00

Unavailable

40

JOINT, CHAIN (29A)

94680-52001-00

Unavailable
