FRONT FORK

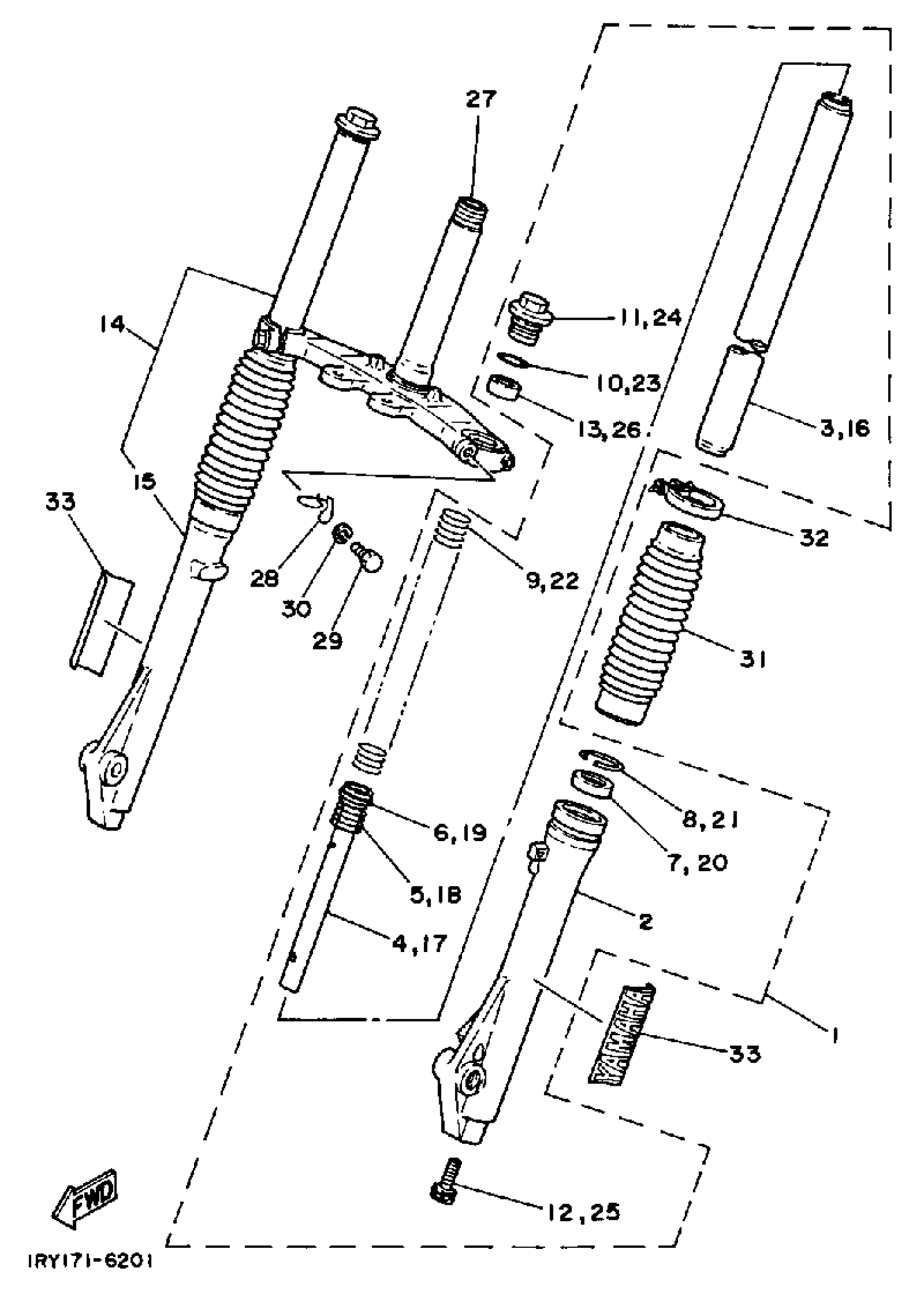

Yamaha BW80U (BIG WHEEL) 1988 FRONT FORK Diagram
#
Description
Price
1
FRT.FORK ASSEMBLY. L.H.
1RY-W2313-00-FH
Unavailable
1
FRONT FORK ASSEMBLY L
(1RY-W2313-00-NJ)
Unavailable
2
. TUBE, OUTER 1
1RY-23126-00-FH
Unavailable
2
. TUBE, OUTER 1
1RY-23126-00-NJ
Unavailable
3
. INNER TUBE 1
1RY-23110-00-00
Unavailable
4
CYLINDER COMP., FRONT FORK
3R0-23170-00-00
Unavailable
9
. SPRING, FRONT FORK
1RY-23141-00-00
Unavailable
11
BOLT, CAP
3M7-23111-01-00
Unavailable
14
FRT.FORK ASSEMBLY R.H.
1RY-W2314-00-FH
Unavailable
14
FRONT FORK ASSEMBLY R
(1RY-W2314-00-NJ)
Unavailable
15
. TUBE, OUTER 2
1RY-23136-00-FH
Unavailable
15
TUBE, OUTER 2
(1RY-23136-00-NJ)
Unavailable
16
. INNER TUBE 1
1RY-23110-00-00
Unavailable
17
CYLINDER COMP., FRONT FORK
3R0-23170-00-00
Unavailable
22
. SPRING, FRONT FORK
1RY-23141-00-00
Unavailable
24
BOLT, CAP
3M7-23111-01-00
Unavailable
27
UNDER BRACKET
1RY-23340-00-00
Unavailable
28
HOLDER, CABLE 1
(1RY-23318-00-00)
Unavailable
29
BOLT
451-23346-01-00
Unavailable
30
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
31
BOOT, FRONT FORK
1RY-23191-00-00
Unavailable
32
BAND
(1RY-23192-00-00)
Unavailable
33
EMBLEM, YAMAHA
99241-00120-00
Unavailable
