1988 Yamaha BIG Wheel (BW80U) Electrical Diagram

← All diagrams

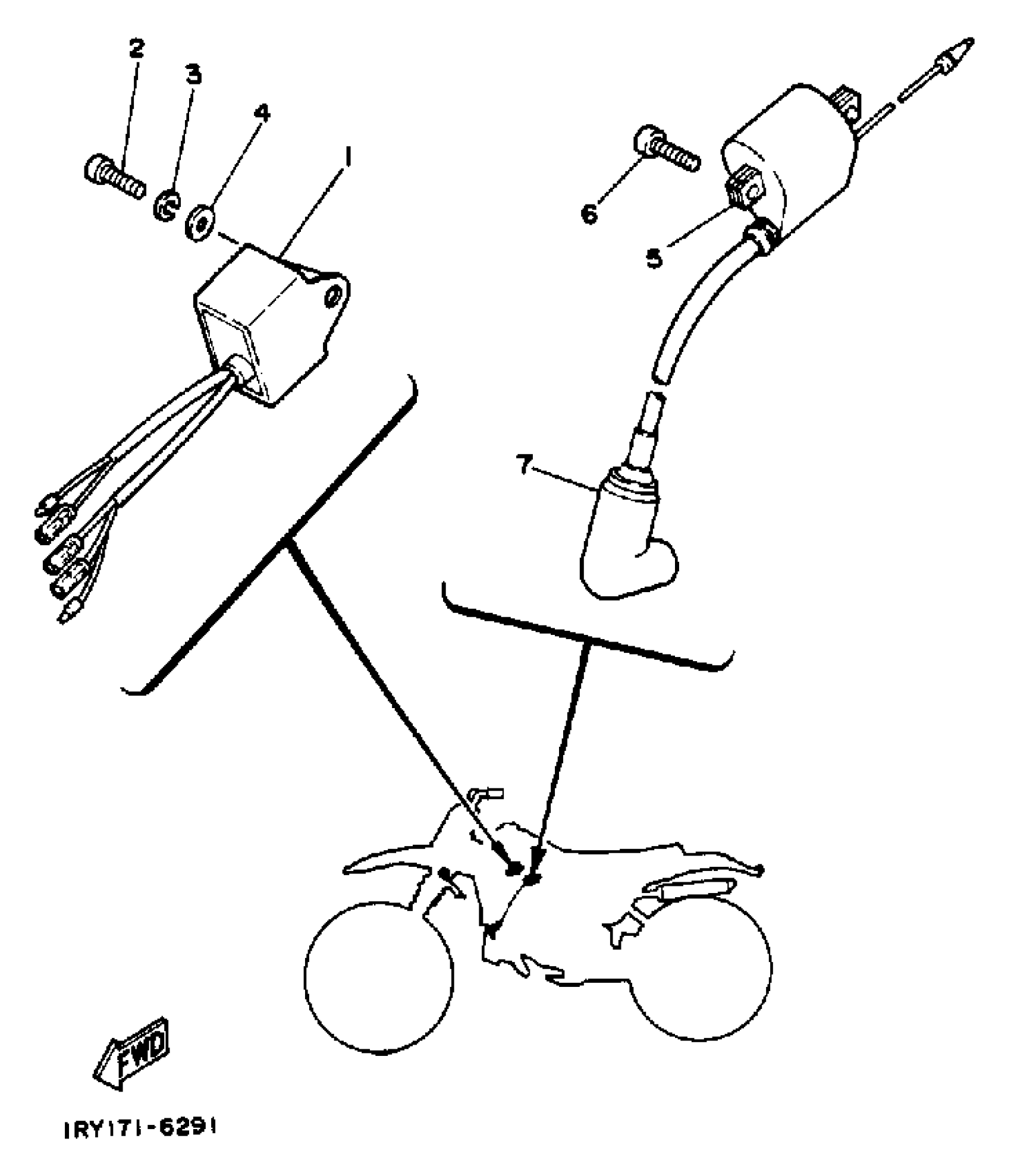

Find the part on the Electrical diagram for your 1988 Yamaha BIG Wheel (BW80U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha BIG Wheel (BW80U) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSY

21W-85540-20-00

1
Out of stock

2

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

IGNITION COIL ASSEMBLY

43G-82310-40-00

1
Out of stock

6

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

7

PLUG CAP ASSY

6G1-82370-21-00

1
Out of stock
← Swing ARM-Rear Shocks Generator →
