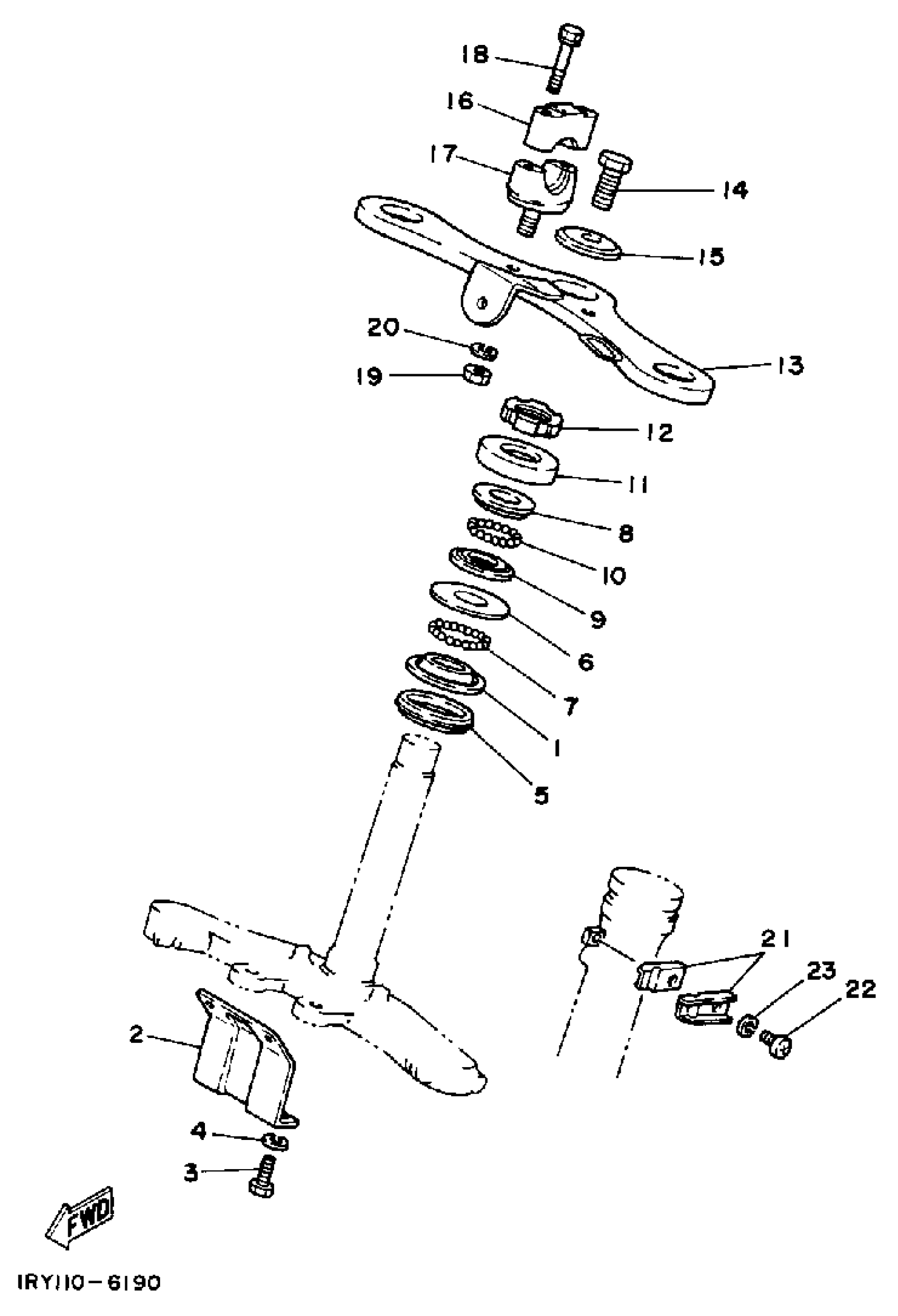

Yamaha BW80S (BIG WHEEL) 1986 STEERING Diagram
#
Description
Price
2
STAY, PLATE
21W-23486-00-00
Unavailable
4
WASHER, SPRING
92995-06100-00
Unavailable
13
CROWN, HANDLE
1RY-23435-00-98
Unavailable
16
HOLDER, HANDLE UPPER
462-23441-01-00
Unavailable
17
HOLDER, HANDLE UNDER
462-23442-00-98
Unavailable
18
BOLT(3RV)
97014-06035-00
Unavailable
19
NUT(3BM)
95314-10600-00
Unavailable
20
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
21
CLAMP (3R0)
90462-14055-00
Unavailable
22
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
