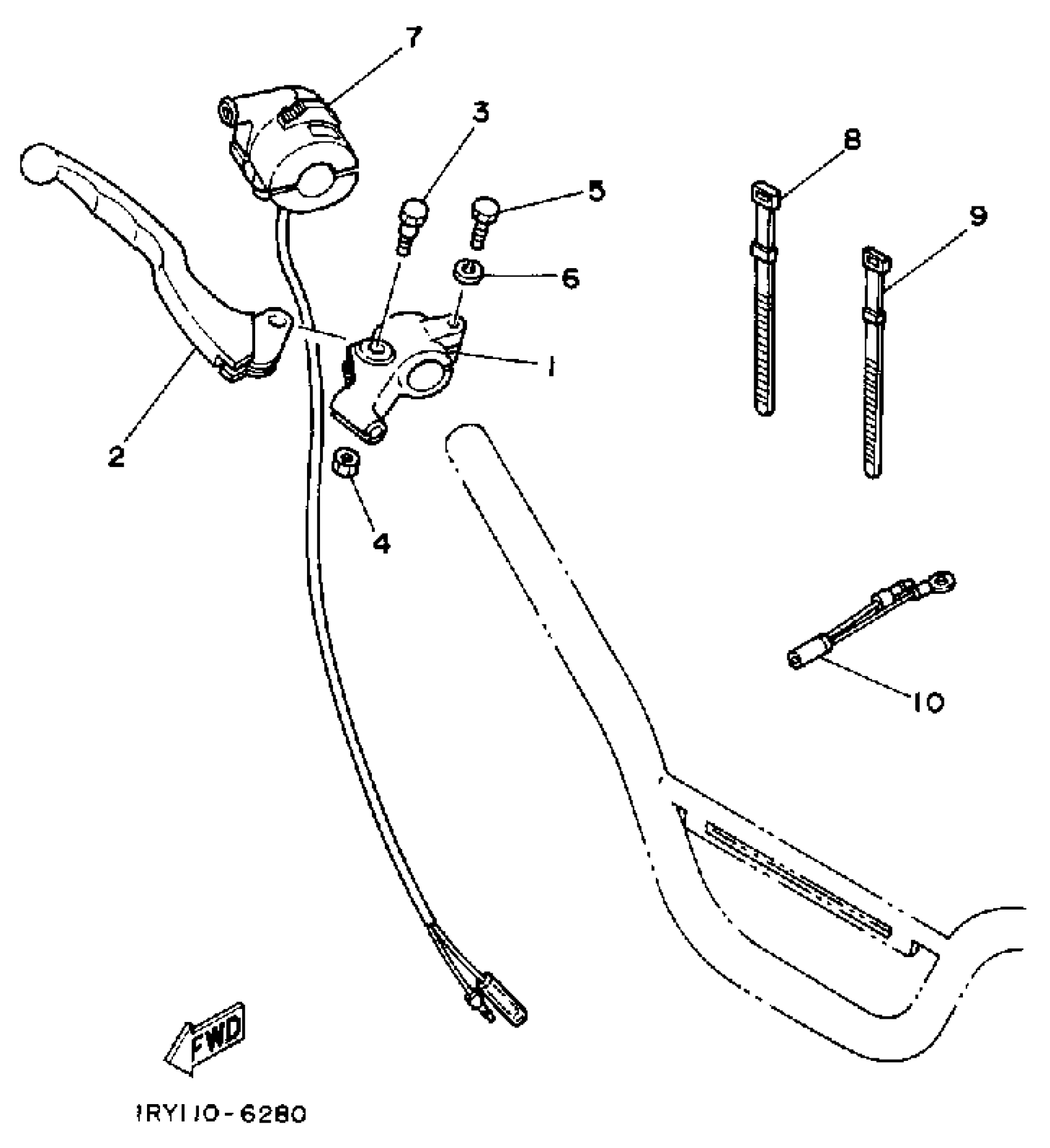

Yamaha BW80S (BIG WHEEL) 1986 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER (R.H)

233-82921-31-00

$56.23

2

LEVER R

23X-83922-01-00

$21.74

3

BOLT(3GB)

90109-061F3-00

$4.85

4

NUT, SELF-LOCKING

95617-06100-00

$2.32

5

BOLT, HEXAGON

97017-06020-00

$2.55

6

WASHER, SPRING

92995-06100-00

$2.87

7

SWITCH, HANDLE 1

21W-83976-00-00

$69.15

8

BAND, SWITCH CORD

437-83936-01-00

$4.63

9

BAND, SWITCH CORD

437-83936-11-00

$3.20

10

WIRE, EARTH LEAD

4V0-82519-00-00

$7.06
