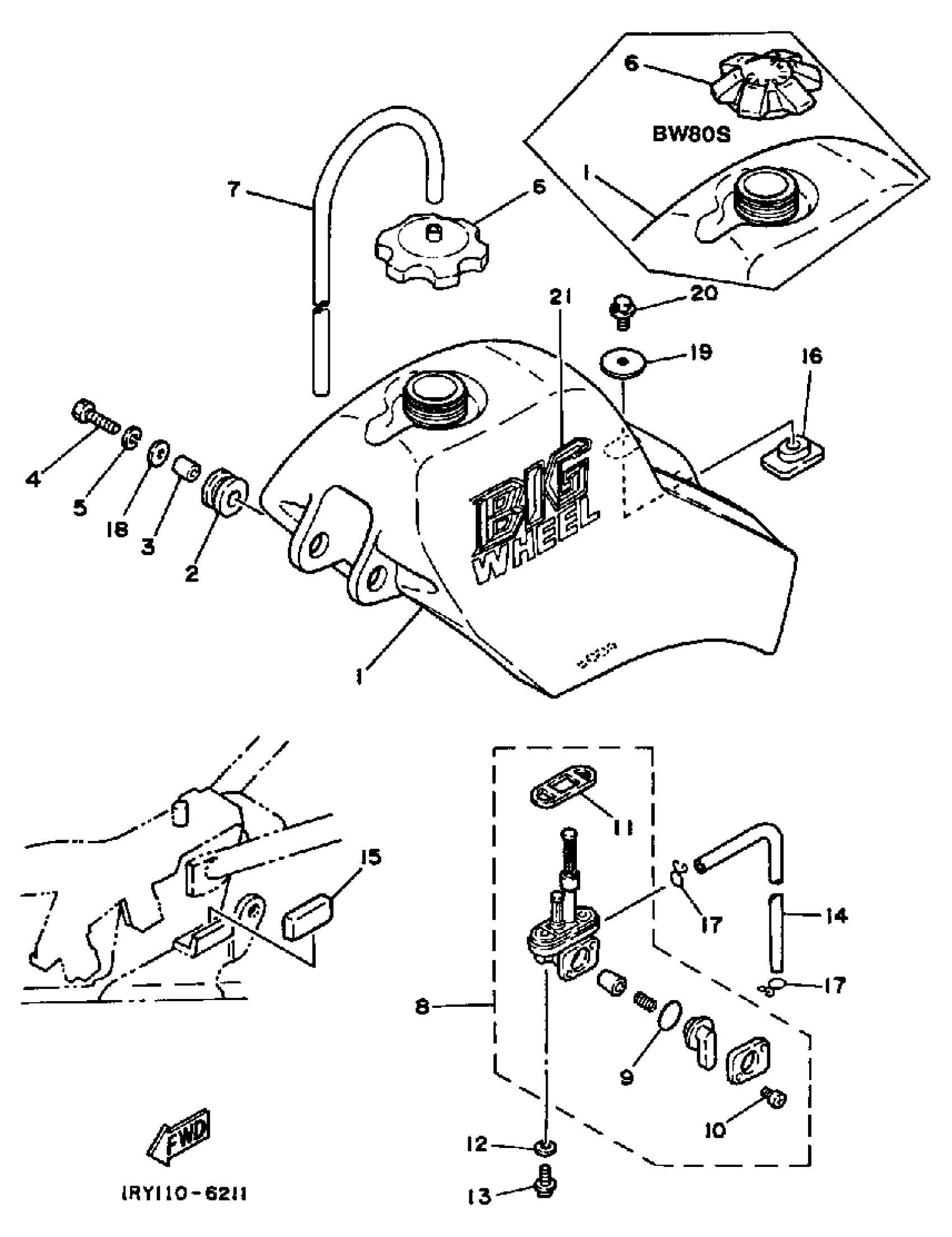

Yamaha BW80S (BIG WHEEL) 1986 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

1RY-24110-00-00

Unavailable

2

GROMMET (4V1)

90480-18290-00

$8.49

3

COLLAR (1T2)

90387-07598-00

$5.60

4

BOLT, HEXAGON

97017-06030-00

$3.61

5

WASHER, SPRING

92995-06100-00

Unavailable

6

CAP ASSY

2FG-24610-10-00

$64.99

6

CAP ASSY

4X4-24610-00-00

$57.99

7

HOSE (L420)

90445-092K1-00

$12.49

8

FUEL COCK ASSY 1

36R-24500-01-00

$76.99

9

O-RING

1A0-24512-00-00

Unavailable

10

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

11

GASKET, BODY

214-24512-00-00

$30.99

12

WASHER, PLATE(3MB)

90202-05187-00

$1.38

13

SCREW 256241430000

90149-06011-00

$5.60

14

HOSE (L420)

90445-092K1-00

$12.49

15

DAMPER, LOCATING 1

21W-24181-00-00

Unavailable

16

DAMPER, LOCATING

1A0-24181-00-00

Unavailable

17

CLIP 101235600

90467-08003-00

Unavailable

18

WASHER PLATE 137241870000

90201-06072-00

Unavailable

19

WASHER PLATE 248217570000

90201-06074-00

Unavailable

20

BOLT, FLANGE

95812-06010-00

Unavailable

21

GRAPHIC, FUEL TNK 7

(1RY-24254-02-00)

Unavailable

21

GRAPHIC, FUEL TANK7 (FIRE RED)

(1RY-24254-10-00)

Unavailable

21

GRAPHIC, FUEL TANK7 (SKY BLUE)

1RY-24254-20-00

Unavailable
