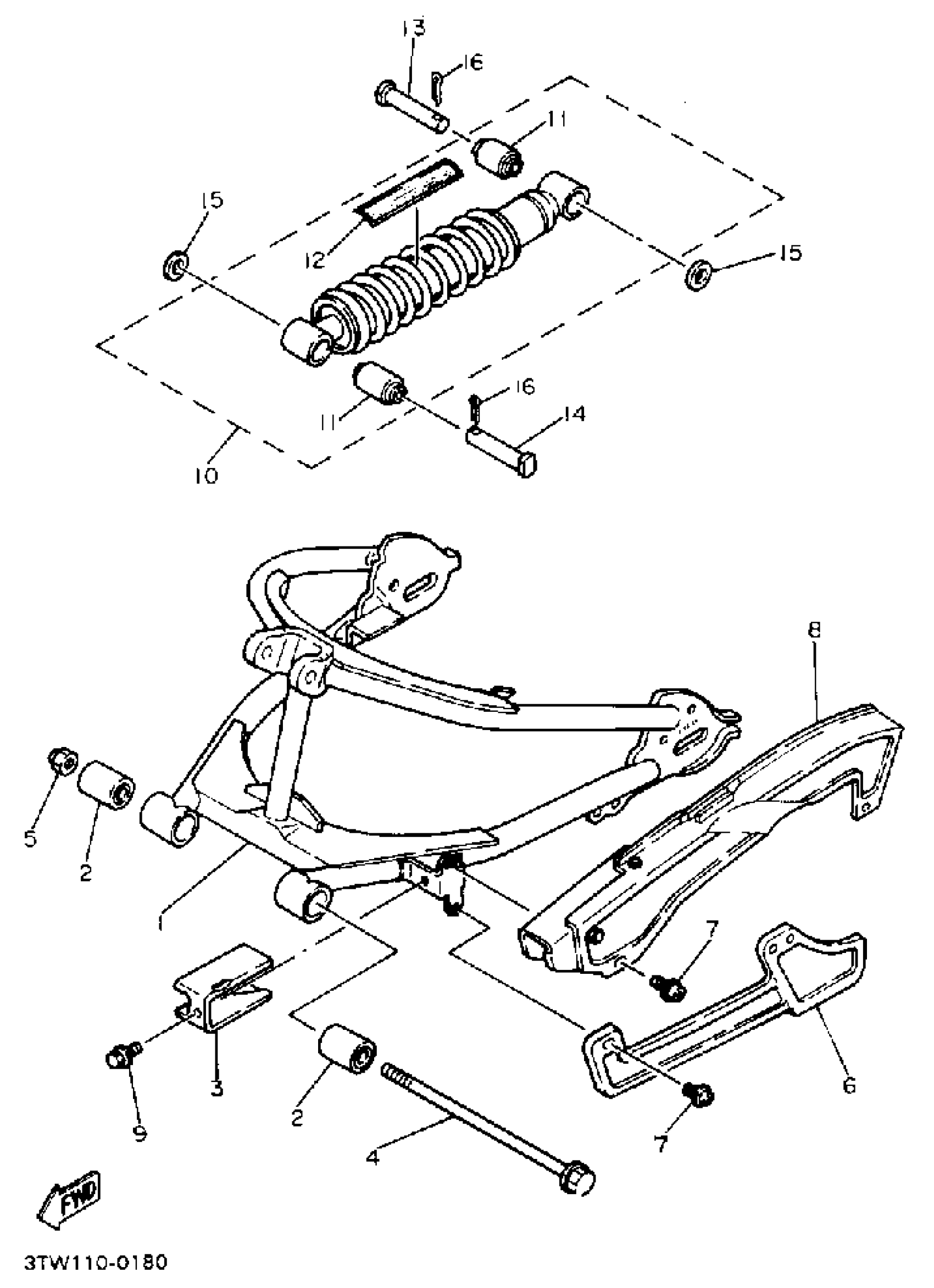

Yamaha BW80A (BIG WHEEL) 1990 SWING ARM - REAR SHOCKS Diagram

REAR ARM

1RY-22110-00-FH

Unavailable

BUSHING,REAR ARM

307-22123-00-00

$20.99

SEAL, GUARD

1RY-22151-00-00

Unavailable

BOLT, WASHER BASED (14A)

90105-12228-00

$19.99

NUT, U (4PM)

95617-12100-00

$4.16

SUPPORT, CHAIN

21W-22199-00-00

$32.99

SCREW, WITH WASHER(52W)

90159-05121-00

$4.15

CHAIN CASE ASSEMBLY

1RY-22310-00-00

Unavailable

BOLT, WITH WASHER(55K)

90119-06117-00

$4.29

SHK/ABS ASY,REAR

1RY-22210-01-6W

Unavailable

BUSHING

3M7-22216-00-00

$23.99

LABEL, WARNING

3VD-22259-00-00

Unavailable

PIN, CLEVIS (3R0)

90240-10072-00

$11.49

PIN, CLEVIS (3R0)

90240-10069-00

$11.49

WASHER, PLATE(56J)

90201-106H5-00

$10.49

PIN, COTTER

91490-25020-00

Unavailable
