1990 Yamaha BIG Wheel (BW80A) OIL Pump Diagram

← All diagrams

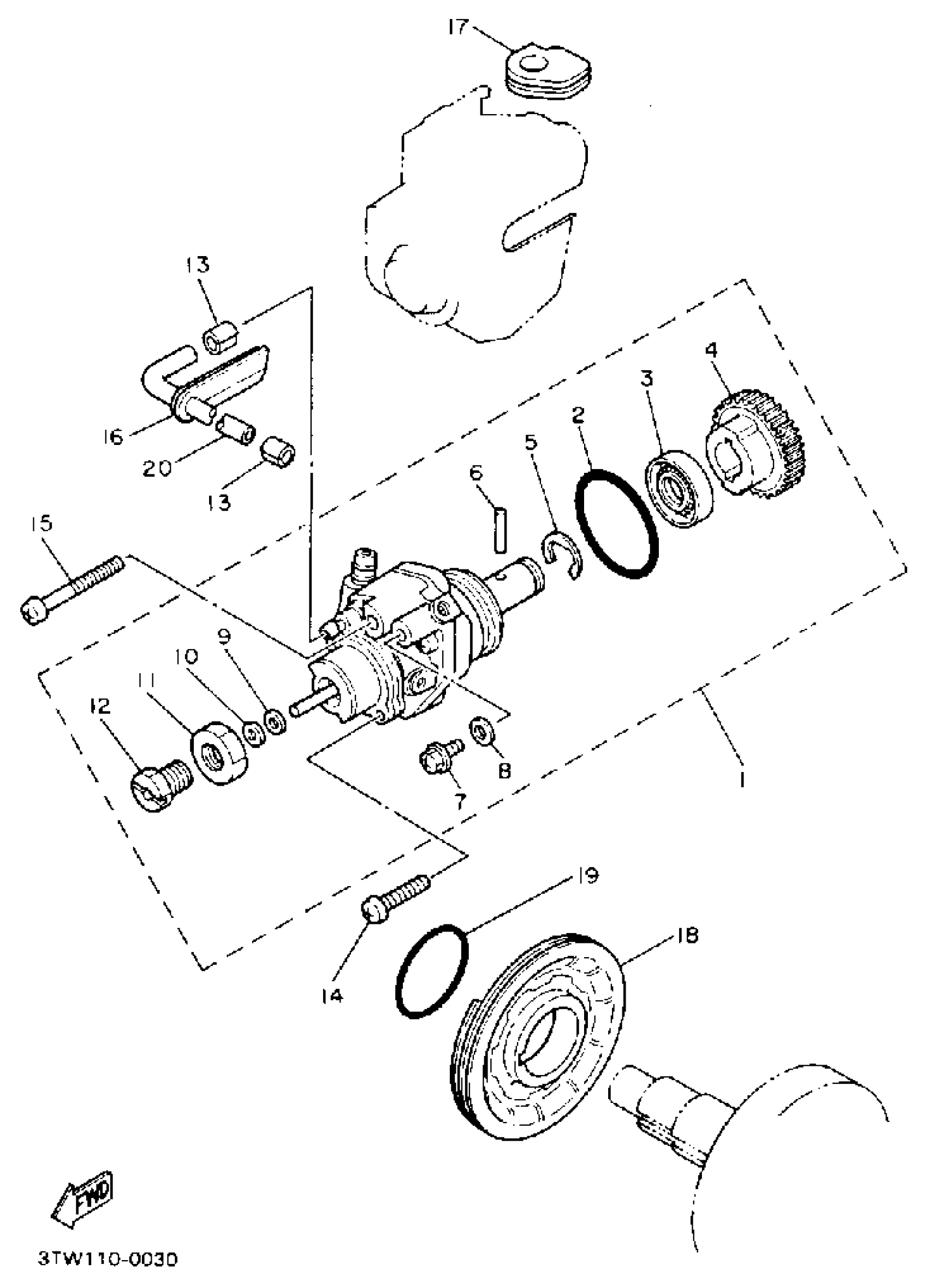

Find the part on the OIL Pump diagram for your 1990 Yamaha BIG Wheel (BW80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha BIG Wheel (BW80A) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

2T8-13101-01-00

—
Out of stock

2

O-RING

93210-26240-00

1

$6.82

In stock

3

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

4

GEAR, WORM WHEEL

2T5-13124-00-00

—
Out of stock

5

CIRCLIP

99080-07600-00

1

$2.89

In stock

6

PIN, DOWEL

93603-14026-00

1
Out of stock

7

SCREW (3L5)

90149-04135-00

1

$0.96

In stock

8

GASKET 137131870000

90430-04004-00

1
Out of stock

9

SHIM

296-13147-00-00

1
Out of stock

10

PLATE, ADJUSTING

384-13138-00-00

1

$5.32

In stock

11

NUT

90170-10105-00

—

$3.20

In stock

12

BOLT, UNION (527 CKD)

90401-10029-00

—

$6.77

In stock

13

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

14

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

15

SCREW, PAN

98507-05035-00

1

$6.69

In stock

16

GROMMET (384)

90480-10005-00

—
Out of stock

17

HOLDER, OIL PIPE

384-13174-00-00

—
Out of stock

18

GEAR, PUMP DRIVE

53F-13178-00-00

—
Out of stock

19

O-RING (498)

93210-29282-00

—
Out of stock

20

PIPE, DELIVERY 1

19E-13161-00-00

—
Out of stock
