1990 Yamaha Big Wheel (BW80A) Cylinder Diagram

← All diagrams

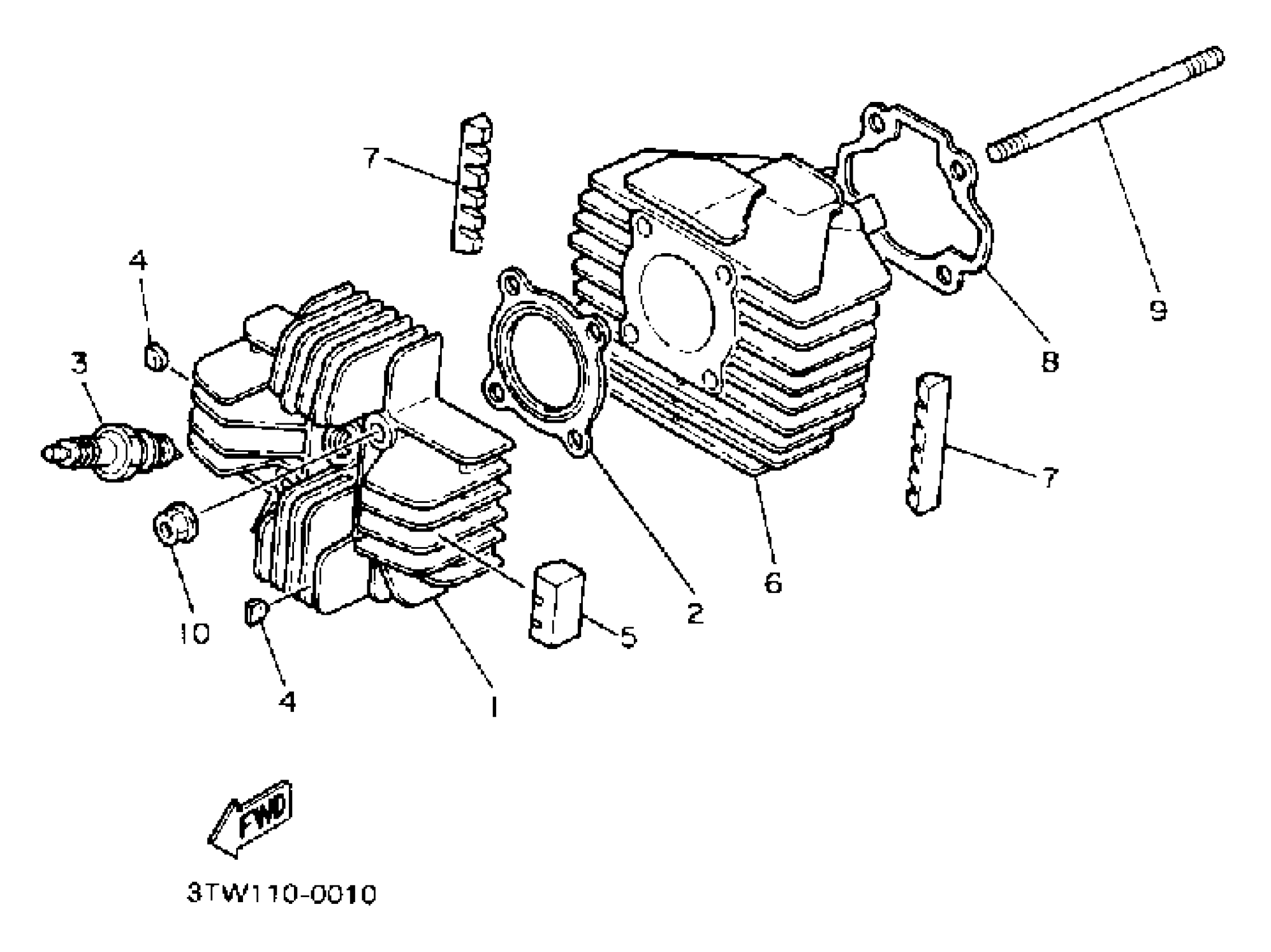

Find the part on the Cylinder diagram for your 1990 Yamaha Big Wheel (BW80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Big Wheel (BW80A) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

21W-11111-00-00

1
Out of stock

2

GASKET, CYLINDER HEAD

1W7-11181-00-00

1
Out of stock

3

BPR7HS NGK SPLUG 4PK

BPR-7HS00-00-00

1
Out of stock

4

ABSORBER

463-11161-01-00

1
Out of stock

5

ABSORBER 2

21W-11162-00-00

1
Out of stock

6

CYLINDER 1

18E-11311-00-00

1
Out of stock

7

ABSORBER

3E5-11162-00-00

1
Out of stock

8

GASKET, CYLINDER

4AW-11351-00-00

1
Out of stock

9

BOLT, STUD 1641136100

90116-07035-00

1
Out of stock

10

NUT, FLANGE (17L)

90179-07381-00

1
Out of stock
