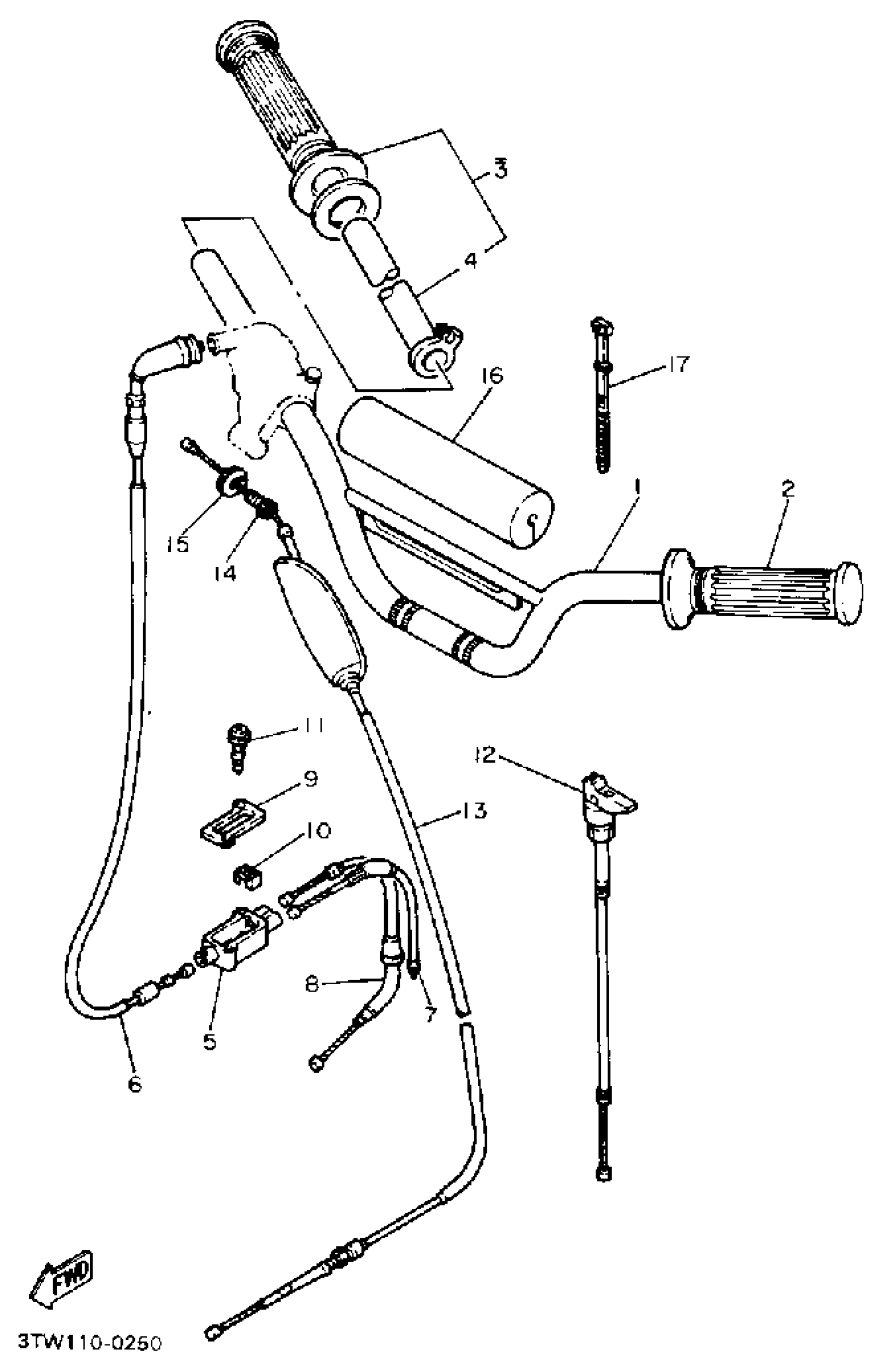

Yamaha BW80A (BIG WHEEL) 1990 HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR

21W-26111-02-00

Unavailable

2

GRIP

2N3-26241-01-00

$7.99

3

GRIP ASSY

21W-26240-01-00

$15.49

4

TUBE, THROTTLE GUIDE

434-26243-12-00

$27.99

5

CONNECTOR, CABLE

21W-26261-00-00

$35.99

6

CABLE, THROTTLE 1

21W-26311-02-00

$33.99

7

CABLE, THROTTLE 2

1RY-26312-00-00

Unavailable

8

CABLE, PUMP

1RY-26321-00-00

Unavailable

9

CAP, CABLE CONNECTOR

21W-26262-00-00

$30.99

10

PIECE, CONNECTING

21W-26263-00-00

$29.99

11

SCREW, TAPPING (3J0)

90167-03004-00

$10.49

12

CABLE, STARTER 1

1RY-26331-00-00

Unavailable

13

CABLE, BRAKE

21W-26341-01-00

$29.99

14

BOLT

90123-08002-00

$10.49

15

NUT

90179-08030-00

$5.49

16

PROTECTOR, HANDLEBAR

21W-26124-00-00

Unavailable

17

BAND, SWITCH CORD

437-83936-11-00

Unavailable
