1990 Yamaha BIG Wheel (BW80A) Handle Switch - Lever Diagram

← All diagrams

Find the part on the Handle Switch - Lever diagram for your 1990 Yamaha BIG Wheel (BW80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

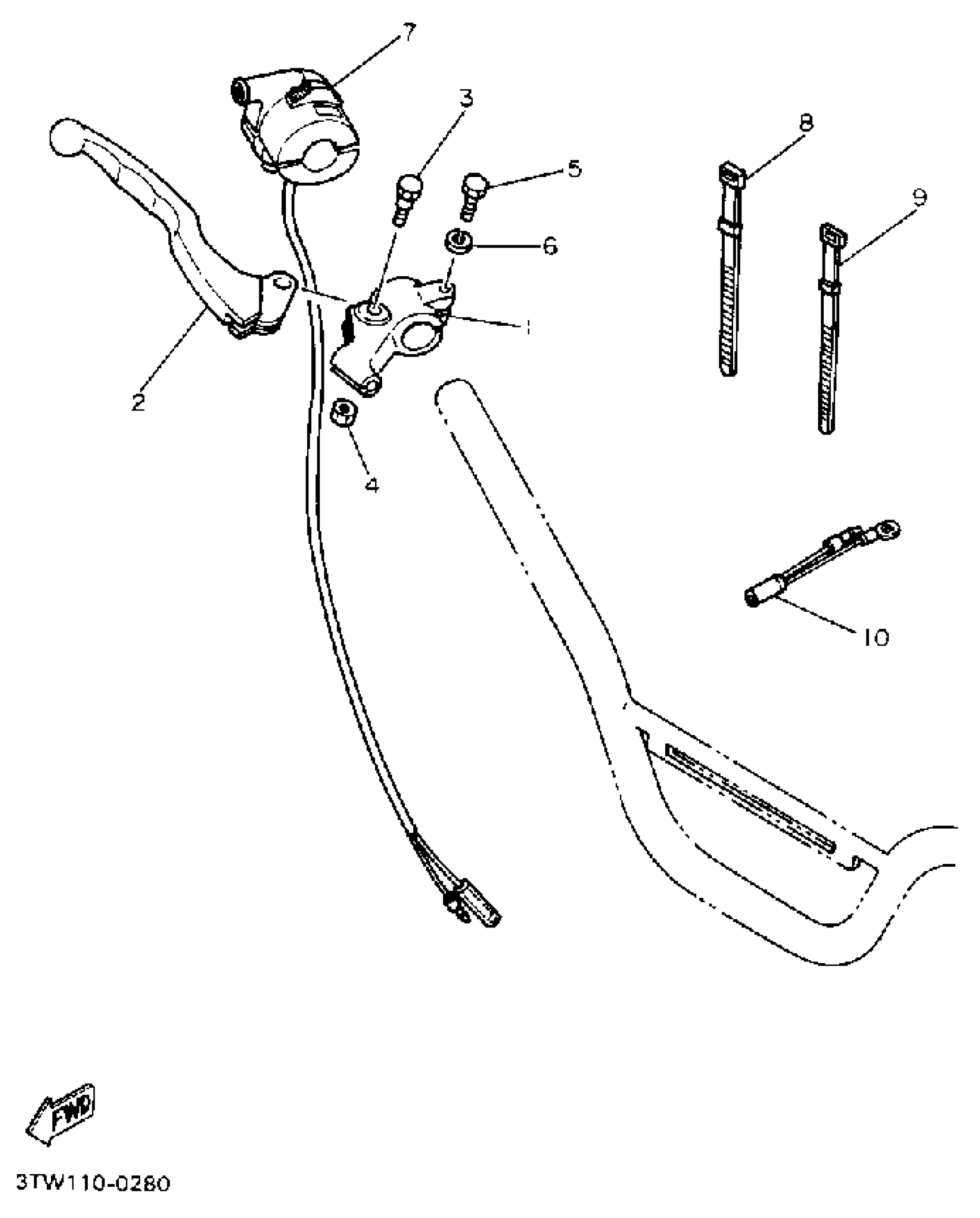

1990 Yamaha BIG Wheel (BW80A) Handle Switch - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

2

LEVER R

23X-83922-01-00

1

$21.74

In stock

3

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

4

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

SWITCH, HANDLE 1

21W-83976-00-00

1
Out of stock

8

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

9

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

10

WIRE, EARTH LEAD

4V0-82519-00-00

1
Out of stock
