1990 Yamaha BIG Wheel (BW80A) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1990 Yamaha BIG Wheel (BW80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

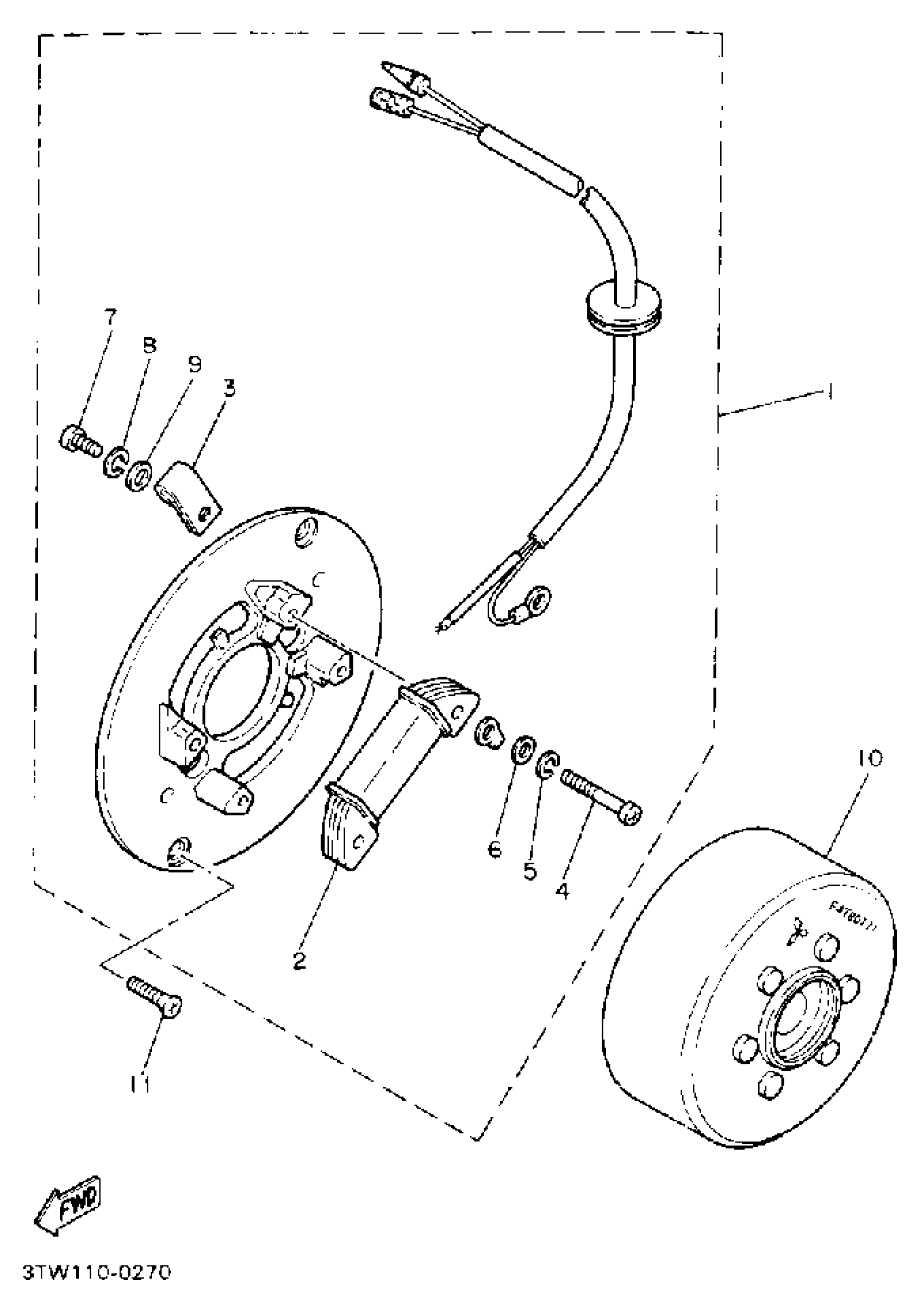

1990 Yamaha BIG Wheel (BW80A) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

1RY-85510-20-00

1
Out of stock

2

. COIL, SOURCE

1RY-85512-20-00

1
Out of stock

3

CLAMP, LEAD

104-81328-20-00

1

$6.31

In stock

4

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

7

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

9

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

10

ROTOR ASSEMBLY

21W-85550-20-00

1
Out of stock

11

SCREW, FLAT

98707-05016-00

1

$5.60

In stock
