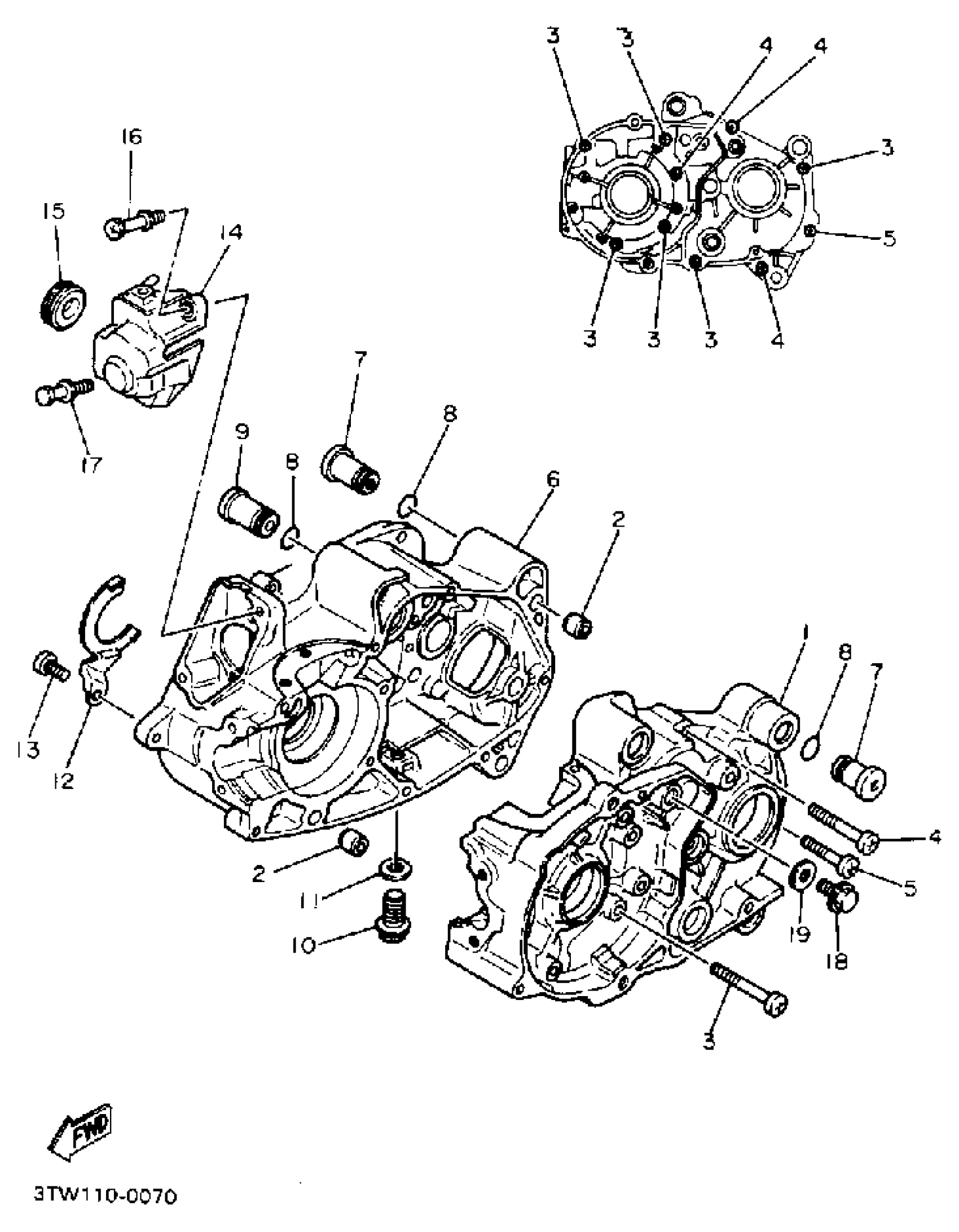

Yamaha BW80A (BIG WHEEL) 1990 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1(1W7-03

1W7-15111-09-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

SCREW PAN HEAD

98580-06550-00

$8.49

4

SCREW PAN HEAD

98580-06545-00

$5.60

5

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

6

CRANKCASE 2

1W7-15121-03-00

Unavailable

7

SPACER, ENG MOUNT

(1RY-15317-00-00)

Unavailable

8

O-RING(3LD)

93210-12790-00

$7.49

9

SPACER, ENGINE MNT.

(1RY-15327-00-00)

Unavailable

10

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

11

GASKET (3JD1)

90430-12207-00

$7.99

12

HOLDER

(300-15128-00-00)

Unavailable

13

SCREW, PAN

98507-08010-00

$8.49

14

COVER, OIL PUMP 1

517-15416-01-00

Unavailable

15

GROMMET(52W)

90480-21436-00

Unavailable

16

SCREW (4K5)

90149-06157-00

Unavailable

17

BOLT (517)

90101-06394-00

Unavailable

18

BOLT, WASHER BASED (7H3)

90105-10147-00

Unavailable

19

GASKET (5R6)

90430-10171-00

Unavailable
