SWING ARM

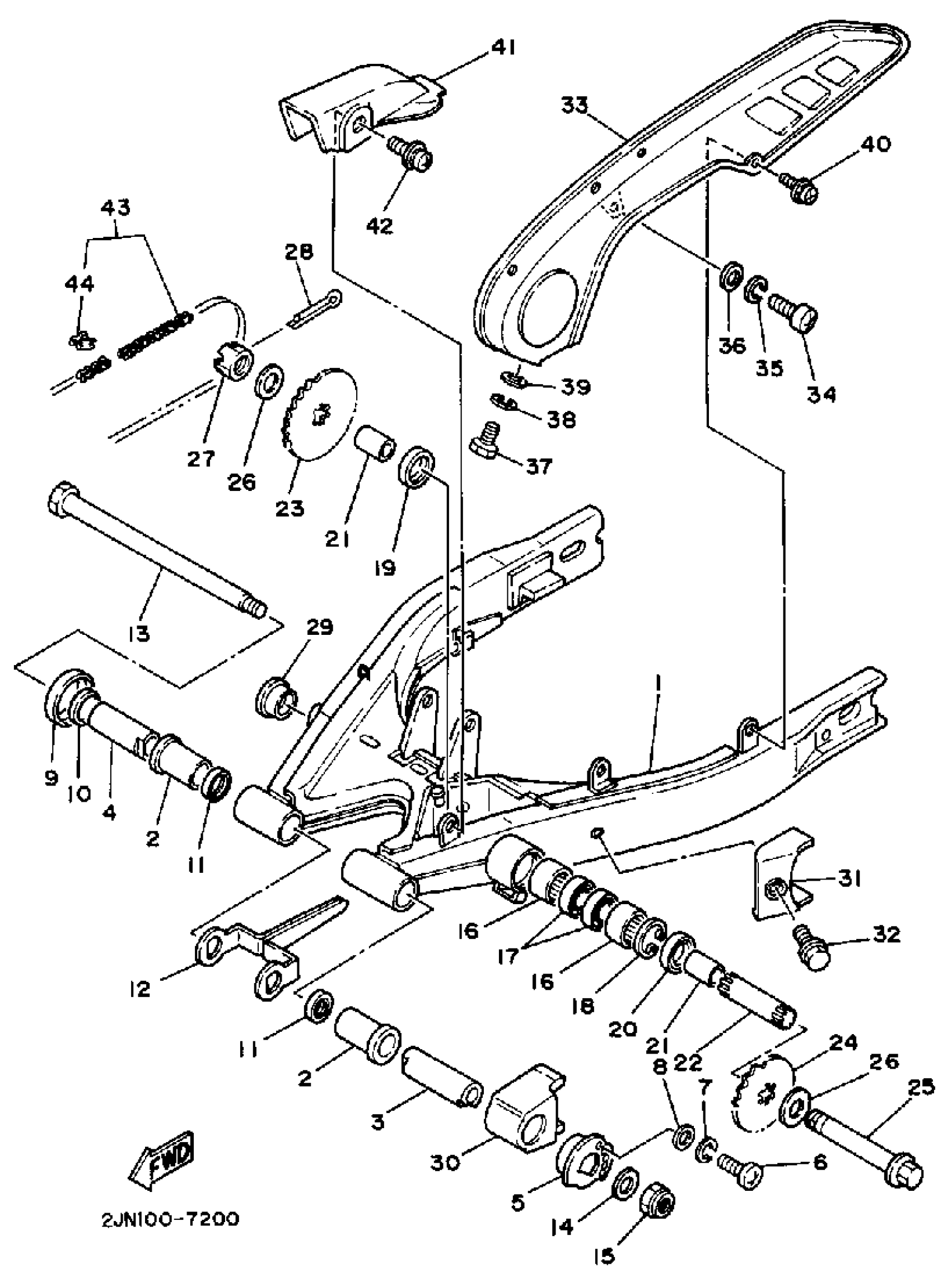

Yamaha BW350U (BIG WHEEL) 1988 SWING ARM Diagram
#
1
REAR ARM
2JN-22110-00-FH
Unavailable
2
BUSH, SOLID
90381-27064-00
Unavailable
3
BUSH 1
2JN-22123-00-00
Unavailable
4
BUSH 2
2JN-22124-00-00
Unavailable
5
COVER, THRUST 1
2JN-22128-00-00
Unavailable
9
COVER, THRUST 2
2JN-22129-00-00
Unavailable
10
SHIM
2JN-22127-00-00
Unavailable
11
OIL SEAL (2JN)
93109-27054-00
Unavailable
12
LEVER
2JN-2216H-00-00
Unavailable
13
SHAFT, PIVOT
2JN-22141-00-00
Unavailable
16
BEARING, CYLINDER.#17
93317-25658-00
Unavailable
17
BEARING(2JN)
93306-90403-00
Unavailable
18
CIRCLIP(2JN)
93420-37074-00
Unavailable
19
OIL SEAL (17L)
93102-25270-00
Unavailable
20
OIL SEAL(50M)
93102-25334-00
Unavailable
21
COLLAR
90387-207R9-00
Unavailable
22
SHAFT, PIVOT 2
2JN-2214H-00-00
Unavailable
23
SPROCKET, DRIVE
93852-17126-00
Unavailable
24
SPROCKET, DRIVE 13T
93832-13027-00
Unavailable
25
BOLT, WASHER BASED
90105-10504-00
Unavailable
26
WASHER, PLATE
90201-10144-00
Unavailable
27
NUT,CASTLE
90171-10049-00
Unavailable
28
PIN, COTTER(6L5)
91490-25030-00
Unavailable
29
COVER
1HX-2135F-10-00
Unavailable
30
SEAL, GUARD
2JN-22151-00-00
Unavailable
31
PORTECTOR, CHAIN
2JN-22147-00-00
Unavailable
32
BOLT, WITH WASHER (10V)
90119-06063-00
Unavailable
33
CHAIN CASE ASSEMBLY
2JN-22310-00-00
Unavailable
34
SCREW, PAN
98517-06012-00
Unavailable
36
WASHER(6TA)
92907-06600-00
Unavailable
37
BOLT, HEXAGON
97017-06012-00
Unavailable
39
WASHER(6TA)
92907-06600-00
Unavailable
40
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
41
CASE, CHAIN 2
2JN-22312-00-00
Unavailable
42
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
43
CHAIN
94581-34040-00
Unavailable
44
. JOINT, CHAIN
94681-34011-00
Unavailable
