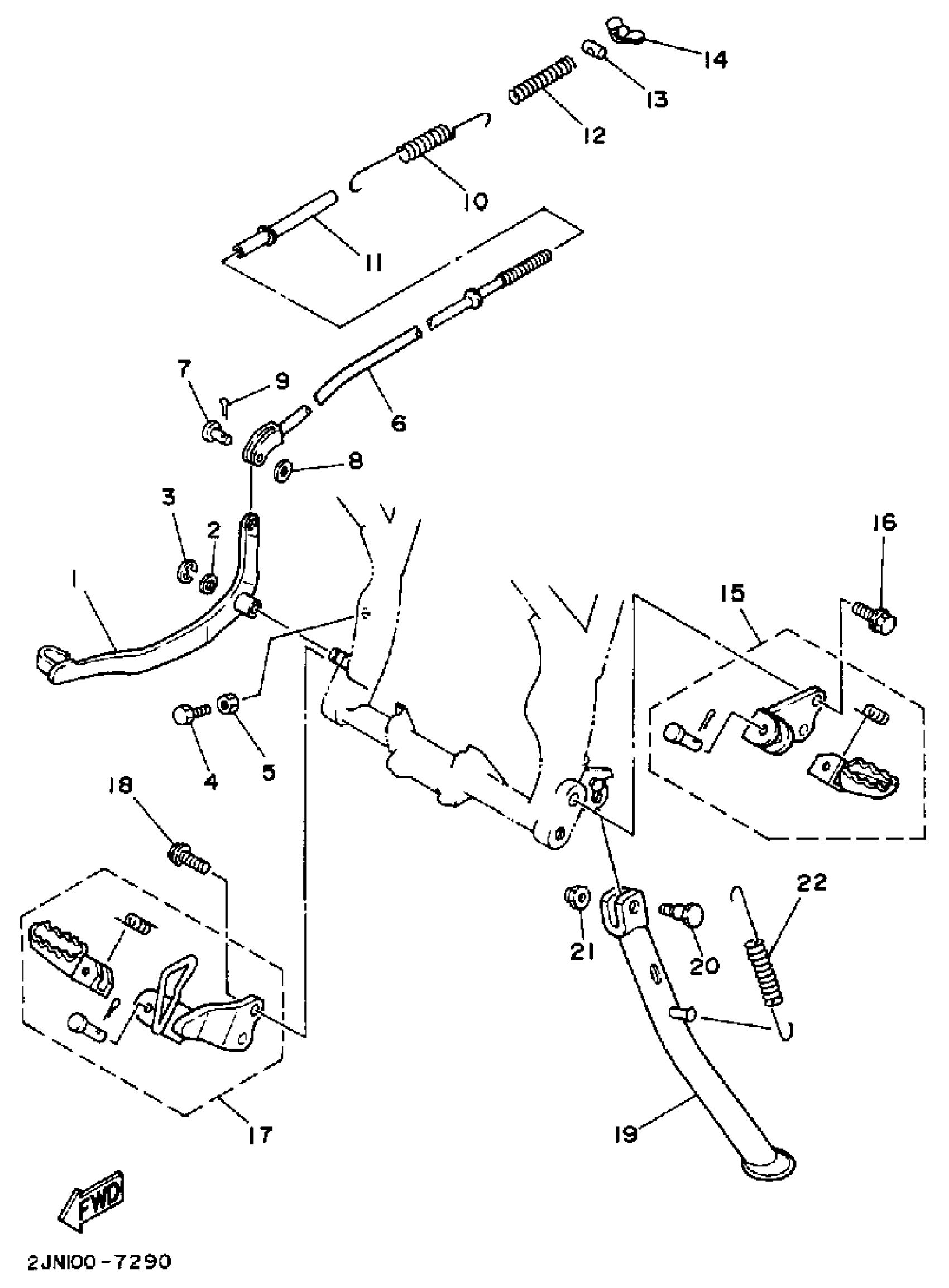

Yamaha BW350U (BIG WHEEL) 1988 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

2JN-27211-00-90

Unavailable

2

WASHER, PLATE (525)

90201-12541-00

$7.49

3

CIRCLIP (4V2)

93430-09038-00

$9.49

4

BOLT, HEXAGON

97017-06020-00

$4.06

5

NUT(650)

95380-06700-00

$8.49

6

ROD, BRAKE

2JN-27231-00-00

Unavailable

7

PIN, CLEVIS (24X)

90240-06103-00

$7.49

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

9

PIN, COTTER

91490-20025-00

$1.99

10

SPRING, TENSION

90506-18289-00

$14.99

11

UNAVAILABLE IN PRICE BOOK

1M1-27224-00-00

Unavailable

12

SPRING, (180-27236-00)

90501-10245-00

$8.49

13

PIN 1562723700

90249-12008-00

$8.49

14

NUT (25K)

90179-06411-00

$8.49

15

FRT FOOTREST ASSEMBLY L

2JN-27410-00-90

Unavailable

16

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

17

FRT FOOTREST ASSEMBLY R

2JN-27420-00-90

Unavailable

18

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

19

STAND, SIDE

2JN-27311-00-33

Unavailable

20

BOLT

90109-10473-00

Unavailable

21

NUT, U

90185-10037-00

Unavailable

22

SPRING, TENSION(36Y)

90506-29358-00

Unavailable
