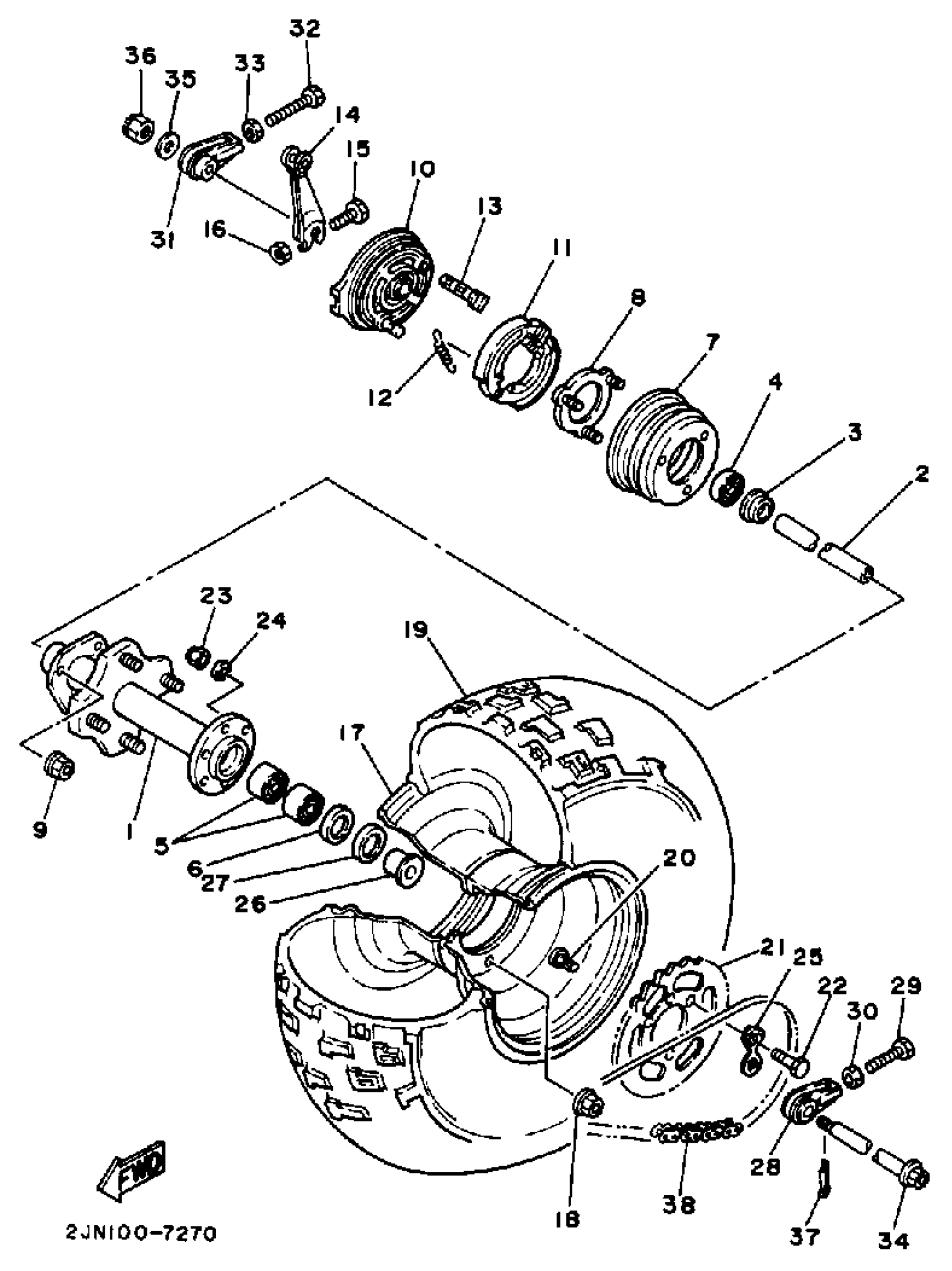

Yamaha BW350U (BIG WHEEL) 1988 REAR WHEEL Diagram

HUB, REAR

2JN-25311-00-91

Unavailable

COLLAR 54G

90387-173L2-00

Unavailable

FLANGE, SPACER

146-25315-00-00

$7.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

OIL SEAL(36R)

93102-25311-00

Unavailable

DRUM, BRAKE

5V7-2511E-00-35

Unavailable

RING 1

54G-25185-00-00

Unavailable

NUT (22U)

90179-08410-00

$9.49

PLATE, BRAKE SHOE

2JX-25321-02-35

Unavailable

BRAKE SHOE KIT

2JL-W253E-20-00

Unavailable

SPRING, TENSION

90506-15260-00

$8.49

CAMSHAFT

4GL-25351-00-00

$68.99

LEVER, CAMSHAFT

5R0-25355-10-00

Unavailable

BOLT, HEXAGON (538)

90101-06278-00

$2.17

NUT, HEXAGON

95380-06600-00

Unavailable

WHEEL,REAR

2HT-25390-00-35

Unavailable

UNAVAILABLE IN PRICE BOOK

91079-08410-00

Unavailable

DUN 23X11-9 KT647M (2.30, 12.00-9 KT647T/1)

94111-091R5-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

Unavailable

SPROCKET, DRVN 37T

2JN-25437-51-00

Unavailable

BOLT

90101-10670-00

Unavailable

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

WASHER PLATE (3L6)

90201-08759-00

Unavailable

UNAVAILABLE IN PRICE BOOK

1G8-15412-00-00

Unavailable

COLLAR

90387-177R8-00

Unavailable

COVER, HUB DUST

36R-25367-00-00

Unavailable

PULLER,CHAIN 2

12R-25389-00-00

Unavailable

BOLT

90101-08060-00

Unavailable

. NUT

95380-08700-00

Unavailable

PULLER, CHAIN 2

2JN-25389-00-00

Unavailable

BOLT

90101-08060-00

Unavailable

. NUT

95380-08700-00

Unavailable

UNAVAILABLE IN PRICE BOOK

2JN-25281-00-00

Unavailable

WASHER, PLATE (5X6)

90201-160F6-00

Unavailable

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

PIN, COTTER

91490-30030-00

Unavailable

DID 520 DS CHAIN

94585-20076-00

Unavailable
