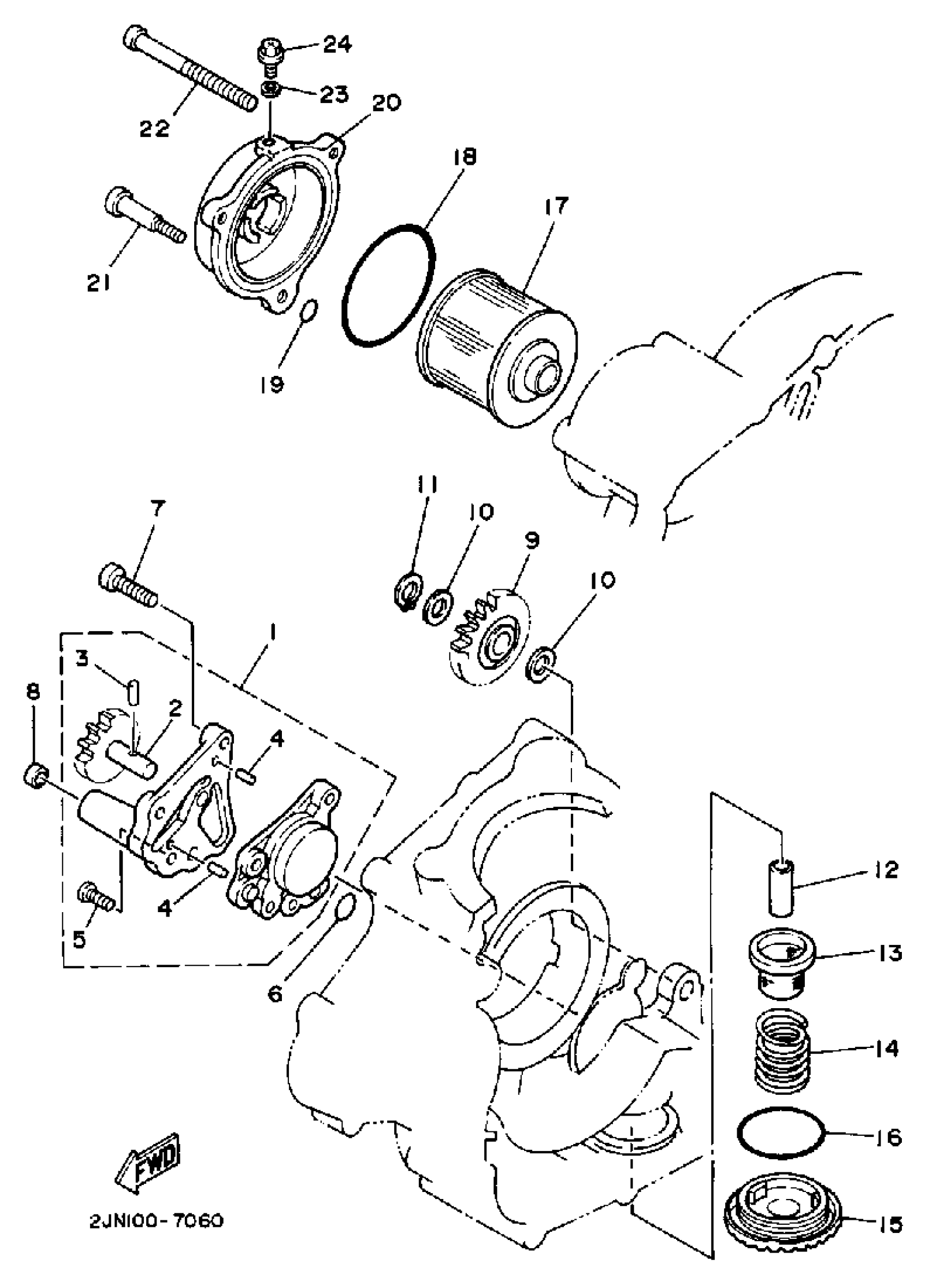

Yamaha BW350U (BIG WHEEL) 1988 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSEMBLY
2JN-13300-00-00
Unavailable
2
DRIVEN GEAR ASSEMBLY
(1RG-13360-00-00)
Unavailable
9
GEAR, OIL PUMP IDLE
1RG-13341-00-00
Unavailable
10
WASHER, PLAIN(735)
90201-10119-00
Unavailable
15
PLUG, DRAIN
3Y1-15351-01-00
Unavailable
16
O-RING(2HF)
93210-40745-00
Unavailable
17
ELEMENT ASSY, OIL CLEANER
4X7-13440-90-00
Unavailable
18
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
19
O-RING (583 OIL DRAIN BOLT)
93210-07135-00
Unavailable
20
COVER, OIL ELEMENT
2JN-13447-00-00
Unavailable
21
BOLT (583 OIL DRAIN)
90109-06419-00
Unavailable
22
SCREW, PAN
98507-06090-00
Unavailable
23
GASKET
90430-05126-00
Unavailable
24
SCREW (583)
90149-05110-00
Unavailable
