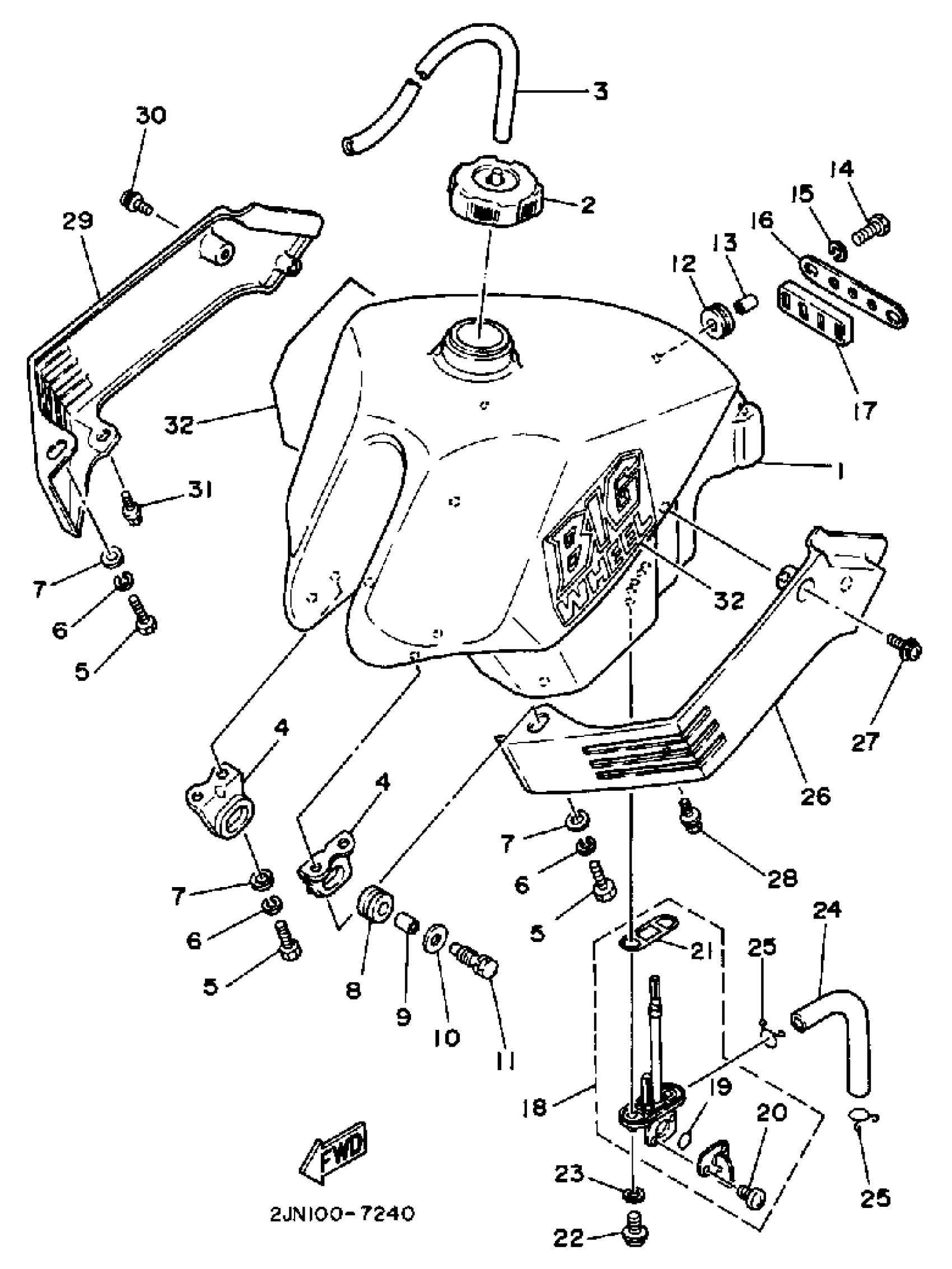

Yamaha BW350U (BIG WHEEL) 1988 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

2JN-24110-01-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

HOSE (L545)

90445-09361-00

Unavailable

4

STAY, FUEL TANK 1

2JN-24157-00-00

Unavailable

5

BOLT (661)

97013-06012-00

$5.60

6

WASHER, SPRING

92995-06100-00

Unavailable

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

GROMMET (4V1)

90480-18290-00

$8.49

9

COLLAR (1T2)

90387-07598-00

$5.60

10

WASHER PLATE 137241870000

90201-06072-00

$9.49

11

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

12

GROMMET (16R)

90480-14329-00

$8.49

13

COLLAR

90387-06113-00

$11.49

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

WASHER, SPRING

92995-06100-00

Unavailable

16

PLATE

(2JN-2413X-00-00)

Unavailable

17

DAMPER, LOCATING 2

364-24182-71-00

Unavailable

18

FUEL COCK ASSY 1

36R-24500-01-00

Unavailable

19

O-RING

4X8-24534-00-00

Unavailable

20

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

21

O-RING

4X8-24512-00-00

Unavailable

22

SCREW 256241430000

90149-06011-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

UNAVAILABLE IN PRICE BOOK

90455-10752-00

Unavailable

25

CLIP

90467-090A2-00

Unavailable

26

SCOOP, AIR 1

(2JN-2137W-00-00)

Unavailable

27

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

28

BOLT, WITH WASHER

90119-06152-00

Unavailable

29

SCOOP, AIR 2

(2JN-2137X-00-00)

Unavailable

30

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

31

BOLT, WITH WASHER

90119-06152-00

Unavailable

32

GRAPHIC, FUEL TNK 7

2JN-24254-10-00

Unavailable
