- BW350U (BIG WHEEL) 1988
FRONT FORK

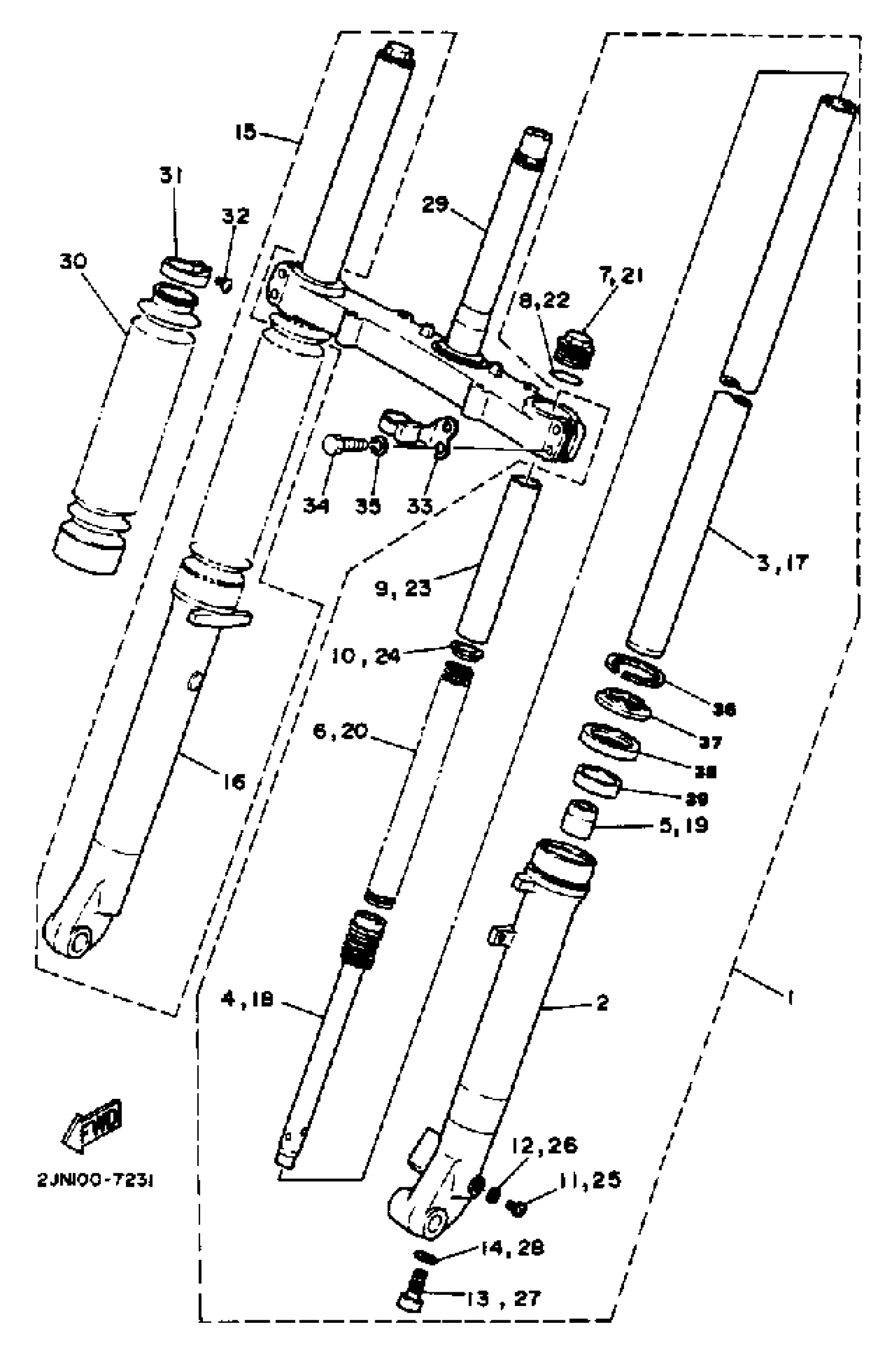

Yamaha BW350U (BIG WHEEL) 1988 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
2JN-23102-00-00
Unavailable
2
TUBE, OUTER 1
(2JN-23126-00-35)
Unavailable
3
. INNER TUBE COMP 1
2JN-23110-00-00
Unavailable
4
. CYLINDER COMP, FRONT FORK
54G-23170-00-00
Unavailable
5
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
6
. SPRING, FRONT FORK
2JN-23141-00-00
Unavailable
9
SPACER
5N8-23118-00-00
Unavailable
10
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
11
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
15
FRONT FORK ASSEMBLY R
(2JN-23103-00-00)
Unavailable
16
TUBE, OUTER 2
(2JN-23136-00-35)
Unavailable
17
. INNER TUBE COMP 1
2JN-23110-00-00
Unavailable
18
. CYLINDER COMP, FRONT FORK
54G-23170-00-00
Unavailable
19
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
20
. SPRING, FRONT FORK
2JN-23141-00-00
Unavailable
23
SPACER
5N8-23118-00-00
Unavailable
24
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
25
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
29
UNDER BRACKET COMP
2JN-23340-00-98
Unavailable
30
BOOT
54G-23191-00-00
Unavailable
31
BAND, BOOT
2K5-23192-00-00
Unavailable
32
SCREW, BOOT BAND
1W4-23194-L0-00
Unavailable
33
GUIDE, WIRE
3R4-23389-00-00
Unavailable
34
BOLT
97013-08035-00
Unavailable
35
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
36
RING, SNAP
22W-23153-L0-00
Unavailable
37
SEAL, DUST
54G-23144-00-00
Unavailable
38
OIL SEAL
22W-23145-L0-00
Unavailable
39
METAL, SLIDE 1
51Y-23125-00-00
Unavailable
